STONE 3.5",4.3",5",5.6",7",8",10.1",10.4 inch HMI Smart LCD Display Module with Program Touch Screen for Equipment Control Panel

LCD Modules>>>Electronic Components & Supplies

Brand Name STONE

Origin CN(Origin)

Model Number STWI

Resolution 128*64

Type TFT

Display Mode 500:1

is_customized Yes

Colors 262K

CPU 1G Hz Cortex A8

Interface RS232/RS422/RS485/TTL

Touch Panel 4-wire resistance

Flash Memory 256M

Working Voltage 5-28V

Size 3.5-15 Inch Available

LCD Class A

Color

3.5 Inch

4.3 Inch

5 Inch

5.6 Inch

7 inch

8 Inch

10.1 Inch

10.4 Inch

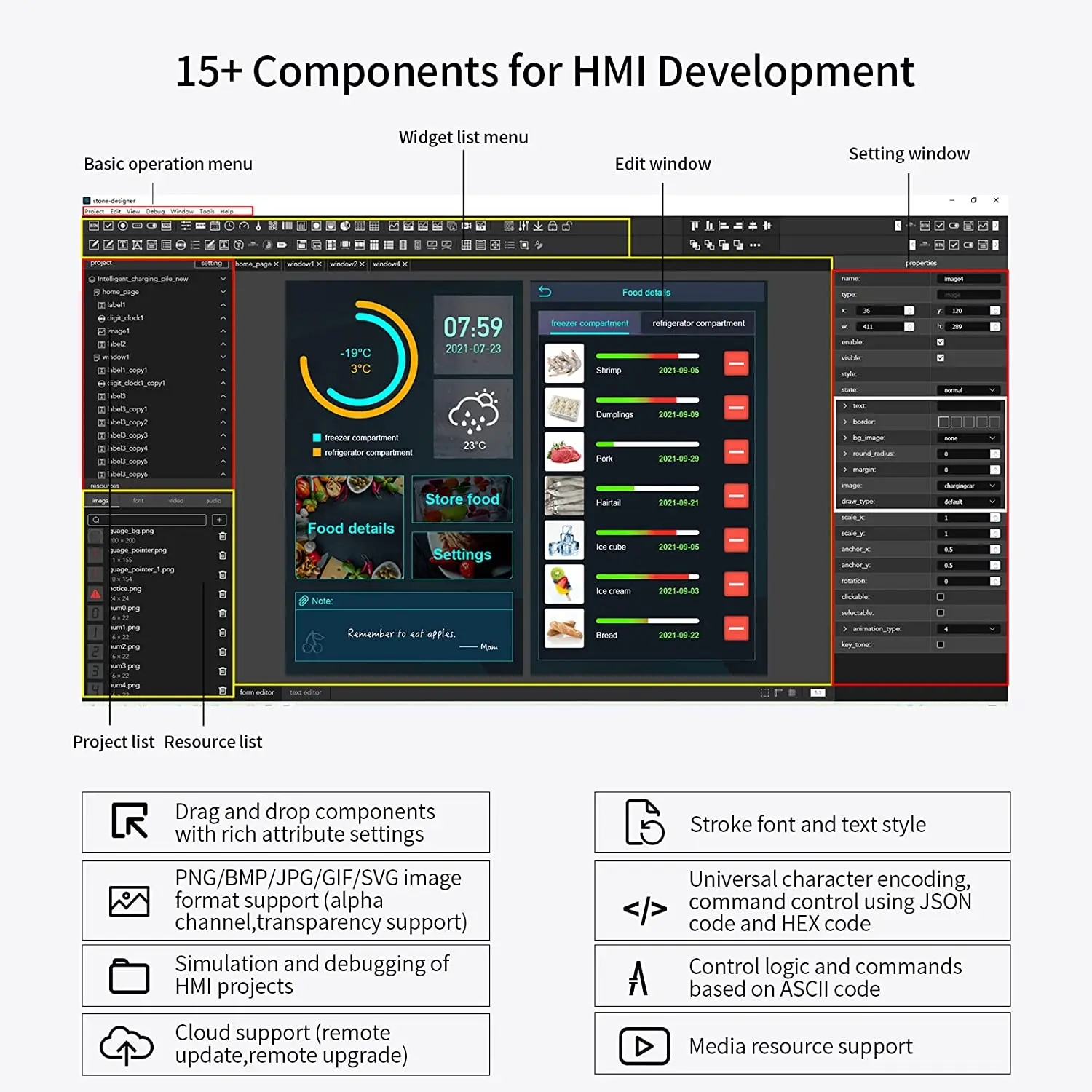

» Drag-and-drop components with rich property

» PNG/BMP/JPG/GIF/SVG image format support

   (alpha channel, transparency support)

» Simulation and debugging of HMI projects

» Cloud support (remote updates, remote upgrades)

                  » Vector fonts and text styles

                  » Generic character encoding, command control

                      using JSON code and HEX code

                  » ASCII-based control logic and commands

                  » Media resource support

black advanced motherboard

PCB thickness and color: thickness 2.0mm more reliable,advanced sunken gold process, in line with ROHS, industrial motherboard level materials.

STONE Designer is compatiblewith multiple operating systems

Support cross-platform, support Windows, macOS, Linux operating systems.

Working temperature:industrial-grade -30 ° C / +80 ° C

High strength to adapt to the environment,-30° low-temperature normal operation,80° high-temperature normal operationhigh strength to adapt to the working environmentso that you work production worry-free.

HD display fine natural

The 3.5-inch Display Module screen adopts the original screen imported from Qunar.Color 18 bit (262K), TTF format vector font,saturated color Even display brightness, fine screenTo present you with a higher quality visual experience.

operating principle

STONE Smart TFT-LCD module communicates with the customer’s MCU/CPU/FPGA/PLC.It communicates with the customer’s MCU/CPU/FPGA/PLC through commands (JSON commands and HEX codes),and the MCU will control the work of its connected devices according to the commands received.

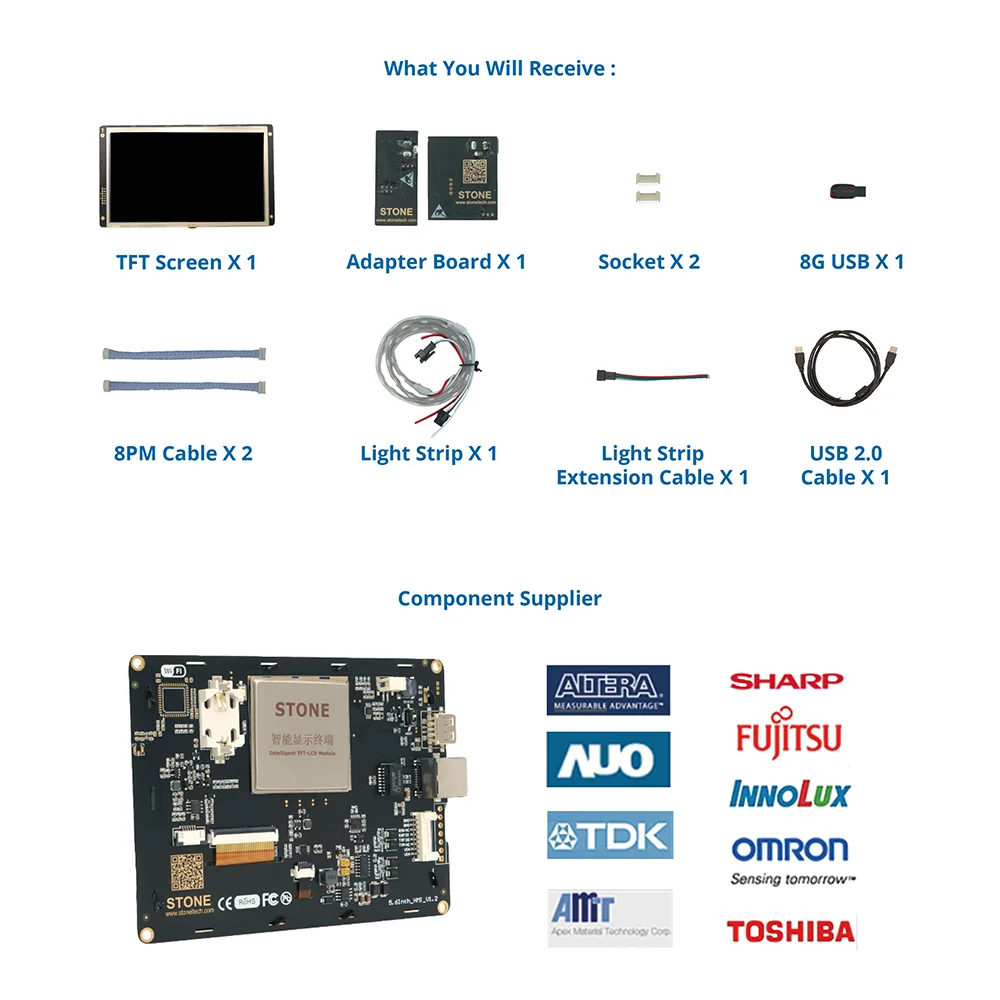

Accessories

Certification and documentation

Data Sheet

Instruction Set

Editor’s Guide

CE Certification

ROHS certification
