RFID Copier Duplicator 125KHz Key fob NFC Smart Card Reader Writer 13.56MHz Encrypted Programmer USB UID T5577 EM4305 Cards Tags

Control Card Readers>>>Security & Protection

Brand Name OBO HANDS

Origin CN(Origin)

Model Number NS106

Type ID

Interface USB

Certification NONE

Type RFID NFC Copier IC/ID Reader/Writer Duplicator

Material ABS

Card Type Support IC/ID dual frequency replication

Working frequency 125KHz, 13.56MHz

Support Read and Write

Provide free software Yes

Has a USB cabel Yes

Type1 RFID Copier

Type2 RFID Duplicator

Type3 RFID Programmer

Type4 RFID Card reader

Type5 RFID Writer

Type6 RFID Reader Writer

Color

125KHz / 13.56MHz Frequency NFC Smart Card Reader Writer

RFID Copier / RFID Reader / RFID Writer / RFID Duplicator

Product Features

1) Compliant with CCID

2) Compliant with PC/SC

3) Support IC/ID dual frequency replication

4) Driver-free, no need to download software installation

5) When connect the RFID Reader to the computer with the USB cable, then can find the software.

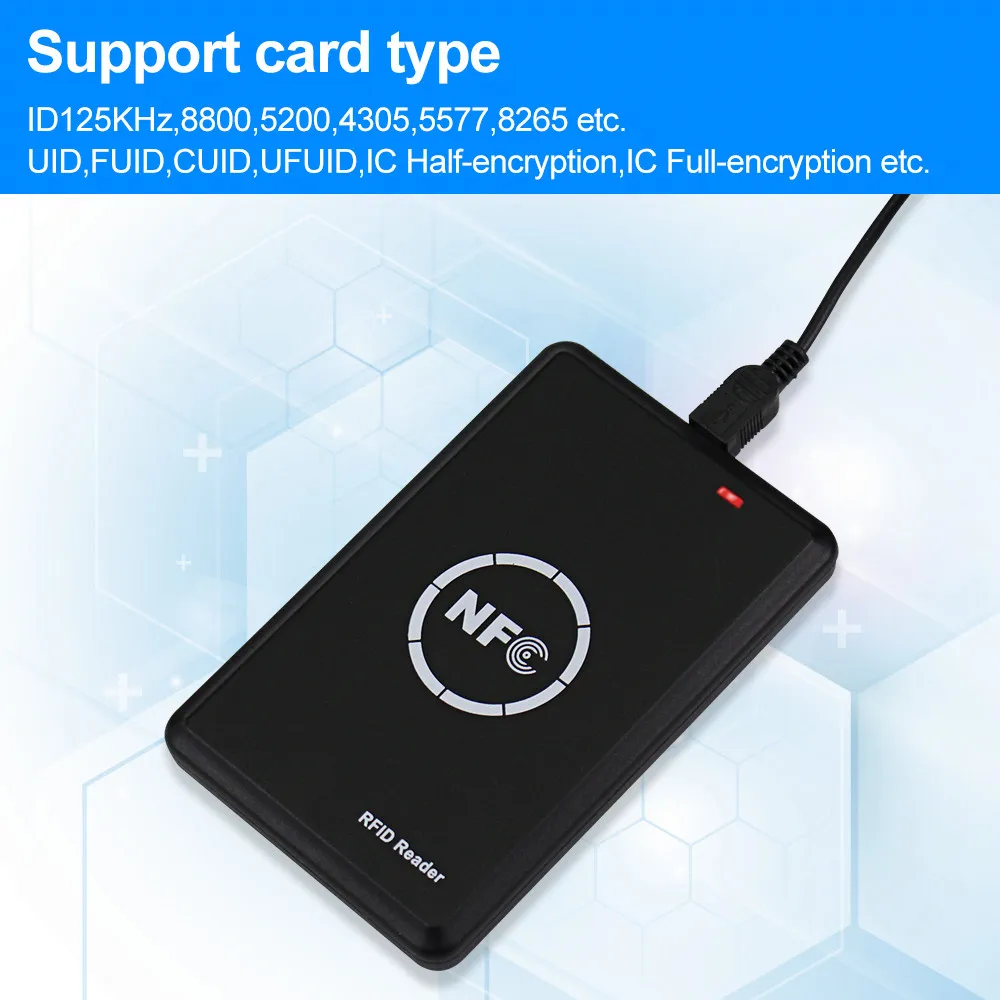

6) Support ID125K, 8800, 5200, 4305, 5577, 8265 card.

7) Support UID FUID CUID UFUID IC semi-encrypted card, IC full encryption card.

8) Has USB full speed interface

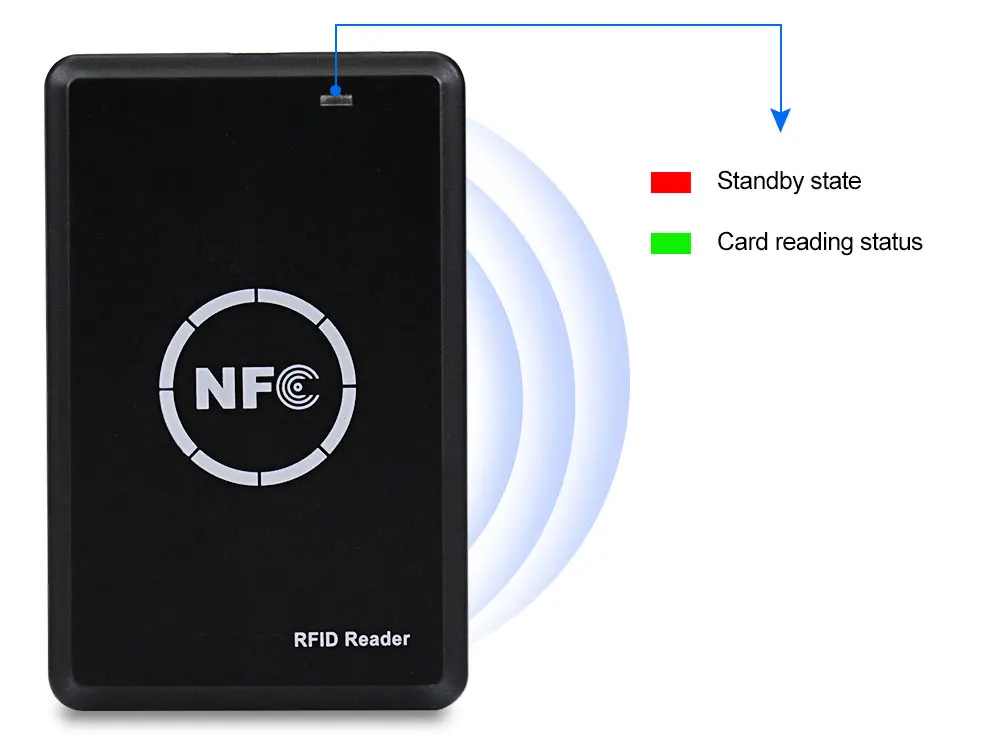

9) Two-color LED light prompt (red light is standby, green is working)

10) Built-in buzzer "beep" sound reminder

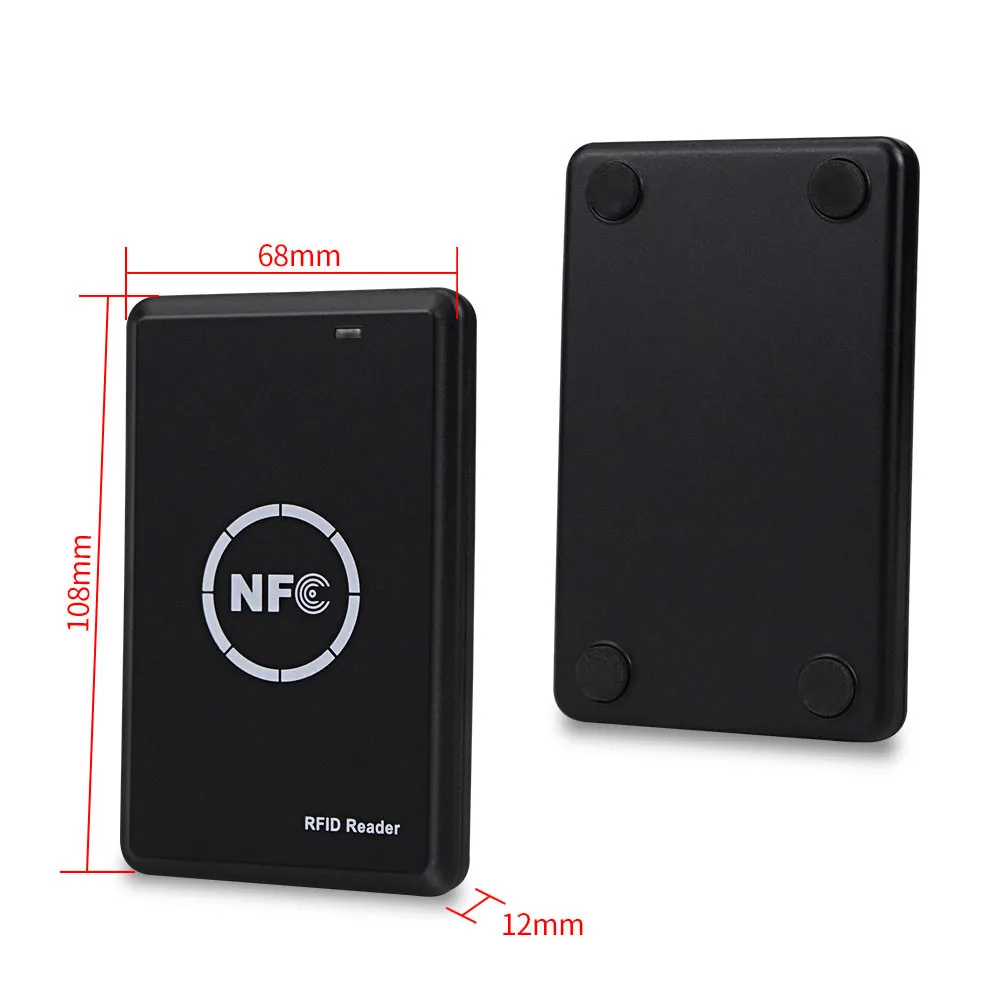

Product Parameters:Dimensions: 108 (L) X 68 (W) X 12 mm (H)Interface: USB full speedWorking Voltage: 5 V DCWorking current: 200mAStandby current: 50mANormal current: 100mAWorking frequency: 125KHz / 13.56 MHzSmart card support: for 125KHz ID type: EM4100, TK4100, 8800, 5200, EM4305, T5577, 8265 etc.For 13.56MHz IC type: UID FUID CUID UFUID IC Half-encryption, IC Full-encryption etc.Supported operating systems: SupportWindows computer. Not support Linux, Mac.

How to use the card reader?

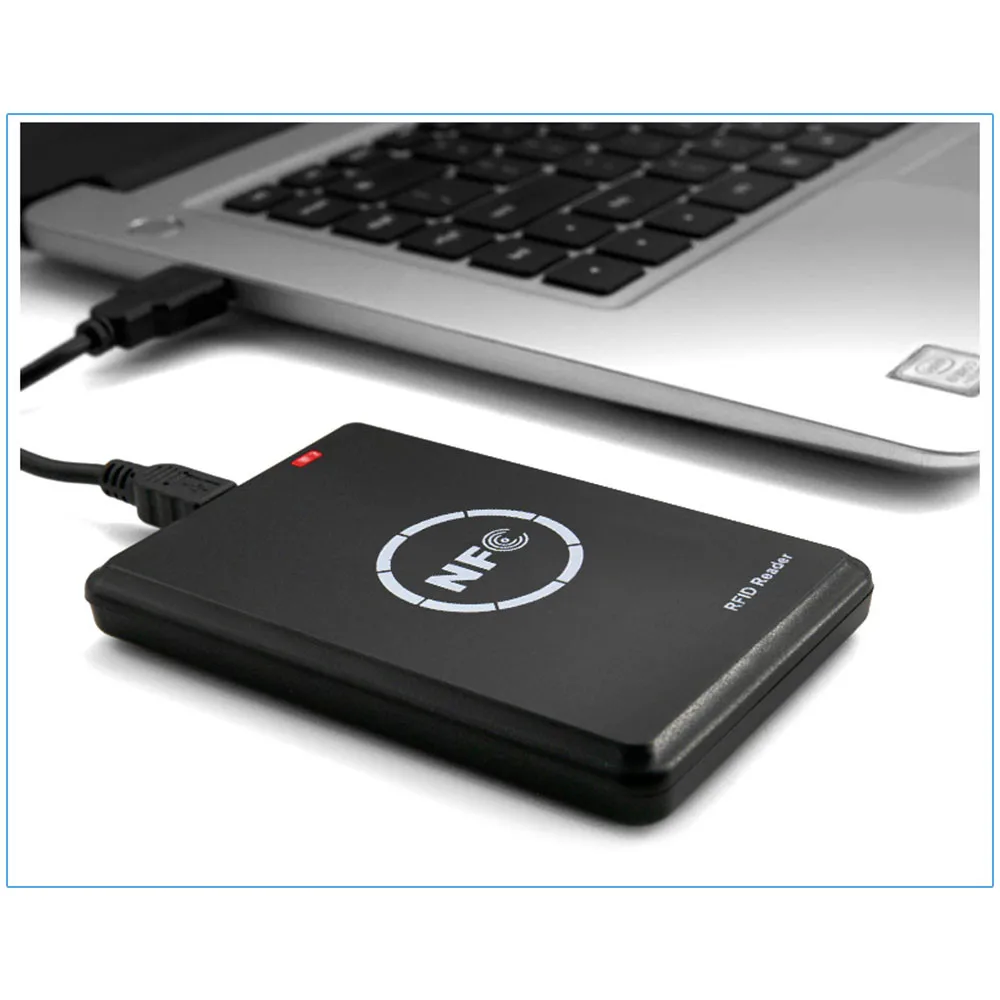

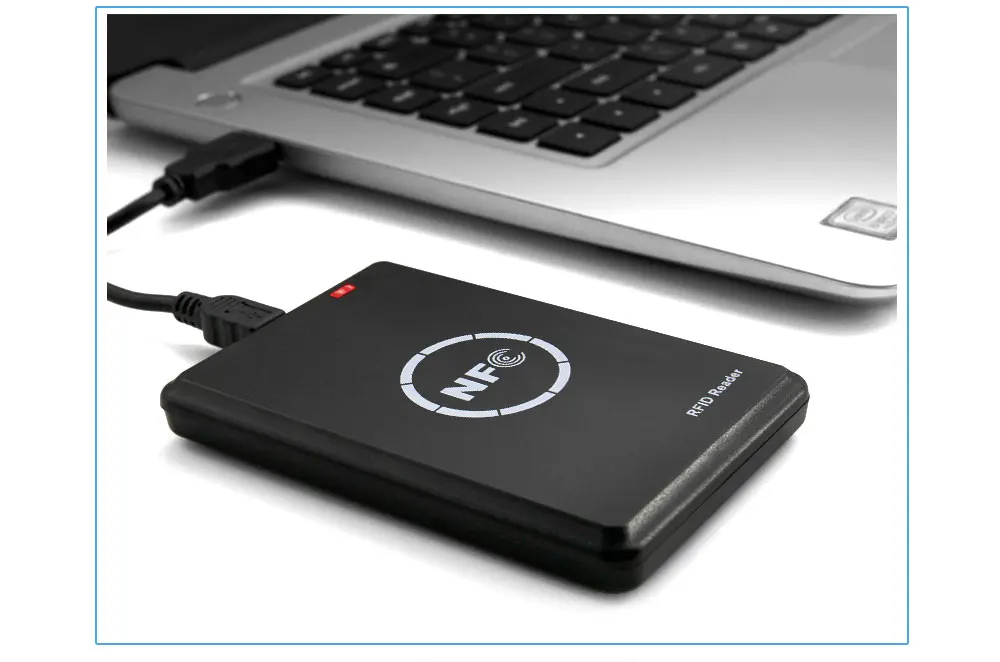

1) Connect the device to your computer with the USB cable.2) You can find and open the software on your computer.

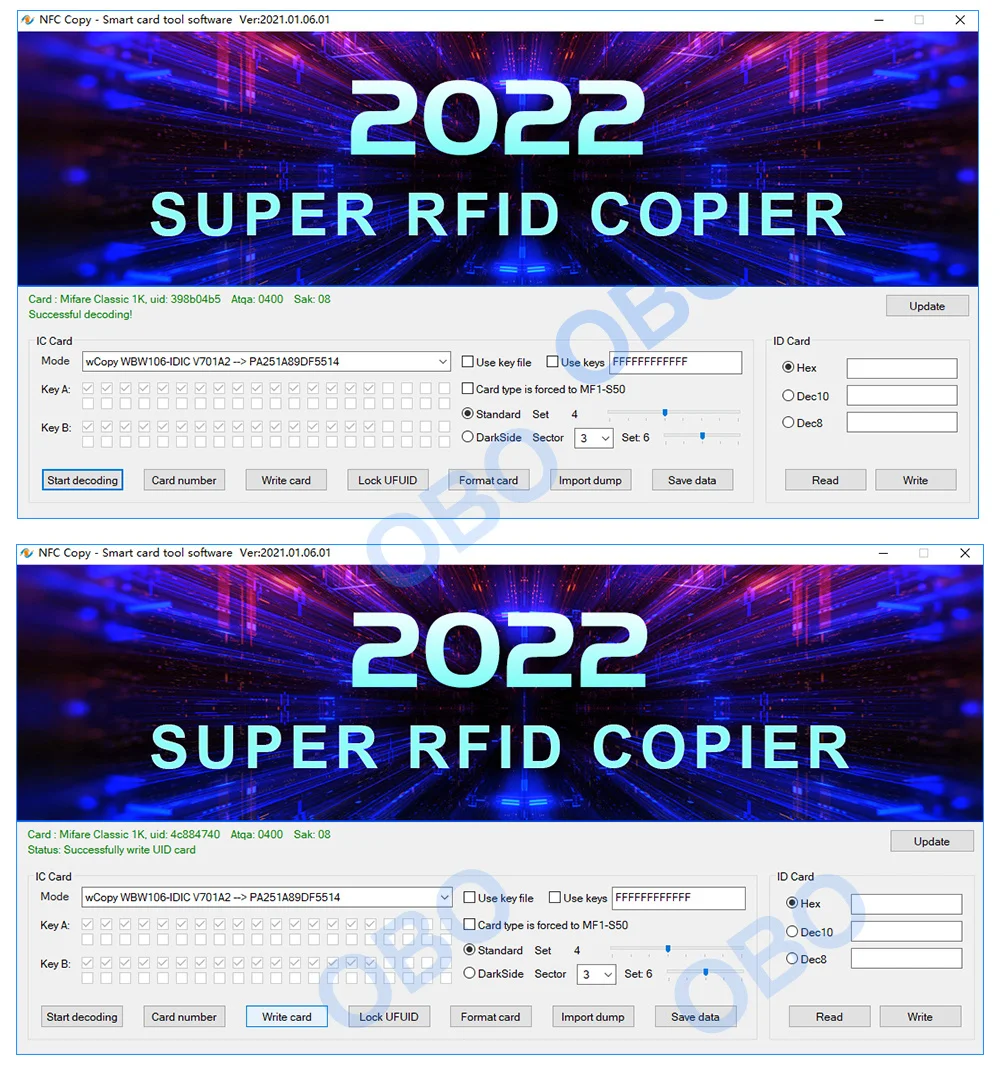

Read and write ordinary 125KHz RFID card1. Place the card on the card reader and press "Read" on the software to scan the card.2. The software will scan and display the card number3. Place a writable T5577 (125KHz writable chip) on the card reader and press "Write" on the software.

Read and write 13.56MHz IC, IC half encryption card, IC full encryption card1. Place the card on the card reader and press "Card number" or "Start decoding" on the software.2. The software will scan and display the card number3. Place a writable UID (13.56MHz writable chip) on the card reader and press "Write Card" on the software.

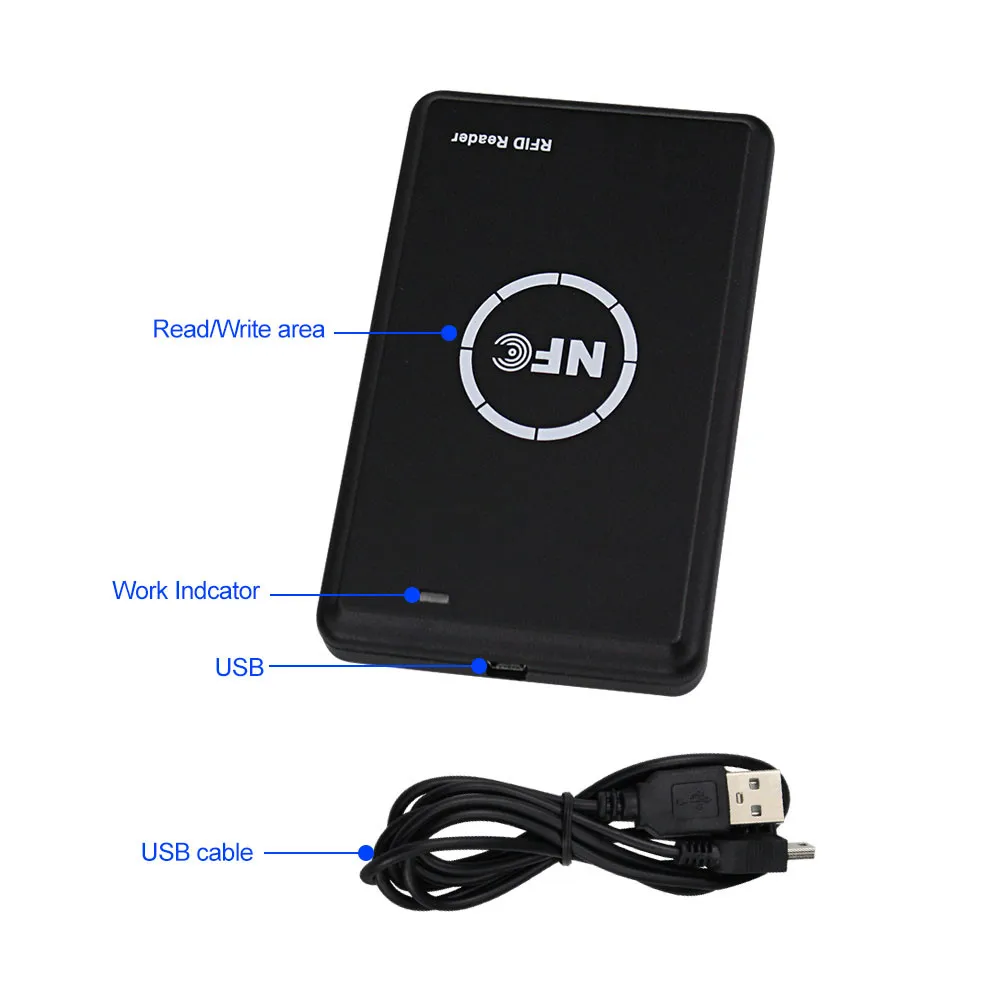

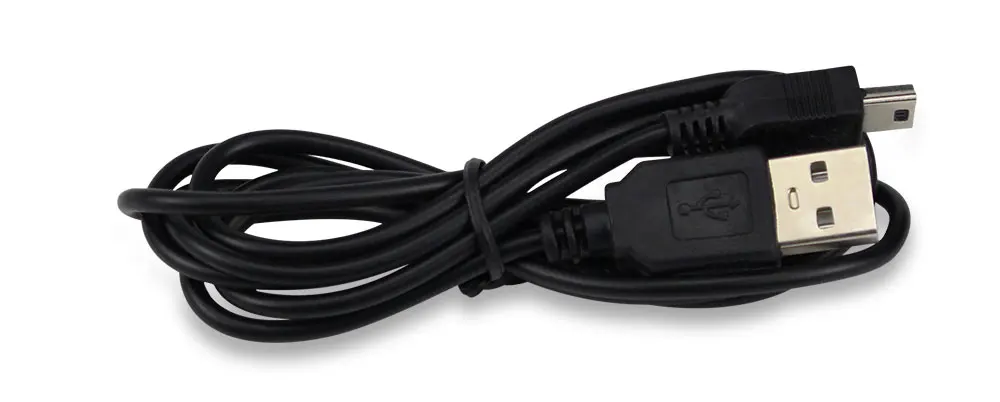

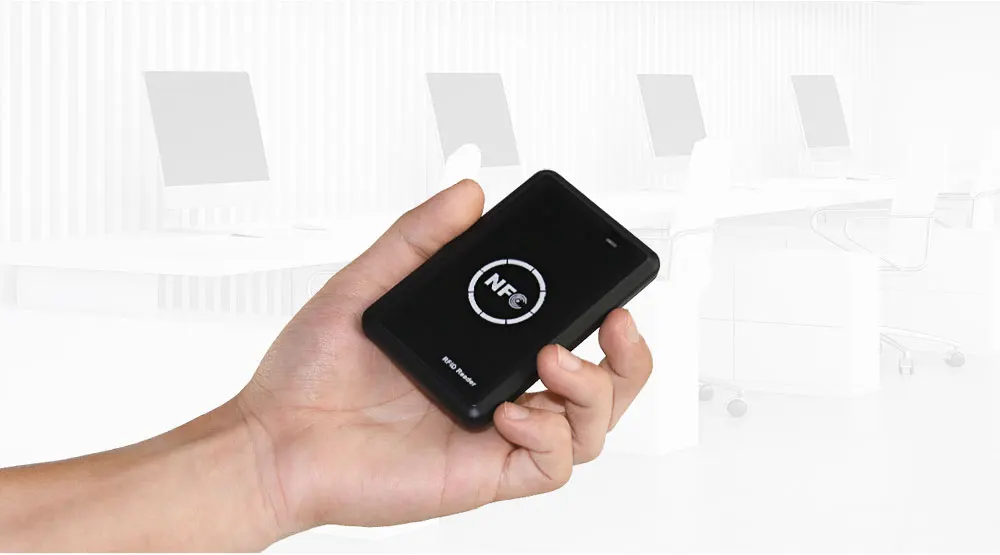

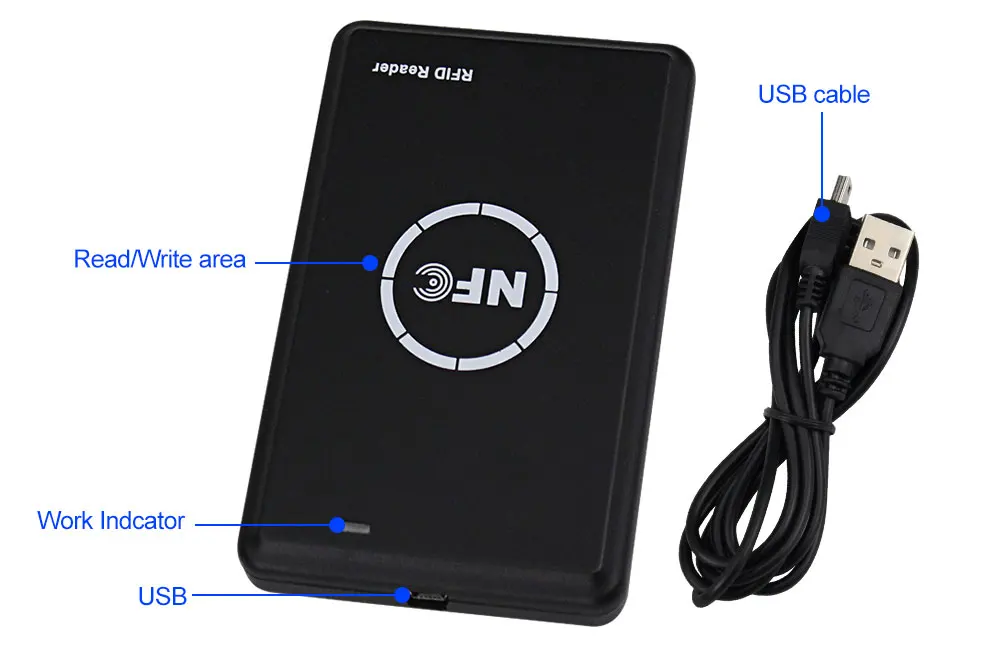

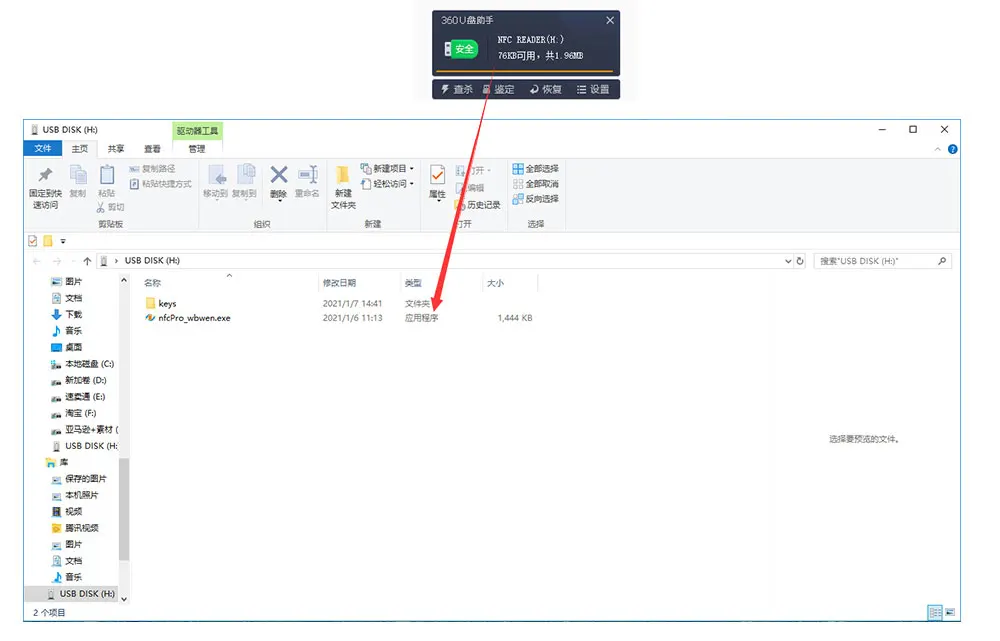

Product DetailsLight weight body, Mini DesignABS flame-retardant material casing, small and light, the interior is controlled by high-quality microchip, and the card reading effect is fast.LED indicator light / buzzerThe LED indicator light is red under standby mode, and it's green under the card reading status. Built-in buzzer, very convenient for effective prompts.Anti-slip mat at the bottomThe bottom is made of a sponge mat, and the inside of the sponge is a removable screw.USB full speed and efficient1.2m long USB transmission cable, fast response. No need to install the driver, quickly read the card numberBuilt-in mobile disk with software, plug and playConnect the RFID reader to your computer with the USB cable, then can find the software

Hot Question:

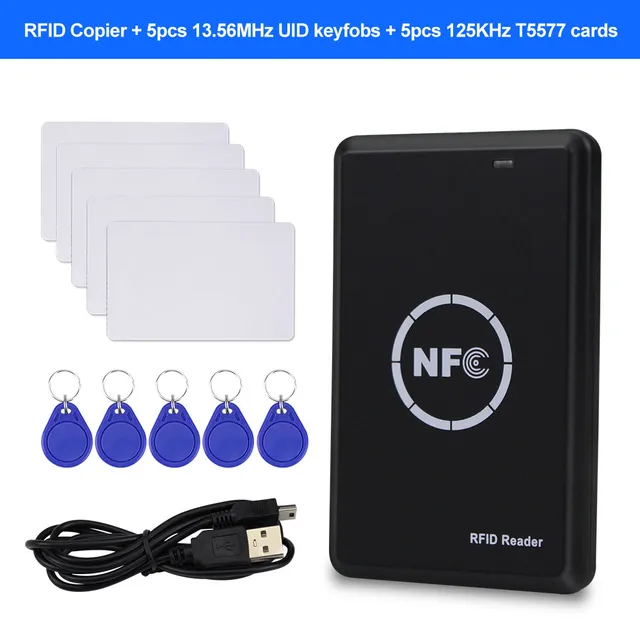

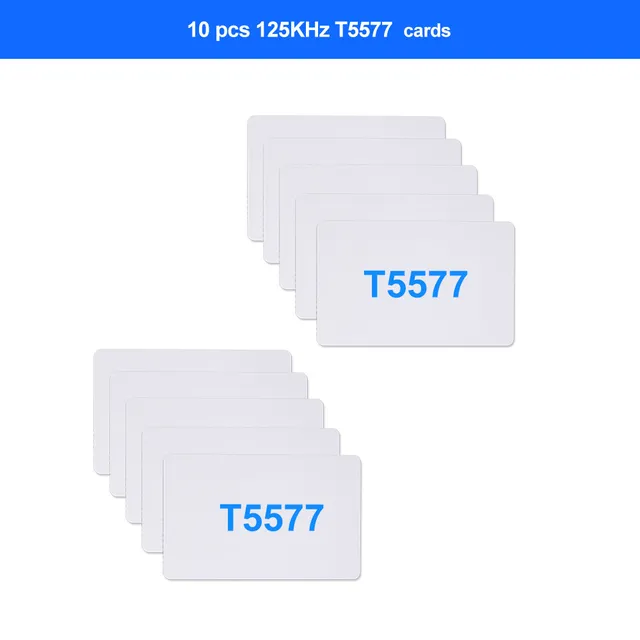

1) Where can i download the software?Answer: You can download the software via this link:http://www.nsccn.com/download/soft/nfc/nfcPro_wbw.exe2) Which chip inside in the 5pcs blue keyfobs and 5pcs white cards?Answer: If you buy the RFID copier + 5pcs UID keyfobs + 5pcs T5577 cards. The 5pcs UID keyfobs is working with 13.56MHz frequency, used to copy the MF 1k card. The 5pcs T5577 cards is working with 125KHz frequency, used to copy the EM4100, TK4100 cards. They are different type card.3) Why the 5pcs cards in the package read failure?Answer: Please don't worry, these 5pcs white cards is T5577 (EM4305) type, they haven no data before write. They will can be read successfully after finished written from your TK4100 or EM4100 type card. Thank you.
