5.0 Inch HMI TFT Screen Module with UART Interface + Controller + Develop Software for Industrial Control

LCD Modules>>>Electronic Components & Supplies

Brand Name STONE

Origin CN(Origin)

Model Number STVI050WT-01

Type TFT

Display Mode 500:1

is_customized Yes

Technical Parameters

Physical Parameter

Size

5.0 inch

Resolution

800×RGB×480

Pixel Spacing

0.045(W) × 0.135(H) mm

Color

262,144colors (18 bit)

Viewing Area

108.0(W) × 64.8(H) mm

Display Dimension

109.6mm× 66.8mm

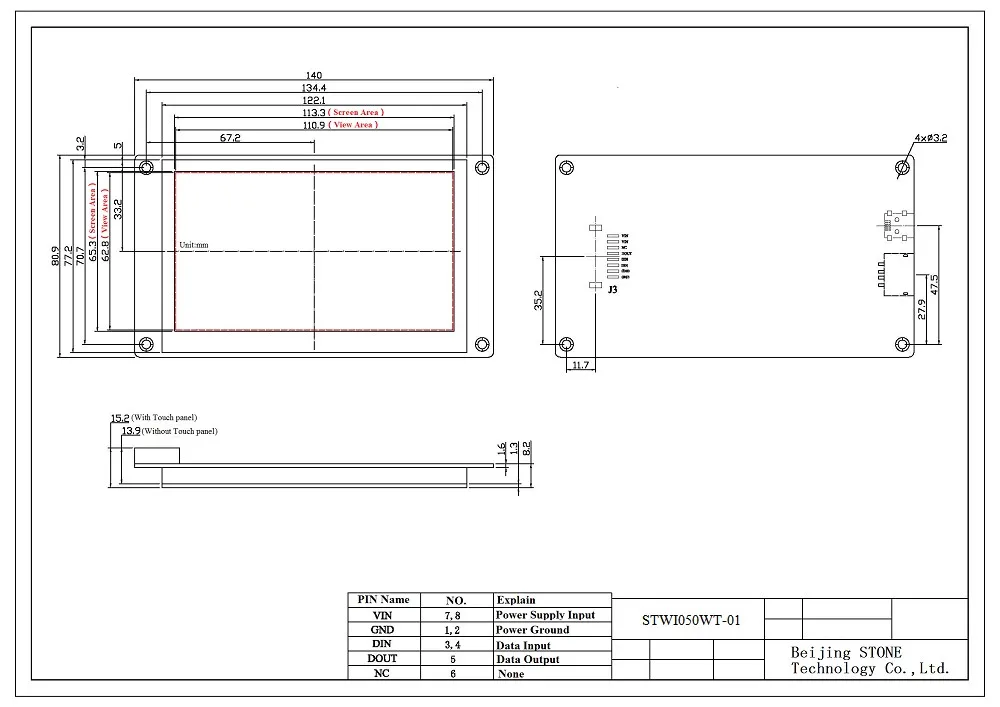

Overall Dimension

140mm×80.9mm×15.1mm (T)

(Standardtype)

140mm×80.9mm×23.8mm (T)

(withEthernet port)

Net Weight

200g(T)

Display

BacklightType

LED

Brightness

350cd/m2

(Brightness can beadjustable in 100 levels)

Contrast

500:1

Backlightlife

30,000 hours

ViewingAngle

70°/70°/50°/70°(L/R/U/D)

TFT Panel

A Class Industry Panel

Touch Screen

4 WireResistance Touch /Capacitive Touch / Without Touch Screen

ScreenMode：

Digital

Processor

CPU

Cortex A8

Refresh Rate

1G Hz

Max Frame rate

60 FPS

Memory

Flash Memory

Standard 256MB, Extension 1GB or 2GB

MemoryAmount for Image

Accordingto the capability of the image, Suggest "PNG, BMP, JPG, SVG, GIF"format.

Technical Parameters

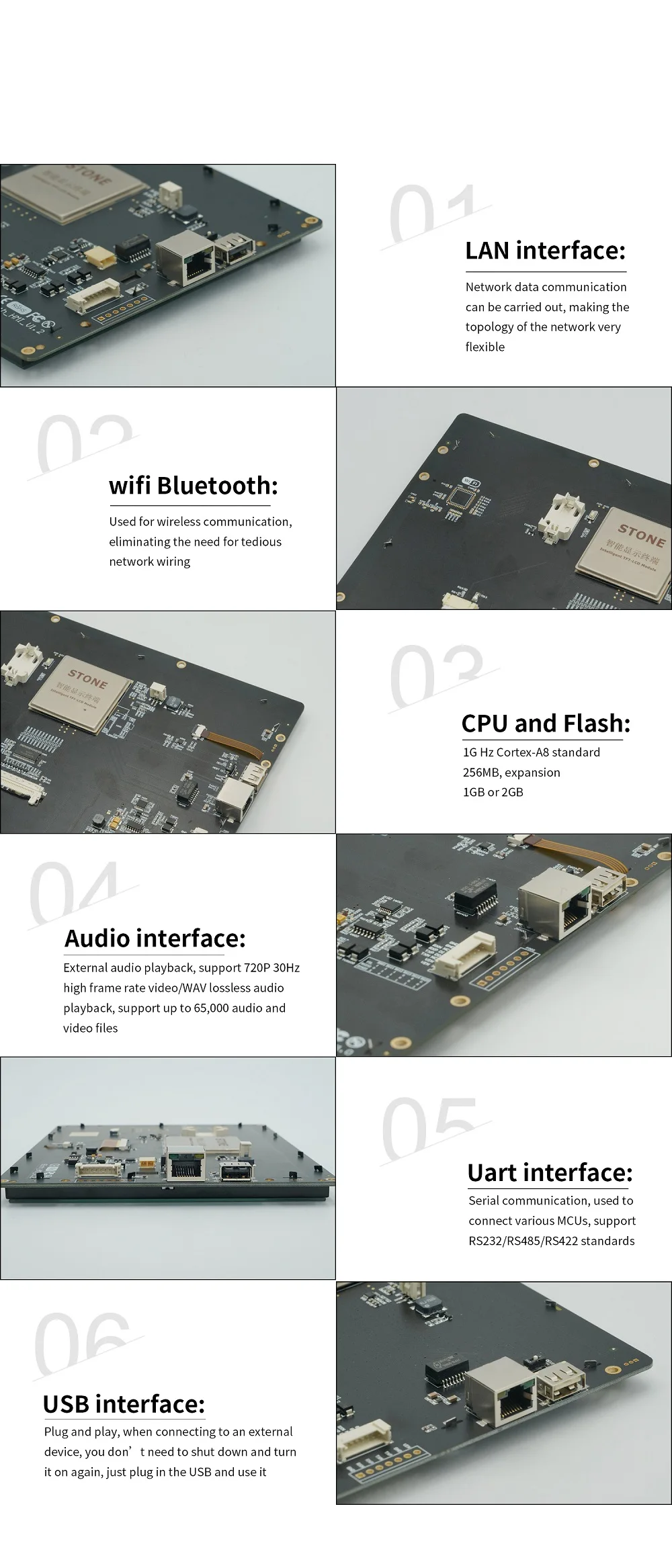

Interface

Serial Interface

RS232 / RS422 / RS485 / TTL level

Ethernet interface

10M/100M (Optional)

Wireless interface

Wi-Fi / Bluetooth (Optional)

Project file downloading

USB2.0 port or U storage Disk

Power Supply

Rated voltage

+12V DC or +5V DC

Permissible voltage range

+7V DC...+28V DC or +5V DC

Max. permissible transients

+28V

Time between two transients

50 sec minimum

Internal Fuse

2A self-recovery fuse

Power consumption

2.4W

Electrical Characteristics

Parameter

Condition

Min

Type

Max

SupplyCurrent

VIN=12V

(Maxbrightness)

165mA

VIN=12V

(closebrightness)

75mA

BaudRate

115200bps

Signal

Technical Parameters

Ambient Conditions

Max. permissible ambient temperature

Operation

Storage

-30℃～ +80℃

-30℃～+80℃

Relative humidity

Operation

Storage

55℃,85%

60℃,90%

Shock loading

Operation

Storage

15 g/11 msec

25 g/6 msec

Vibration

Operation

Storage

0.035 mm (10 - 58Hz)/ 1 g (58 - 500 Hz)

3.5 mm (5 - 8,5Hz)/ 1 g (8.5 - 500 Hz)

Barometric pressure

Operation

Storage

706 to 1030 hPa

581 to 1030 hPa

Noise Immunity

Staticdischarge

(contactdischarge/air discharge)

EN61000-4-2

6 kV/8 kV

RFirradiation

EN 61000-4-3

10V/m, 80% AM

1kHz

Pulsemodulation

ENV 50204

900MHz ±5 MHz

10V/meff., 50% ED, 200 Hz

RF conduction

EN 61000-4-6

150 kHz - 80 MHz

10 V, 80% AM, 1 kHz

Burstinterference

Supply lines

Process data lines

Signal lines

EN 61000-4-4

2kV

2kV

1kV

RadioInterference

Radio interference levelcomplying to

EN 55011

Class A

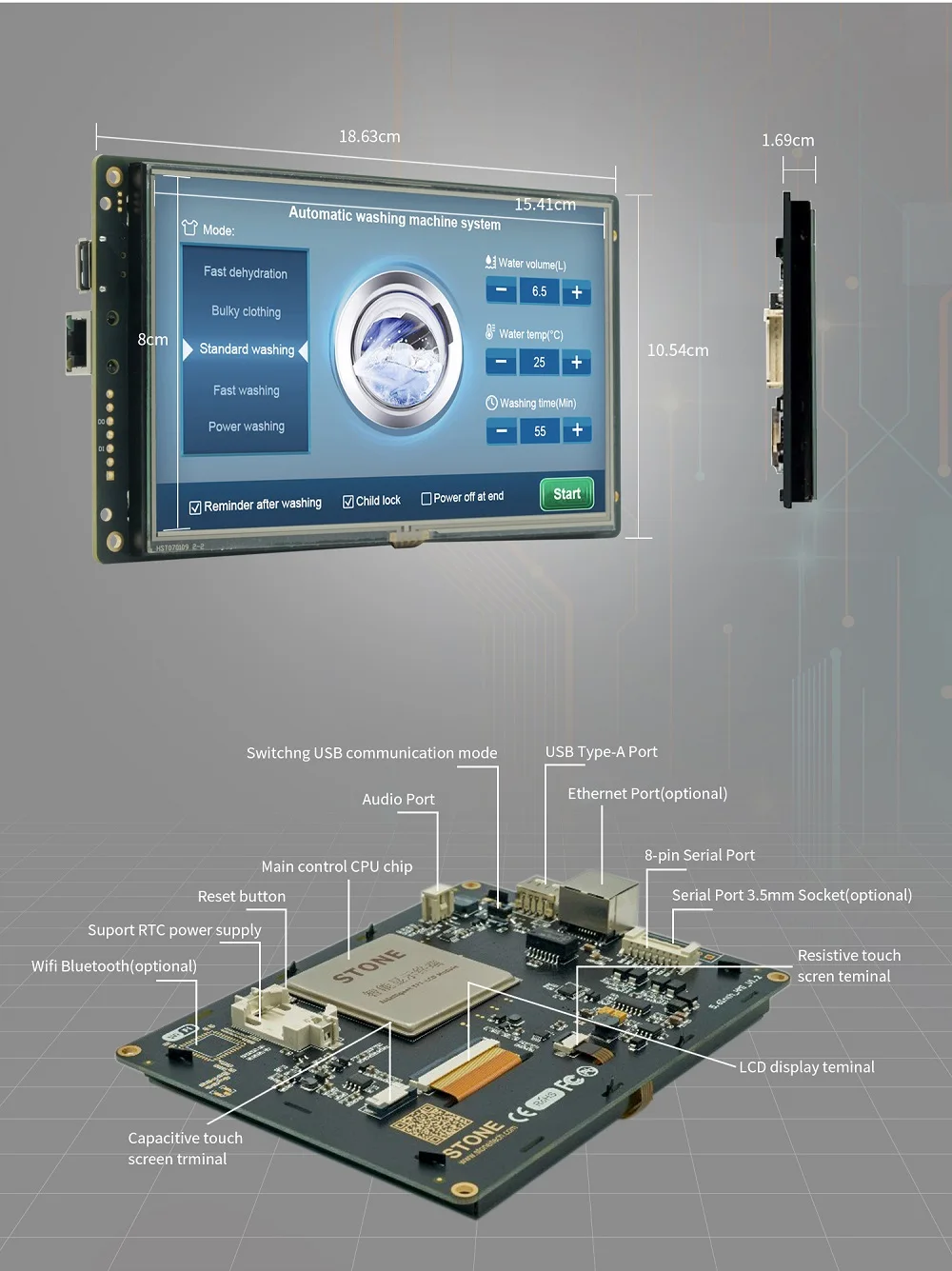

Support Device

UART Port

Support

RS232 / RS422 / RS485 / TTL

Network Port

Support

Ethernet Port / Wi-Fi / Bluetooth

Flash Memory

Support

Standard 256MB, Extend 1GB or 2GB

Buzzer

Support

RTC

Support

USBport

Support

Online Download By USB Cable

U Storage Disk Interface

Support.

Offline Download or Copy User Data

Touch Screen

4 Wire Resistance / Capacitive

Vector Font

Standard TTF Format


Support PNG/JPG/BMP/SVG/GIF Format

AudioInterface

SupportWAV format

Thelength of single audio file is not limited, theoretically up to 4096 audiofiles, speaker power is 8 ohms 2 watts or 4 ohms 3 watts

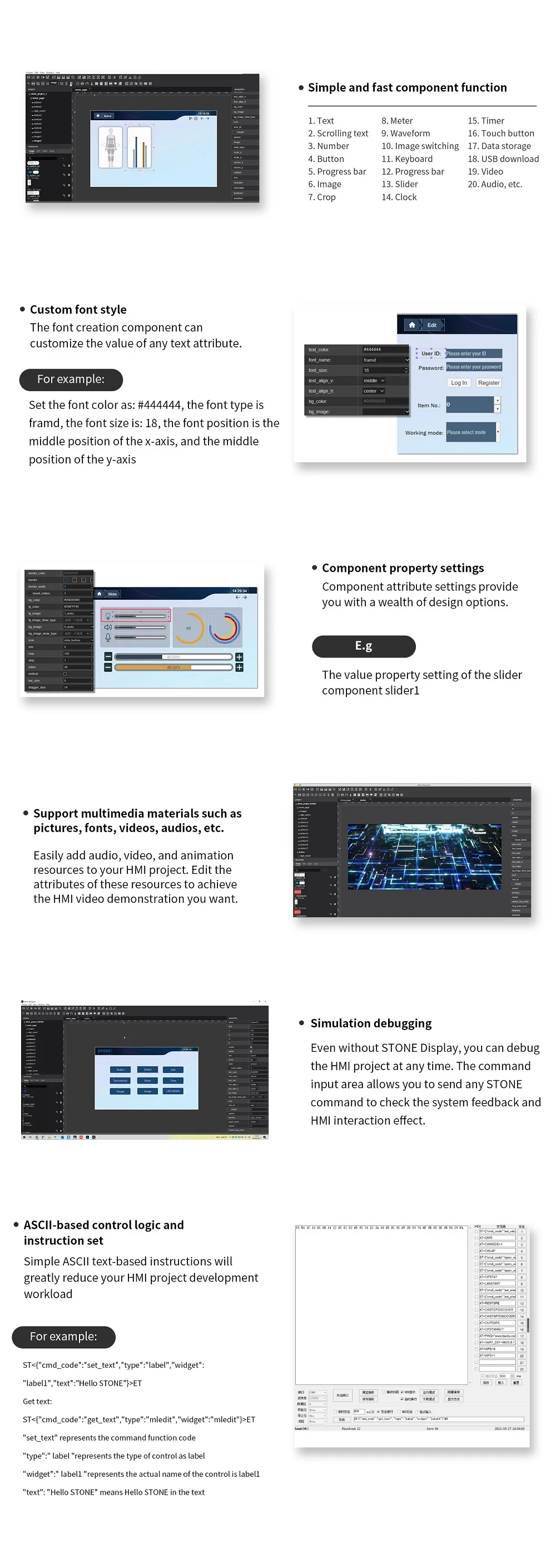

Command Set

Unified Simplified Command Sets
