LiitoKala Lii-PD4 Lii-S8 Lii500s Lii600 battery Charger for 18650 26650 21700 18350 AA AAA 3.7V/3.2V/1.2V/ lithium NiMH battery
Chargers>>>Consumer Electronics
Brand Name liitokala
Origin CN(Origin)
Display screen Yes
Quick charge Yes
Type Electric
Type USB
Intelligent Charge Yes
Certification CE
Certification FCC
Certification RoHS
Package Yes
Model Number Lii-PD4/S8/600/S6/500S/500/M4/S2/402/202
Voltage 3.7 В
Output Interface USB Output
Use Standard Battery
Ships From
China
Russian Federation
Color
Socket Standard
US
EU
Order description

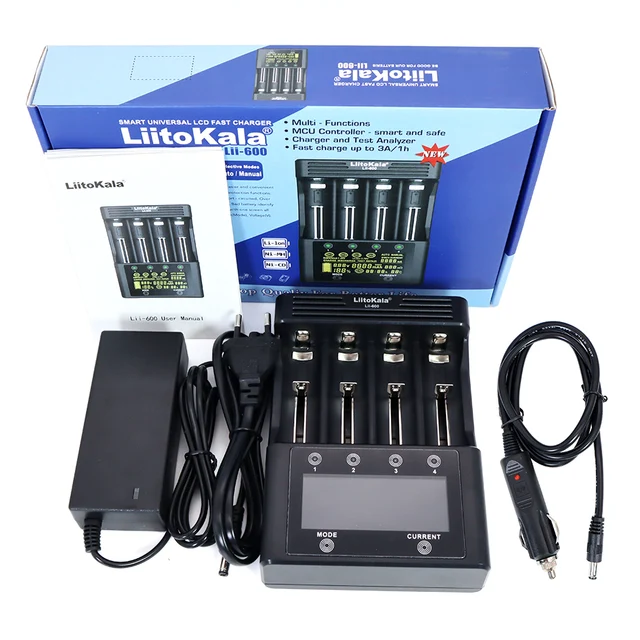

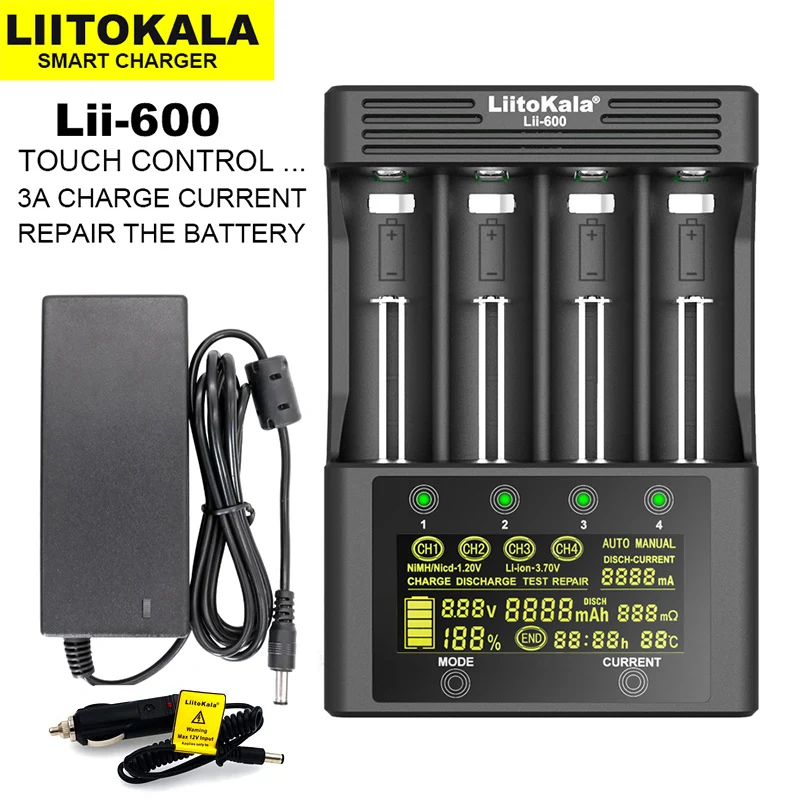

Lii-600 Full: Lii-600 charger + 12V/5A adapter + 12V Car Cable + manualLOrder description

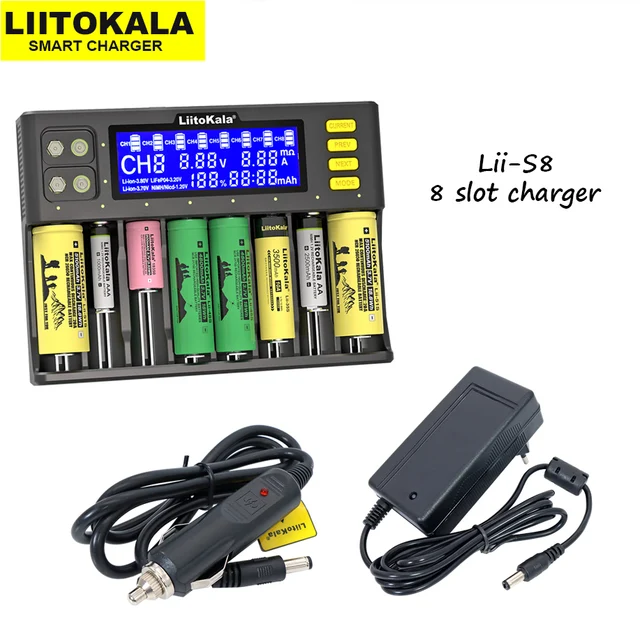

Lii-S8 Full: Lii-S8 charger + 12V/4A adapter + 12V Car Cable + manualSpecific parameters

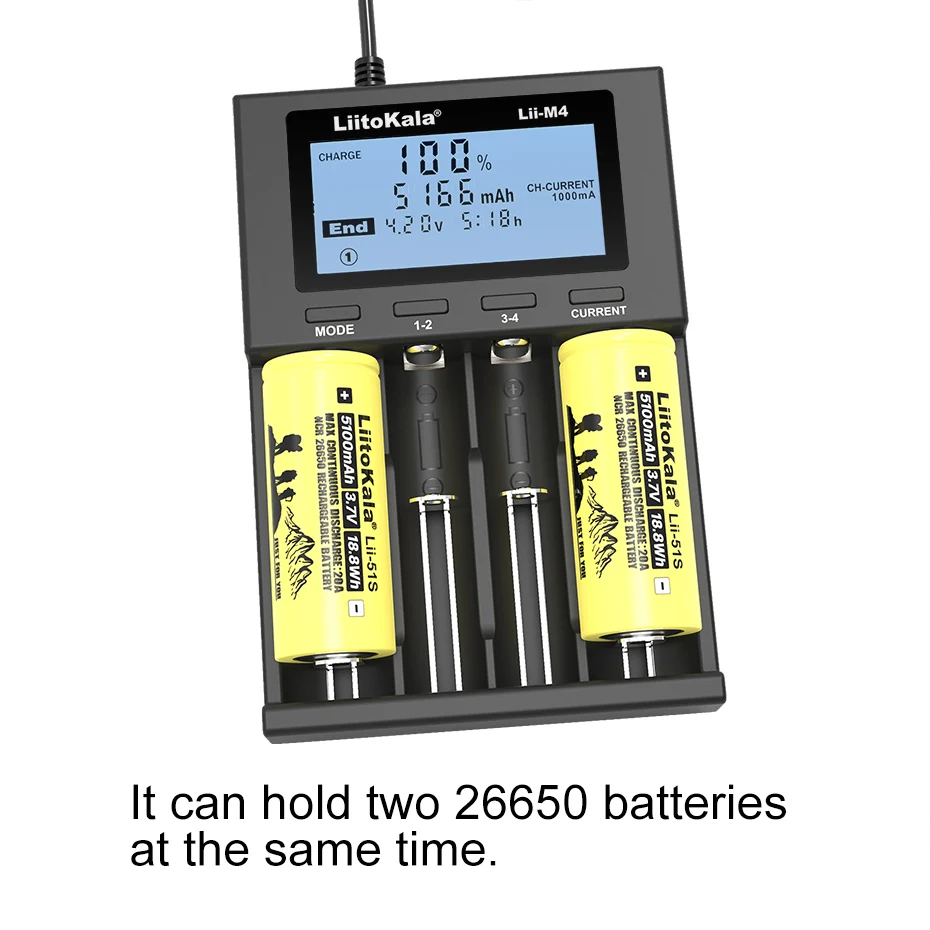

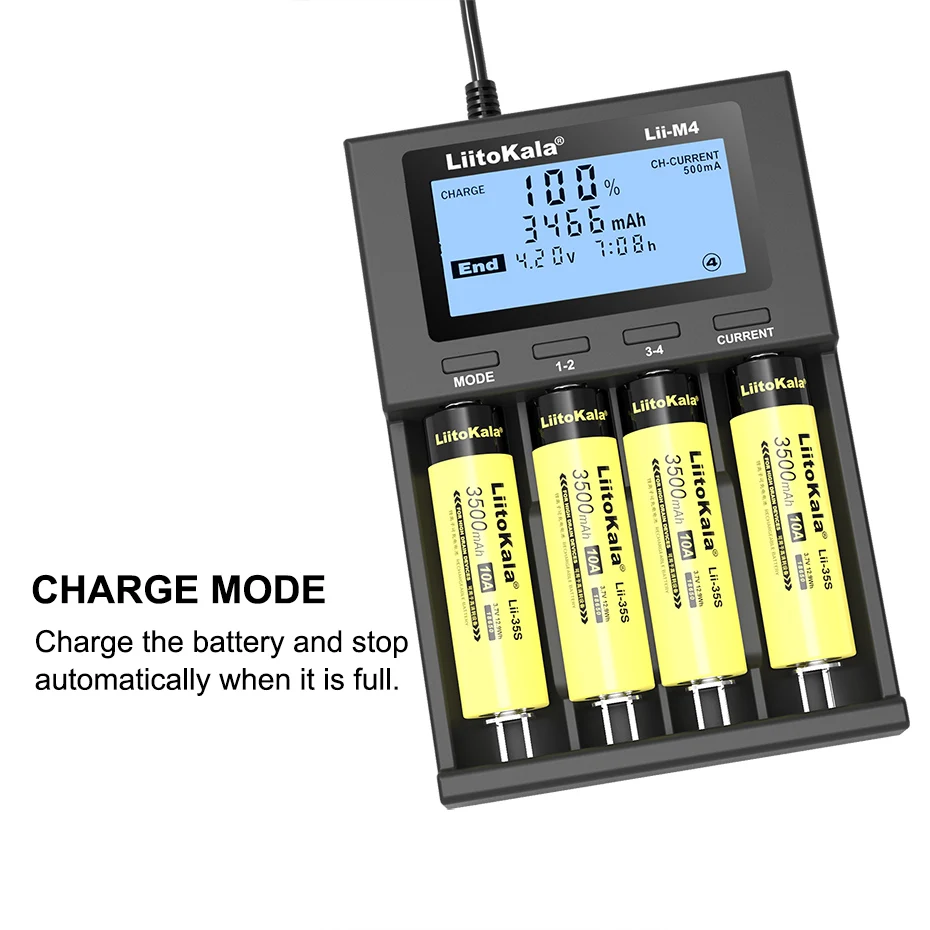

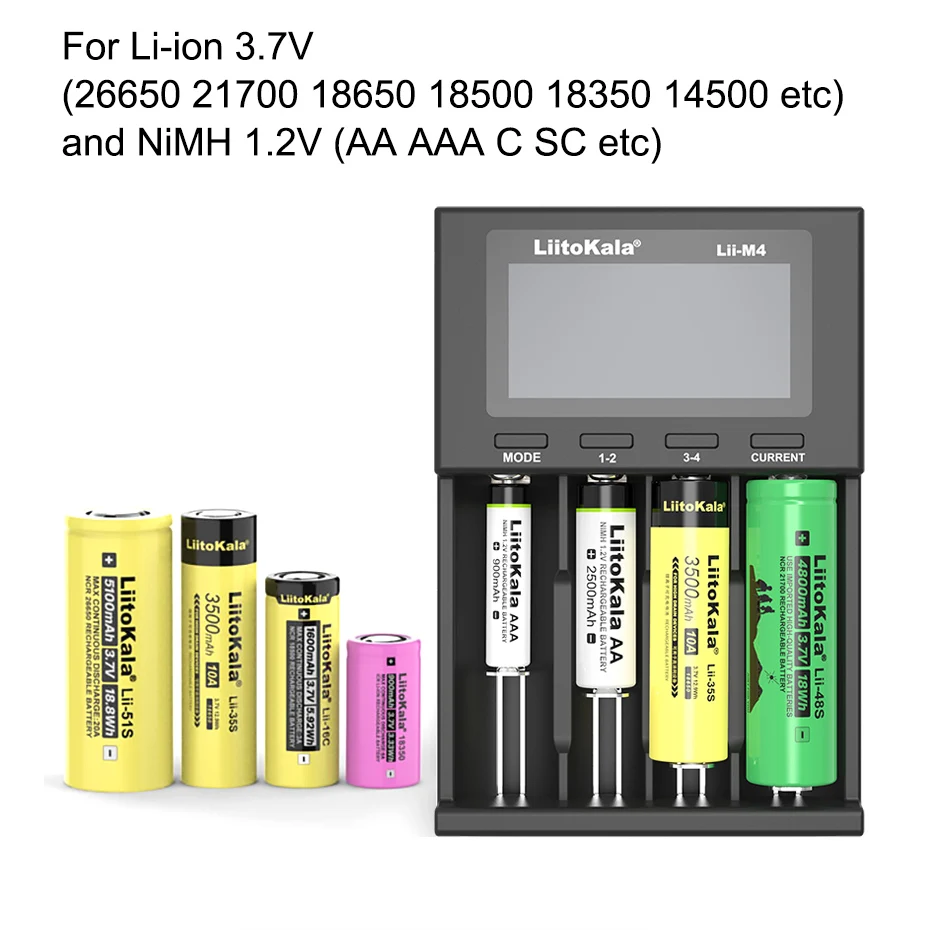

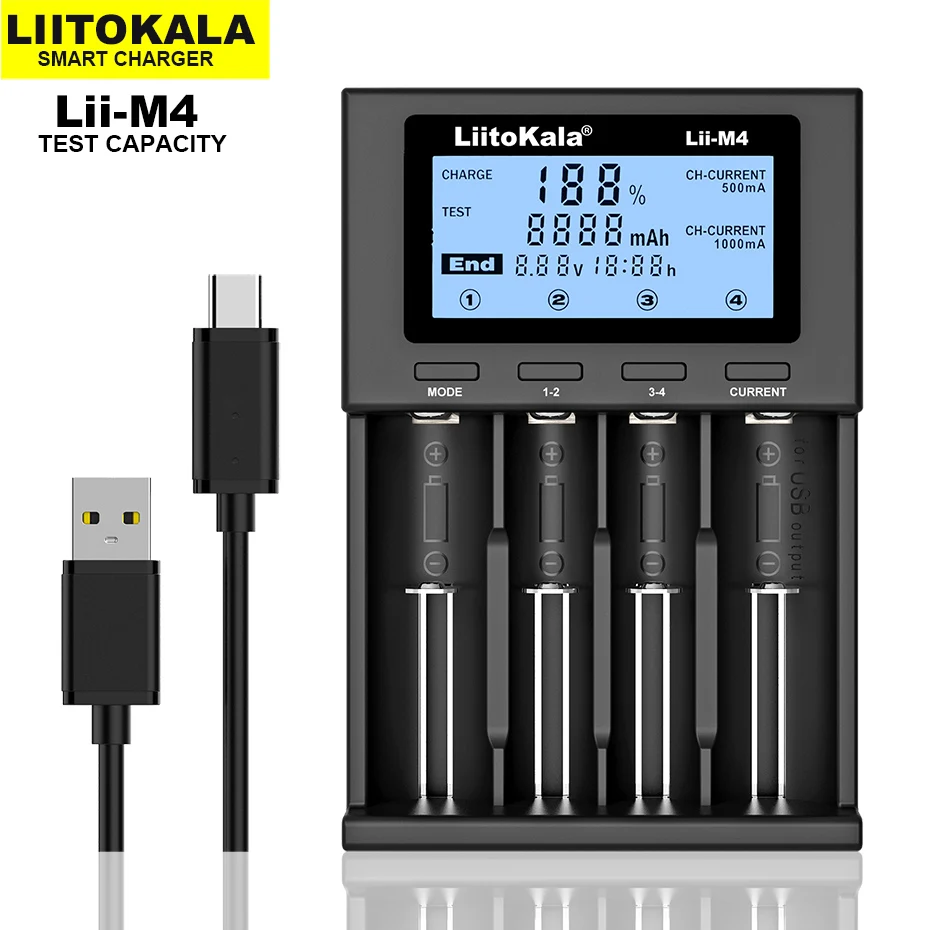

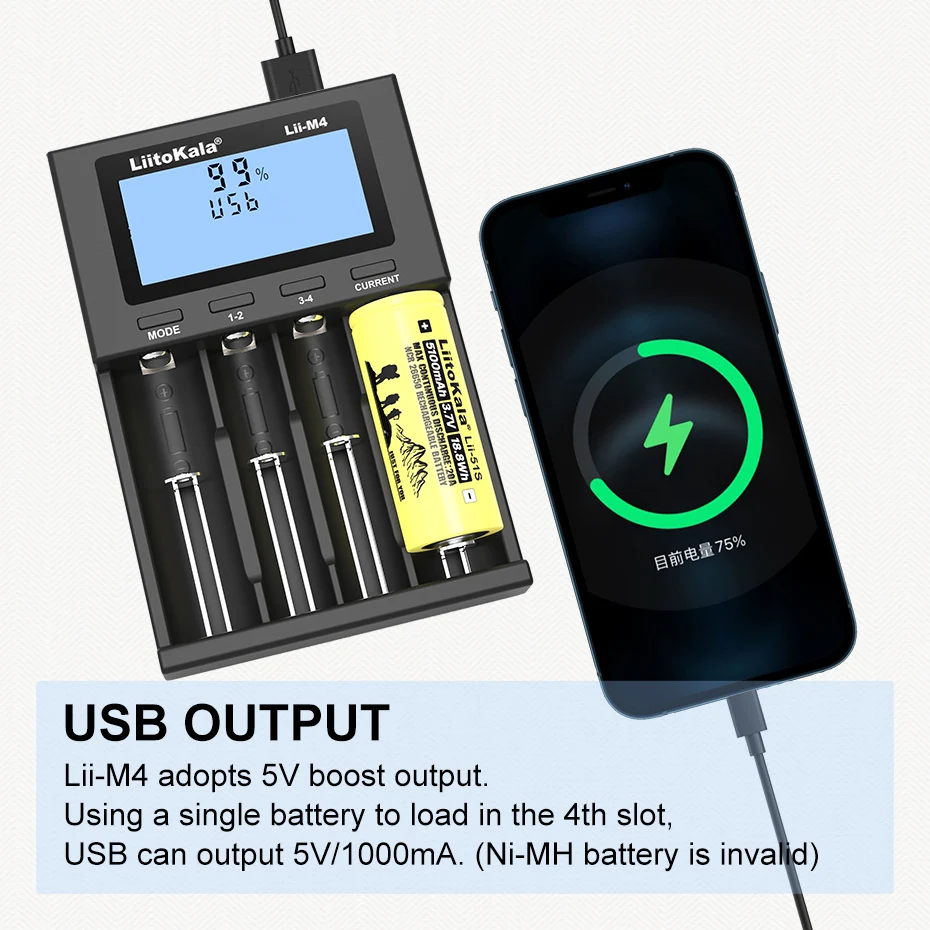

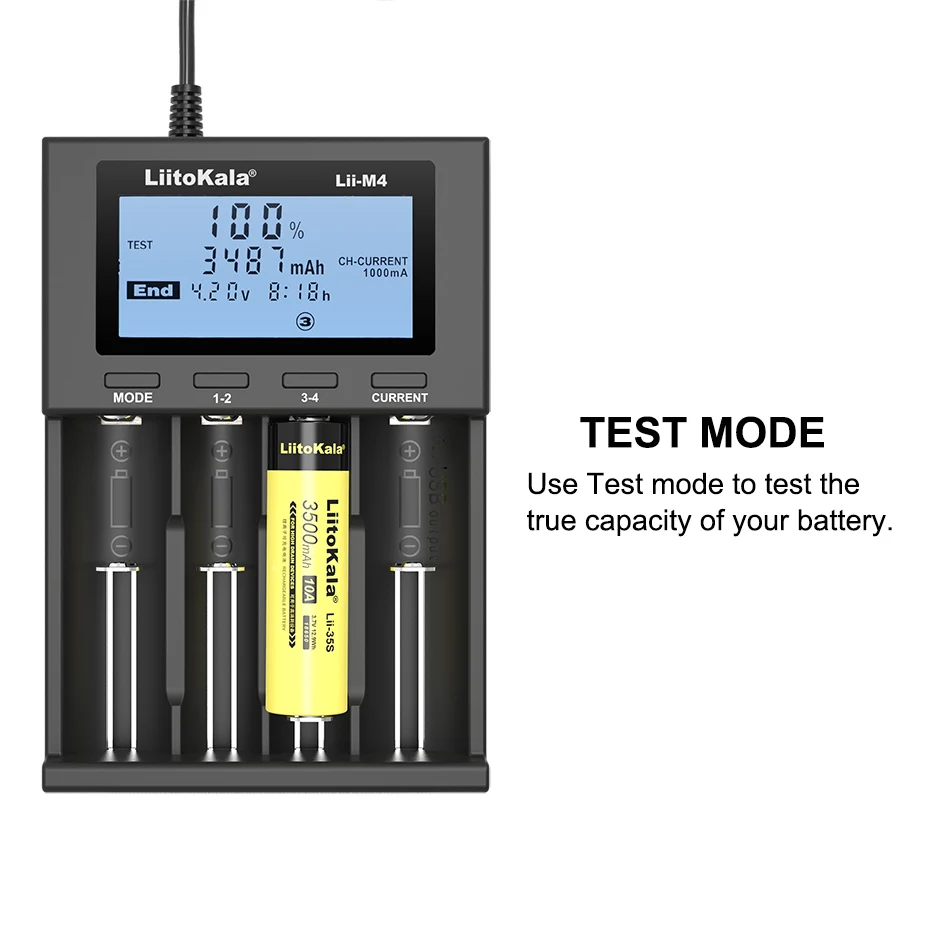

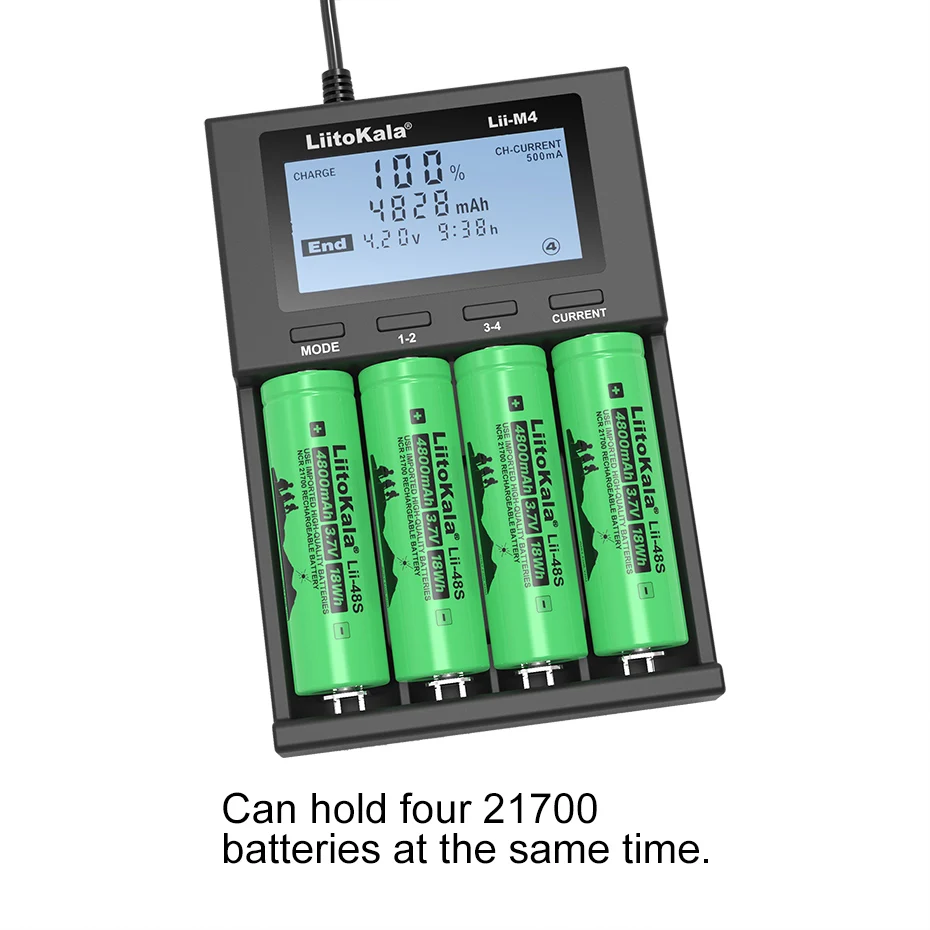

Brand: LiitoKala Model: Lii-M4Input voltage: DC 5V/2AOutput voltage:DC 4.2V / DC 1.48V / DC 3.65V / DC 4.35V / 5VOutput current Lithium batterycharging current: 500mA*4 / 1000mA*2 NiMH batterycharging current: 500mA*4 USB 5V output current: 1000mA Rechargeable battery specifications: 26650,21700,18650,18350, 20650,14500, AA, AAA, C,SC etc. Termination method: intelligent voltage monitoringDimensions: 146mm (length) * 100mm (width) * 33mm (height).
Order description

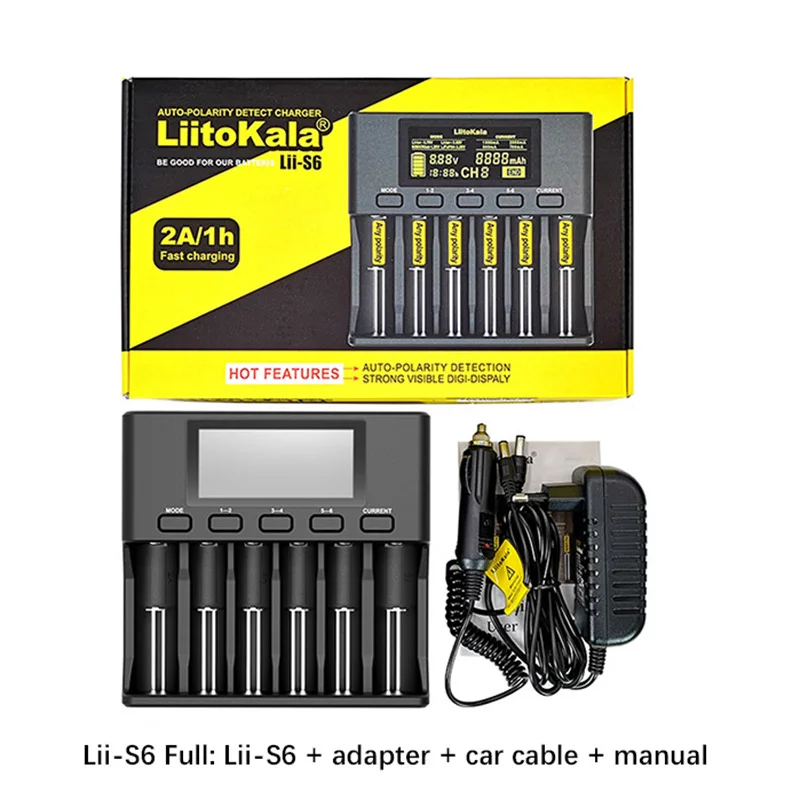

Lii-S6 Full: Lii-S6 charger + 12V/3A adapter + 12V Car Cable + manualLii-S6 6-slot Car Polarity Detect ChargerAuto Polarity Detect. * 12V / 3A input with a total power of 36 W. 6 slots work independently. It can be charged together with a variety of battery mixes. * Can accept 32700, 26650, 21700, 20700, Ni-MH SC and other large batteries * A variety of protection, charging safe.

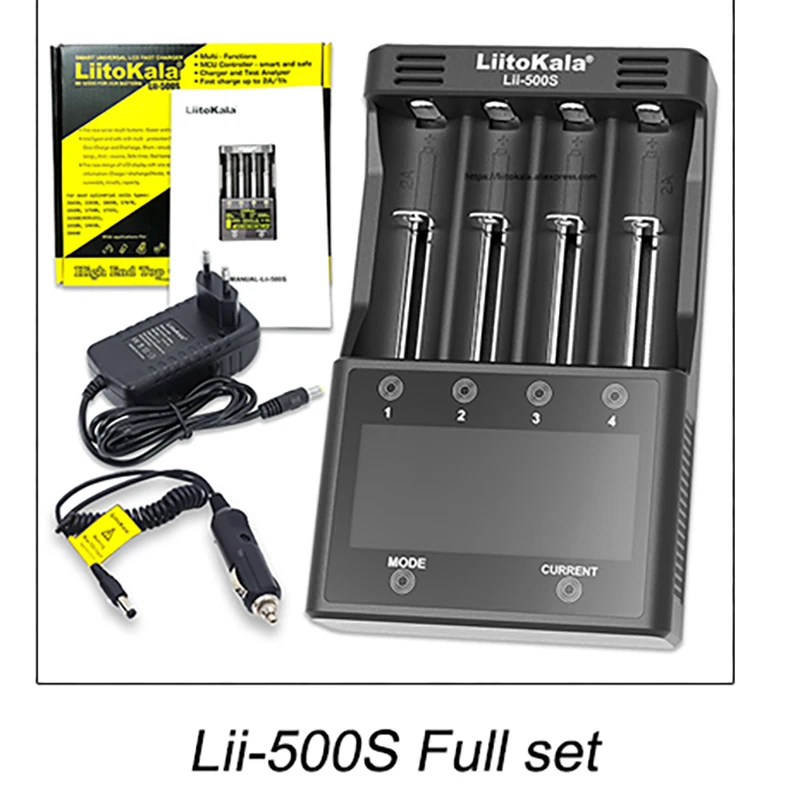

Lii-500S Features
1. New touch control function;2. Four optional charging currents: 500mA*4/700mA*4/1000mA *4/2000mA*2;3. Two discharge currents: 250mA*4/500mA*4;4. It can charge different batteries of different specifications (18650/26650....../AA/AAA); 5. This product uses a separate LCD display, charge and discharge mode (MODE). Voltage (V). Current (mA). Time (h). Capacity (mAh) parameters, at a glance;6. CHARGE, DISCHARGE and TEST modes can work simultaneously; independently set charge/discharge capacity detection/normal capacity detection function; 7. A variety of protection functions: overcharge and over discharge, short circuit, temperature, 0V voltage activation function, 1.65V-2.2V non-charging function, intelligent identification of bad battery and reverse battery detection protection;8. With standard 5V/1000 mA USB output function (only valid when AC power is connected);Lii-500S ParametersInput voltage:DC 12V/3.0AOutput voltage:DC 4.2V / DC 1.48VOutput currentLithium battery charging current:500mA*4 /700mA*4/1000mA *4 2000mA *2NiMH battery charging current:500mA*4/700mA*4 /1000mA*4Rechargeable battery specifications:26650,21700,18650,18350, 20650,14500, AA, AAA, etc.Discharge current:250mA / 500mAUSB output:5V---1000mATermination method:intelligent voltage monitoringDimensions:162mm (length) * 100mm (width) * 36mm (height).Order descriptionLii-500S Full: Lii-500S charger + 12V/3A adapter + 12V Car Cable + manualNote: The results of the Lii-500S charger test are for reference only and do not make any professional proof.Dear customers:

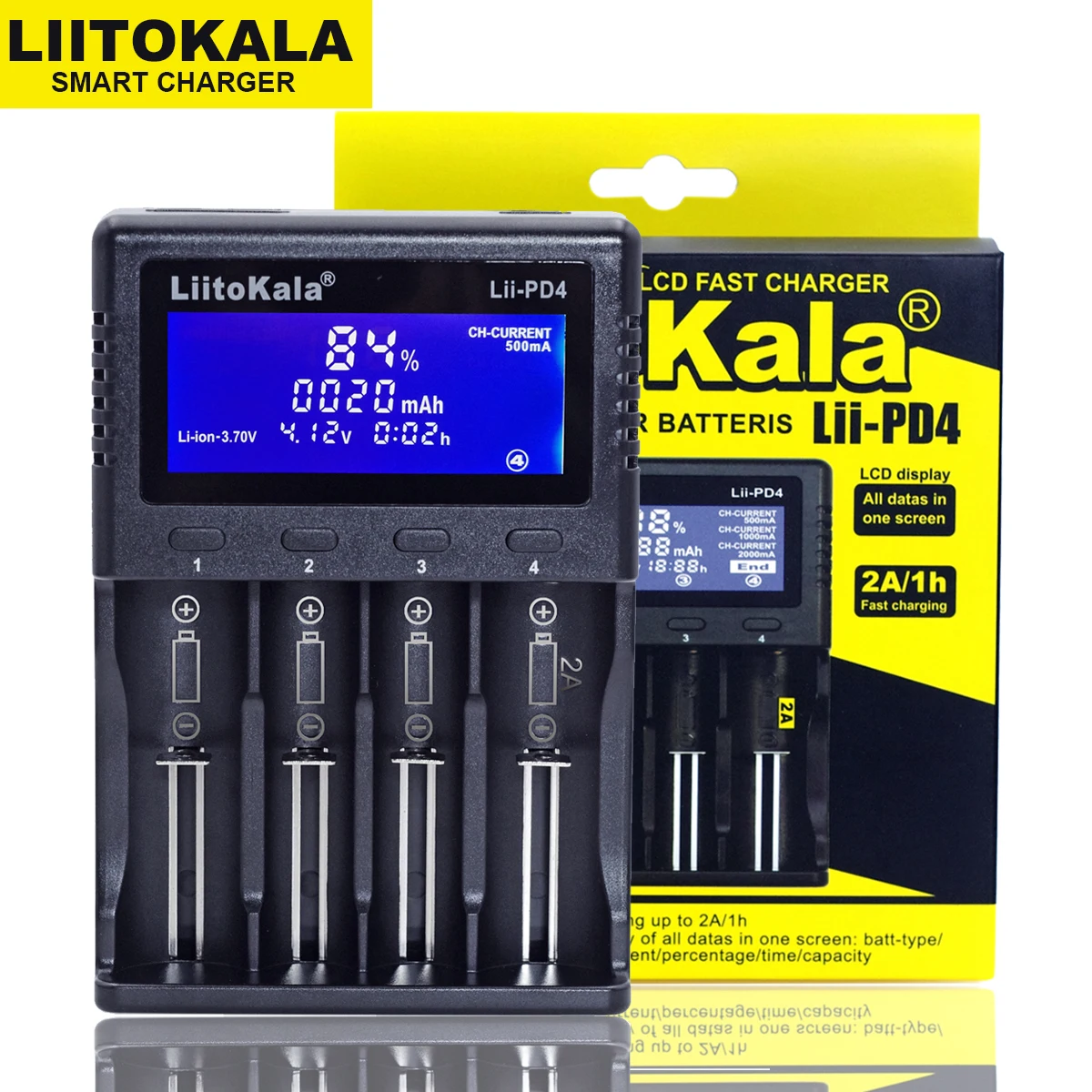

Hello, the Liitokala Lii-PD4 charger does not have a test capacity feature. Please pay attention to the choice when purchasing. Thank youLiitokala Lii-PD4 Chargerx1
AC Cable x1
Manual x1
Cautions:
1. This charger can charge all cylindricalrechargeable batteries 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4
2. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
3. If DC input, only 12V 1Ais recommended
4. Mind heating while charging
5. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
6. For indoor use only
7. The displaying data only for reference, please refer to professional instrument for more accurate data
Specifications and functions:
1. Multi-power input: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.
2. Charge current intelligent auto-set of total three levels: 500mA /1000mA/2000mA),2000mA is fixed only for slot#4.
3. Multi-functional LCDcharging display: for charging progress25% - 50% - 75% -100% , battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR), charging capacity, voltage and current: 0.5A/1A/2A.
4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)
5. Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)
6. Multi-safety protection function of over-charge and over-discharge, short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.
7. Chargingat constant voltage and current
Button and LCD :
1. Button of Mode(Channel button): there are 4 independent buttons separately for each channel. While power supply is connected and battery inserted, 1) Short click the channel button in 5S to change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V), 1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it needs setting only 3.2V and 3.8V batteries;
Note: Battery type can be only selective before charging starts.
2. LCD: While power supply connected, the LCDwill light up for 3S: 1) If no battery is inserted, the LCD will display "null" and will be off in 30S 2) When battery is inserted and detected, the LCD will show channel number while the battery type image " Li-Ion 3.7V"flashing indicating to set the battery type: this moment if short click the channel button, it can set battery type; if no operation in 5 seconds, it beginsby automatic detection(Li-Ion 3.7V or NIMH) then charging percentage image will flash meaning the start of charging. At the same time the LCD displays also charge voltage, capacity, time and current. When charge completes, it will display"100%"mean while it shows "End" on the LCD right down corner.
LCD displaygraphic reference:
Cautions:
1. This charger can charge all cylindricalrechargeable batteries 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4
2. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
3. If DC input, only 12V 1Ais recommended
4. Mind heating while charging
5. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
6. For indoor use only
7. The displaying data only for reference, please refer to professional instrument for more accurate data
Specifications and functions:
1. Multi-power input: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.
2. Charge current intelligent auto-set of total three levels: 500mA /1000mA/2000mA),2000mA is fixed only for slot#4.
3. Multi-functional LCDcharging display: for charging progress25% - 50% - 75% -100% , battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR), charging capacity, voltage and current: 0.5A/1A/2A.
4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)
5. Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)
6. Multi-safety protection function of over-charge and over-discharge, short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.
7. Chargingat constant voltage and current
Button and LCD :
1. Button of Mode(Channel button): there are 4 independent buttons separately for each channel. While power supply is connected and battery inserted, 1) Short click the channel button in 5S to change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V), 1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it needs setting only 3.2V and 3.8V batteries;
Note: Battery type can be only selective before charging starts.
2. LCD: While power supply connected, the LCDwill light up for 3S: 1) If no battery is inserted, the LCD will display "null" and will be off in 30S 2) When battery is inserted and detected, the LCD will show channel number while the battery type image " Li-Ion 3.7V"flashing indicating to set the battery type: this moment if short click the channel button, it can set battery type; if no operation in 5 seconds, it beginsby automatic detection(Li-Ion 3.7V or NIMH) then charging percentage image will flash meaning the start of charging. At the same time the LCD displays also charge voltage, capacity, time and current. When charge completes, it will display"100%"mean while it shows "End" on the LCD right down corner.
LCD displaygraphic reference:
Electrical Parameters:
1. Input : AC cable 110-240V 50/60Hz (included)/ DC 12V 1A(selective)
2. Output voltage: DC 4.2V for Li-Ion 3.7V
DC 4.35V for Li-Ion 3.8V( IMR)
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd
3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),
1000mA*2, 500mA*3 500mA*4
NiMH/NiCd: 1000mA*2, 500mA*3 500mA*4
4. Constant voltage, cut-off current: less than 100mA
5. Standby current: less than 15mA
Compatible battery types and sizes
Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA,SC, C
Size and weight:
133mm x 100mm x 35mm (L x W x H)
Weight: approx175g (not including AC cable)
Electrical Parameters:
1. Input : AC cable 110-240V 50/60Hz (included)/ DC 12V 1A(selective)
2. Output voltage: DC 4.2V for Li-Ion 3.7V
DC 4.35V for Li-Ion 3.8V( IMR)
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd
3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),
1000mA*2, 500mA*3 500mA*4
NiMH/NiCd: 1000mA*2, 500mA*3 500mA*4
4. Constant voltage, cut-off current: less than 100mA
5. Standby current: less than 15mA
Compatible battery types and sizes
Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA,SC, C
Size and weight:
133mm x 100mm x 35mm (L x W x H)
Weight: approx175g (not including AC cable)

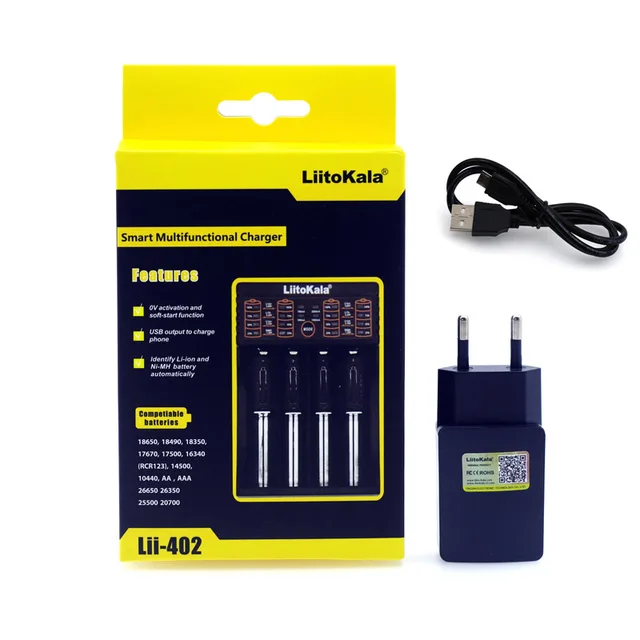

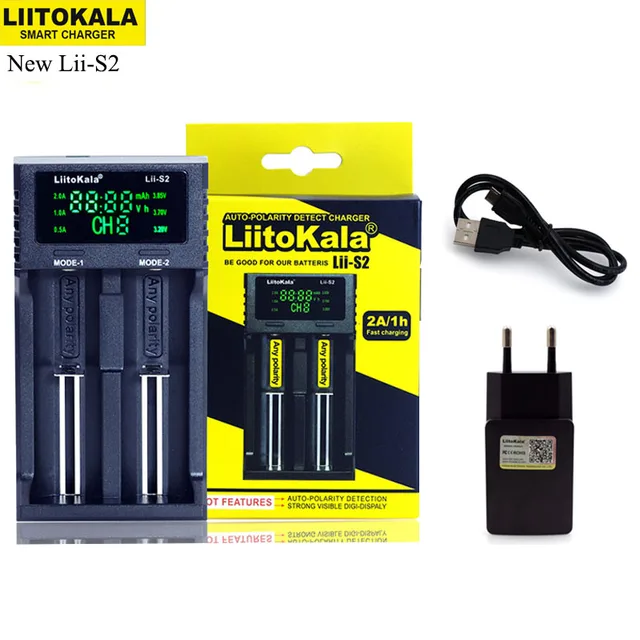

Shipping list:Lii-S2 Charger*1USB cable*15V 2A plug*1Instruction manual*1 Lii-402 List:1, Liitokala Lii402 whole package: Lii402 charger + USB cable + 5V 2A charging plug + manualLii-202 List:1, Liitokala Lii202 package: Lii202 charger *1+ USB cable*1 + 5V 2A charging plug *1+ manual*11. WORLDWIDE. (Except some countries and APO / FPO)2. Orders processed timely after payment verification.3. We only ship to confirmed order addresses. Your order address MUST CORRESPOND TO your Shipping address.4. The pictures shown are not the actual item and are just for your reference.5. TRANSFER TIME SERVICE is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.6. If you have not received your shipment within the estimated days from the payment, please contact us. We will follow the dispatch and get backto you as soon as possible with a reply. Our goal is customer satisfaction!7. Due to differences in status and stock of the time, we will choose to ship your item from our first available warehouse for fast delivery.1. Limited warranty on defective items (excluding items damaged and / or poorly upon receipt). Accessories come with a warranty.2. Defective items MUST be reported and returned within the warranty period (and in the original packaging if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.You agree to all above-policy items listed after ordering on aliexpress!1. All items MUST be returned in the original packaging and you MUST provide us with shipping tracking number, specific reason for return, and your order.2. WE WILL RETURN YOUR FULL VALUE OF THE WINNER, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER Buyer and Seller cancel the aliexpress transaction. OR, you may choose to have a substitute.3. We will bear all shipping costs if the product (s) is (are) not as advertised.
