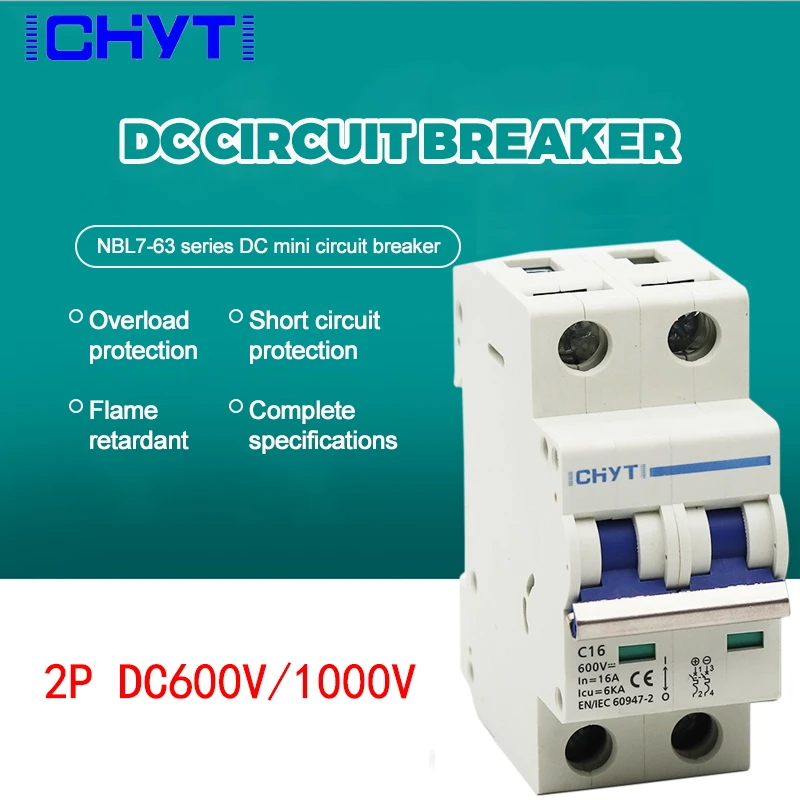

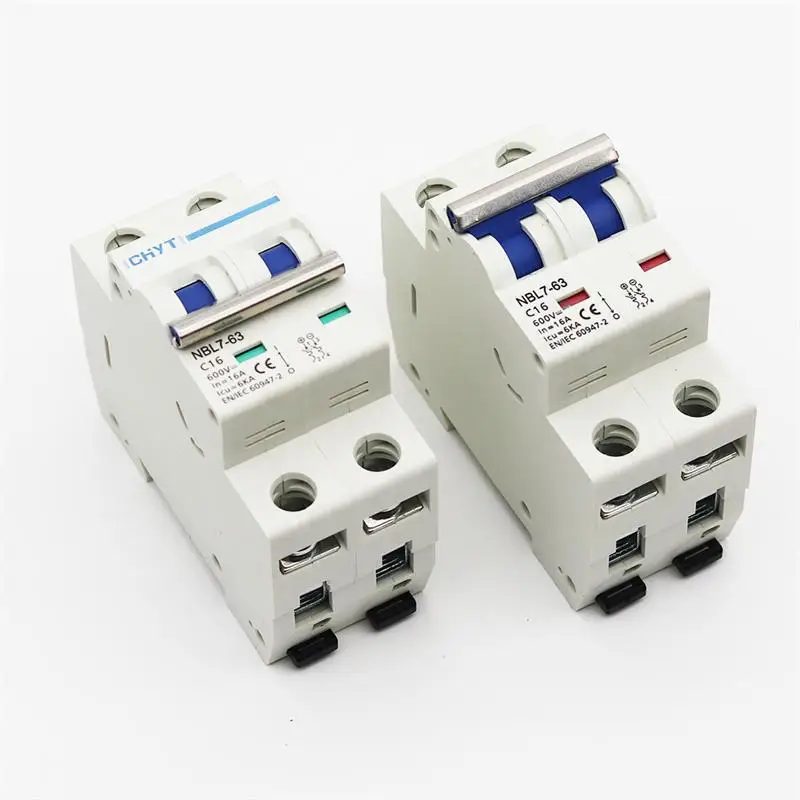

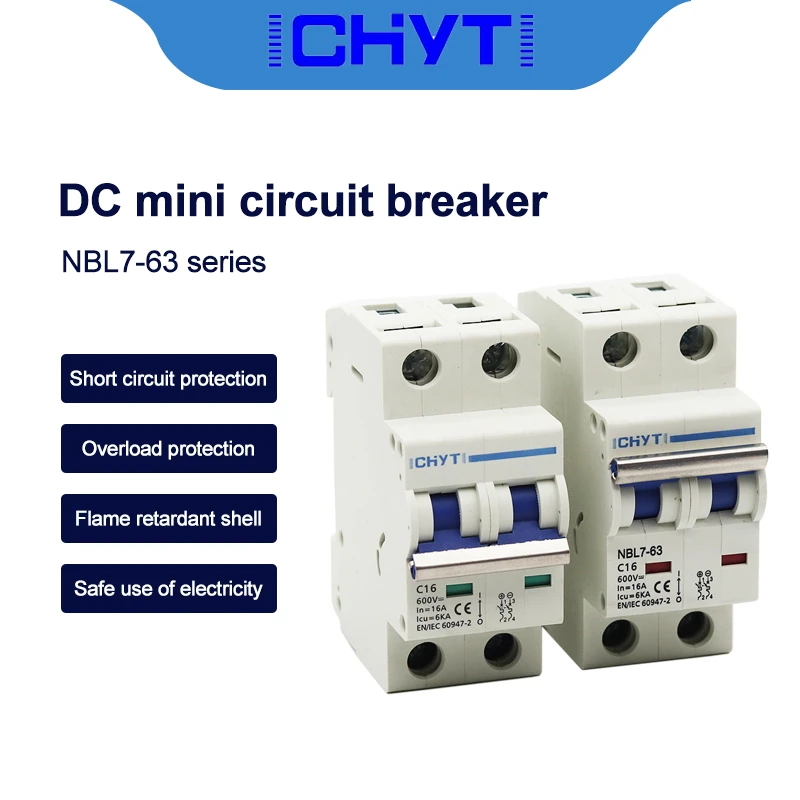

ICHYTI 2P DC 1000V 600V Solar Mini Circuit Breaker 6A 10A 16A 20A 25A 32A 40A 50A 63A DC MCB for PV System

Circuit Breakers>>>Home Improvement

Brand Name ICHYTI

Origin CN(Origin)

Certification CE

Type Mini

is_customized Yes

Model Number NBL7-63

Poles Number

2P 600Vdc

2P 1000Vdc

Rated Current

6A

10A

16A

20A

25A

32A

40A

50A

63A

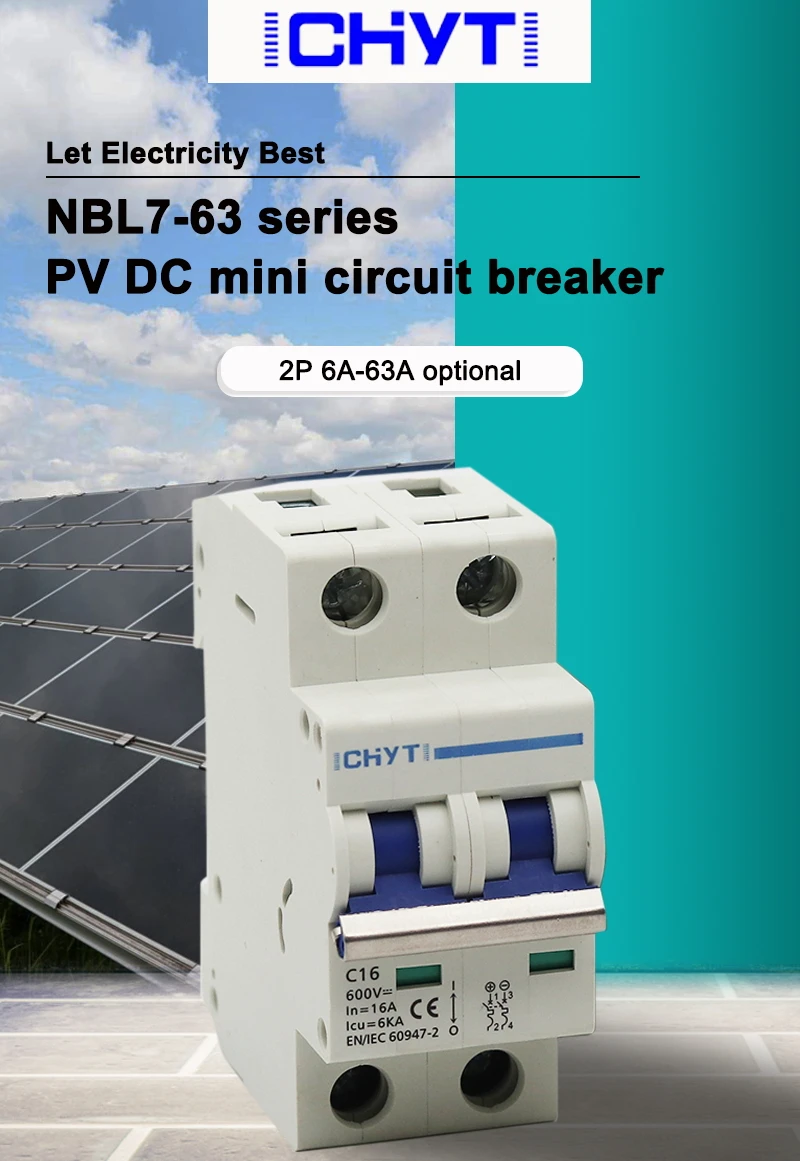

ICHYTI 2P DC 1000V 600V Solar Mini Circuit Breaker 6A 10A 16A 20A 25A 32A 40A 50A 63A DC MCB for PV System

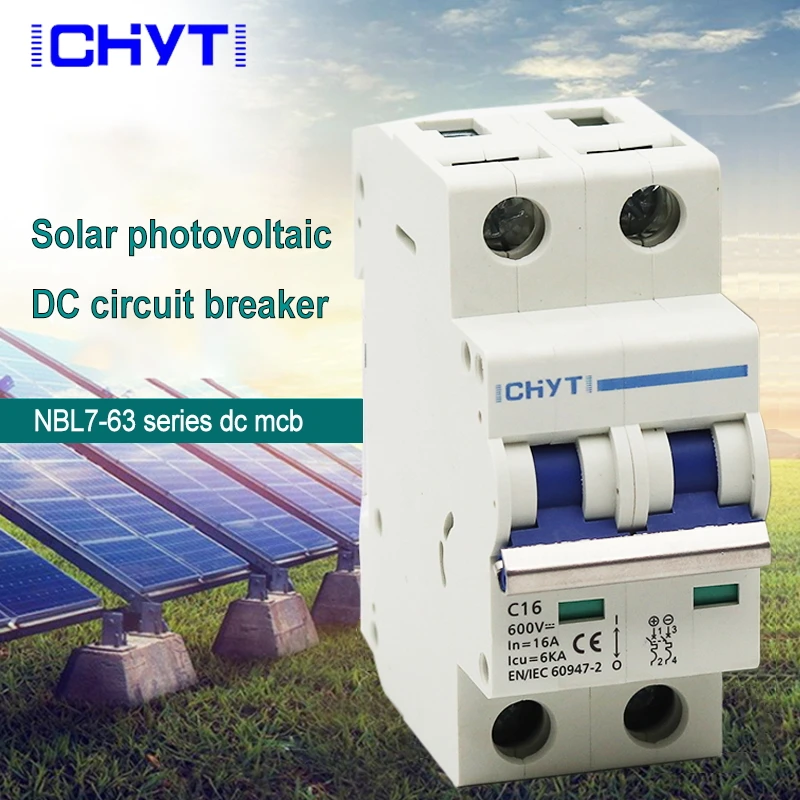

Dc circuit breaker Application:

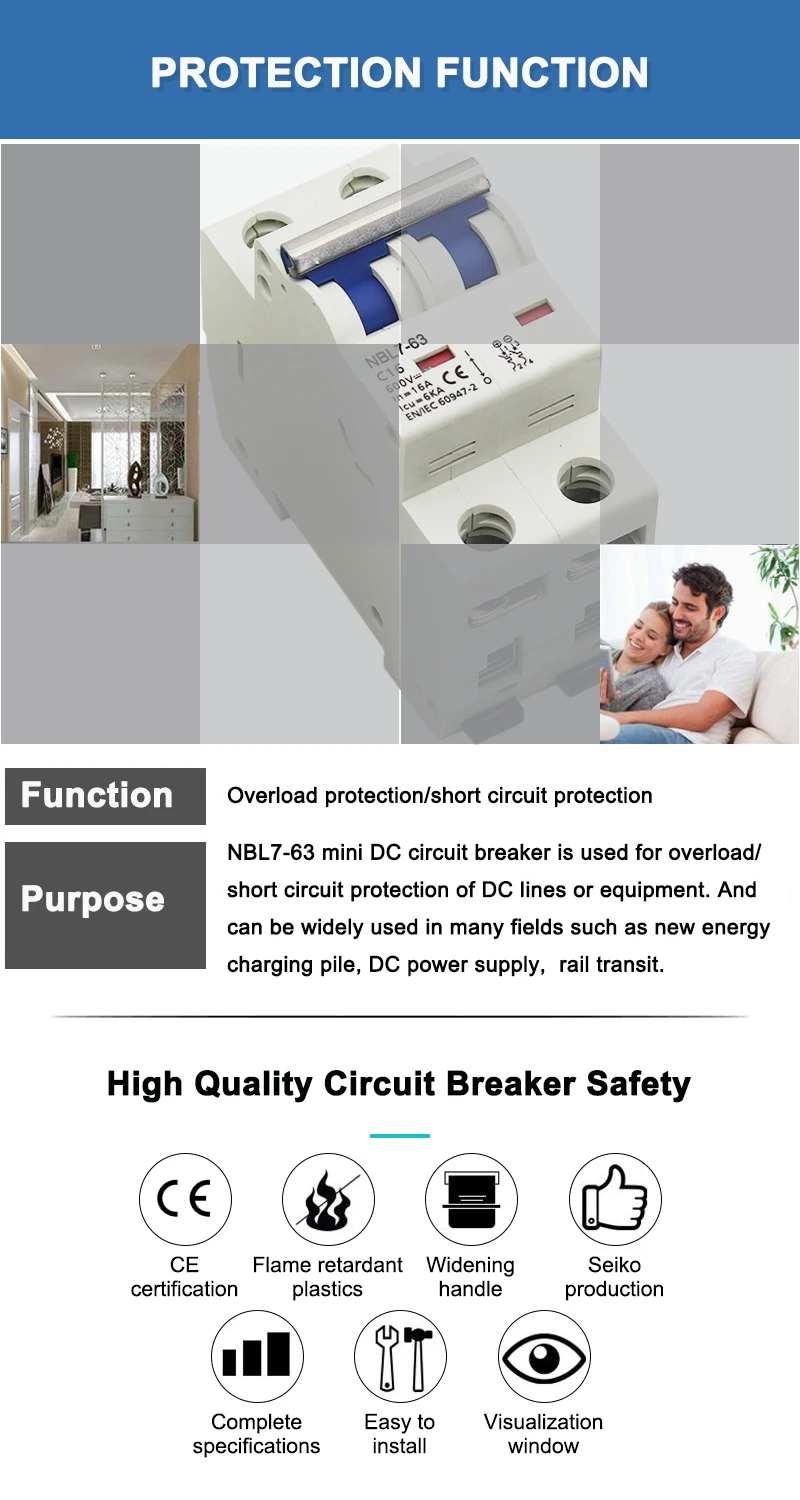

NBL7-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.

DC circuit breaker Features:

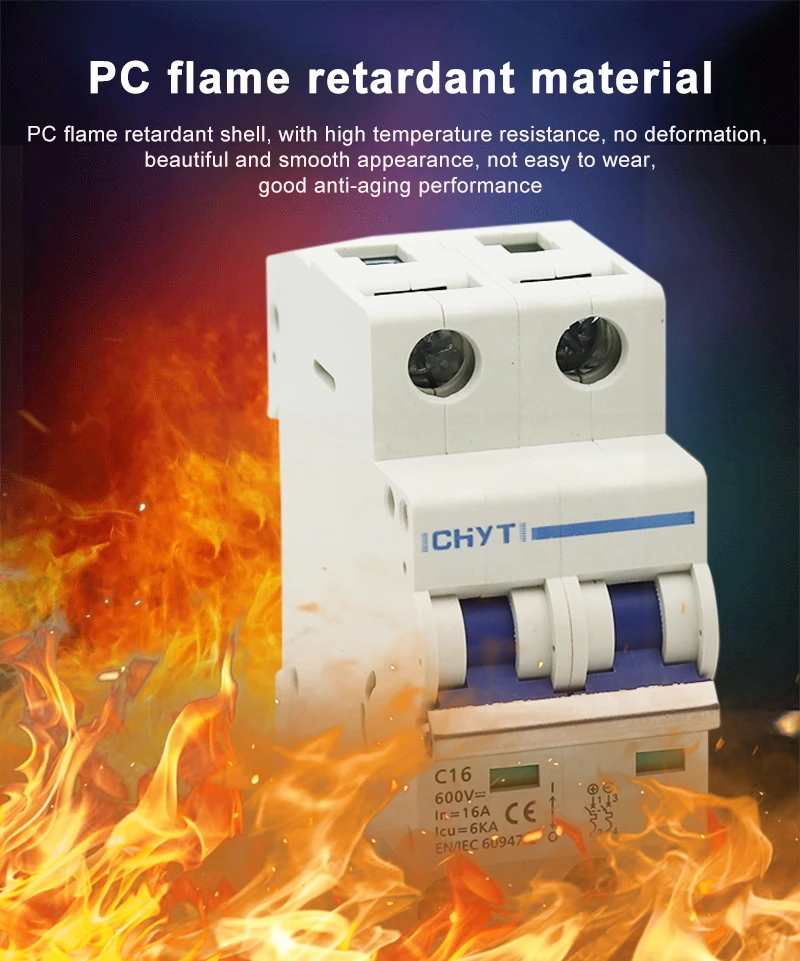

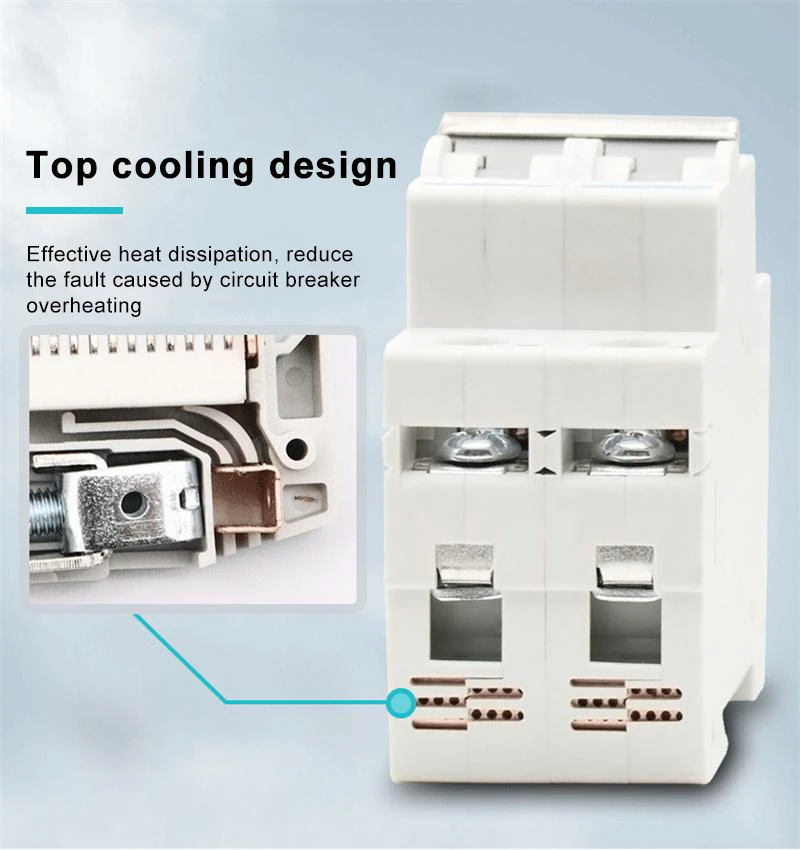

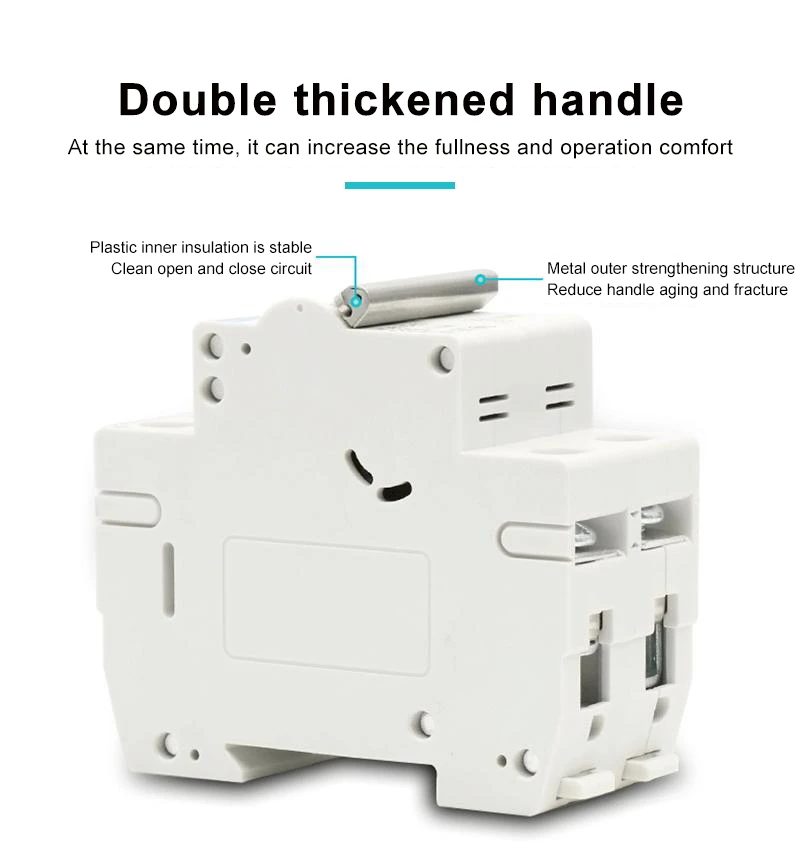

1.Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker4. Safety handle, classic original design, ergonomic

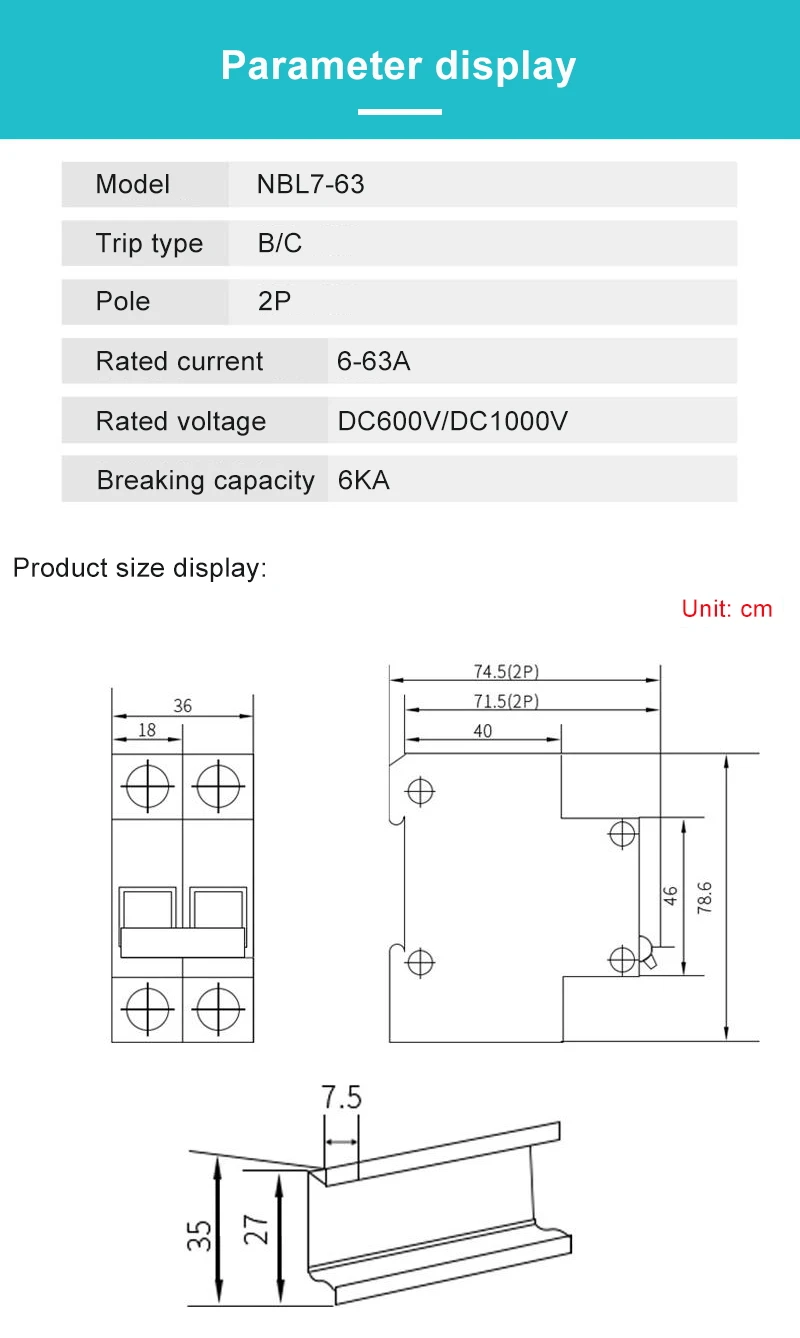

DC circuit breaker Parameters:

Item

DC circuit breaker

Code

NBL7-63

Pole

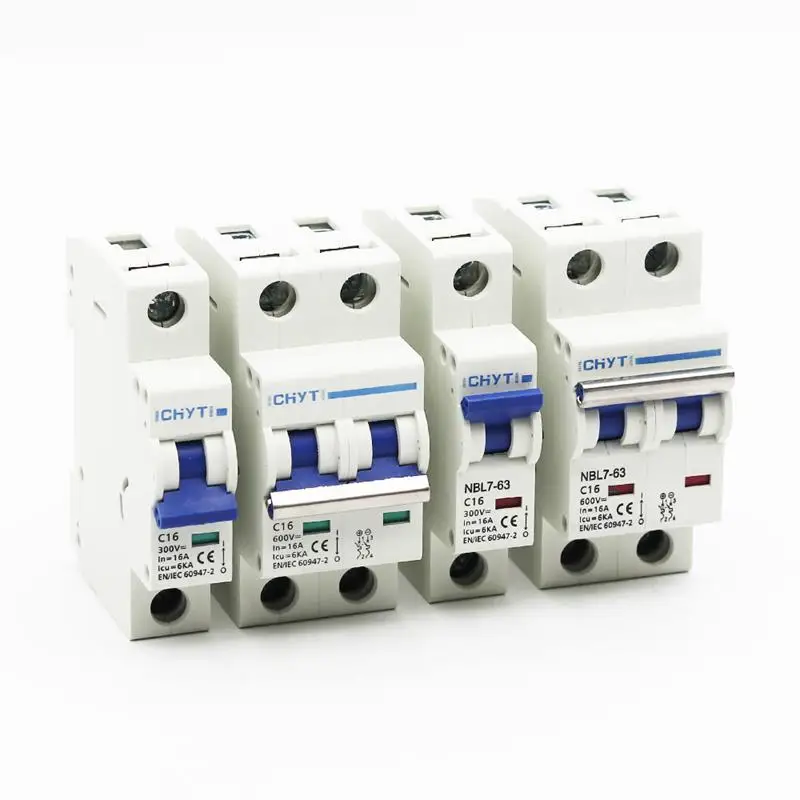

1P,2P,4P

Rated Current(In)

6A,10A,16A,20A,32A,40,50A,63A

Rated Operating Voltage

DC12V-DC1200V

Standard

IEC/EN60947-2

Breaking Capacity

300V/600V/1000 6KA

Characteristic Curve

B,C,D

Working Temperature

'-5' to +40

Protection Degree

IP20

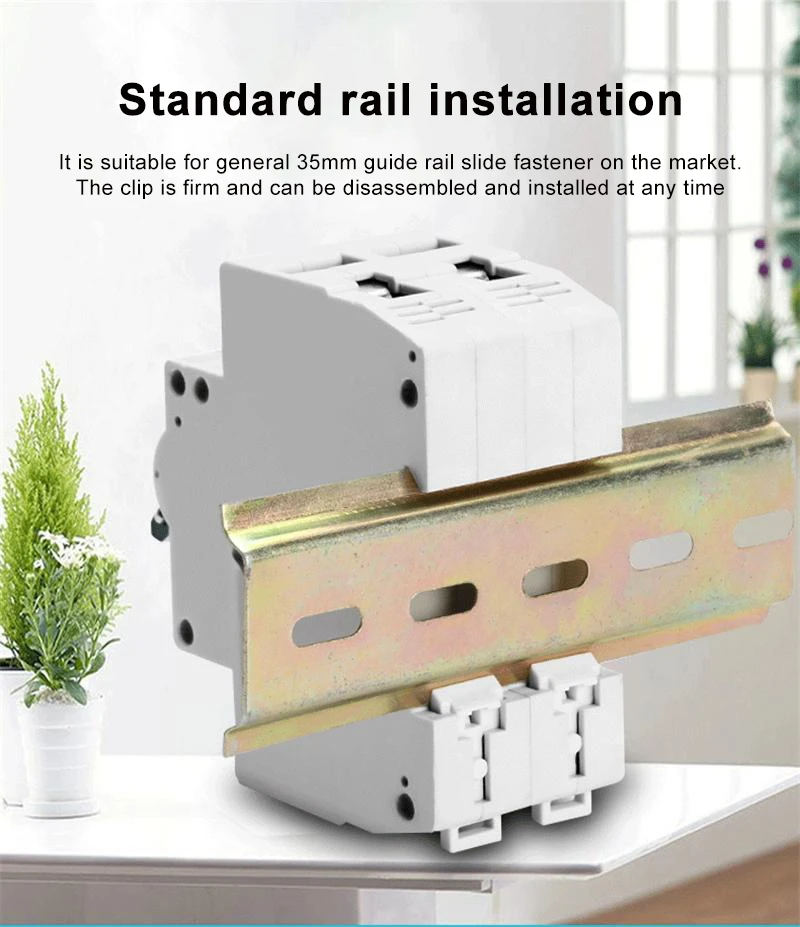

Installation

35MM DIN RAIL
