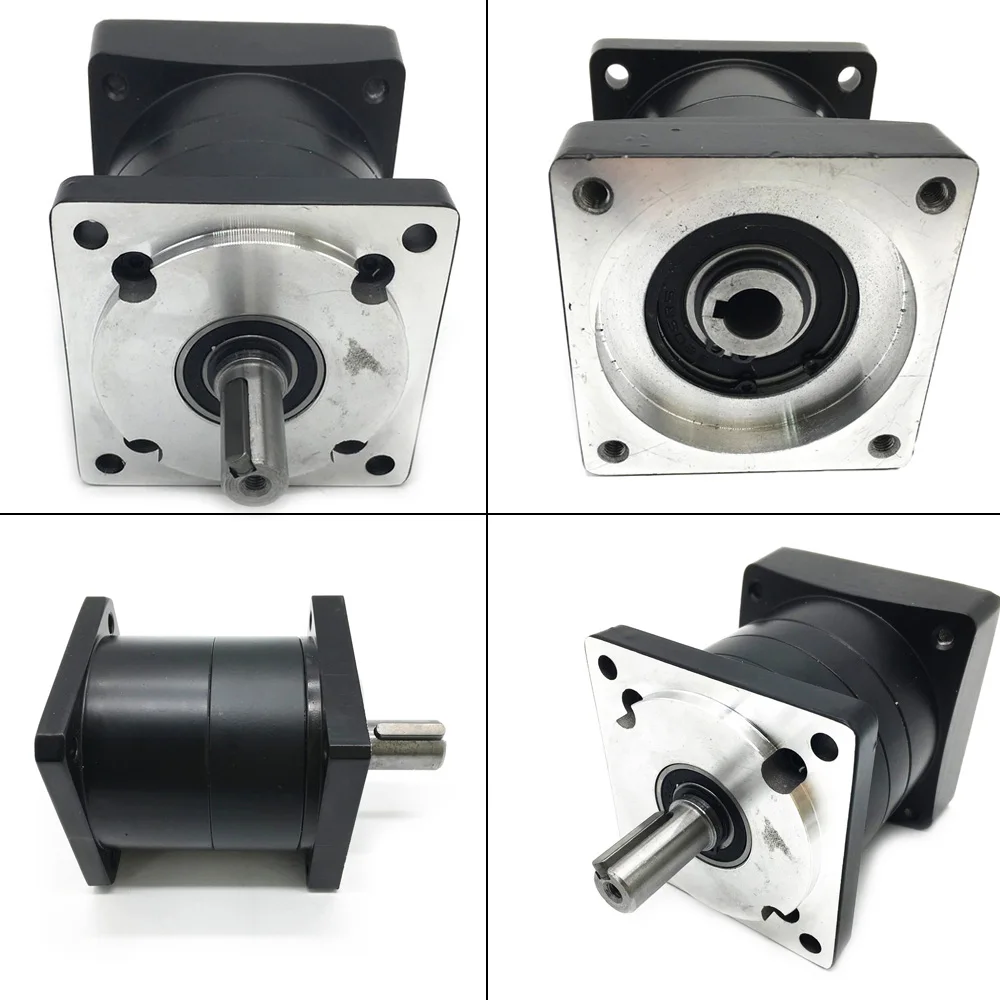

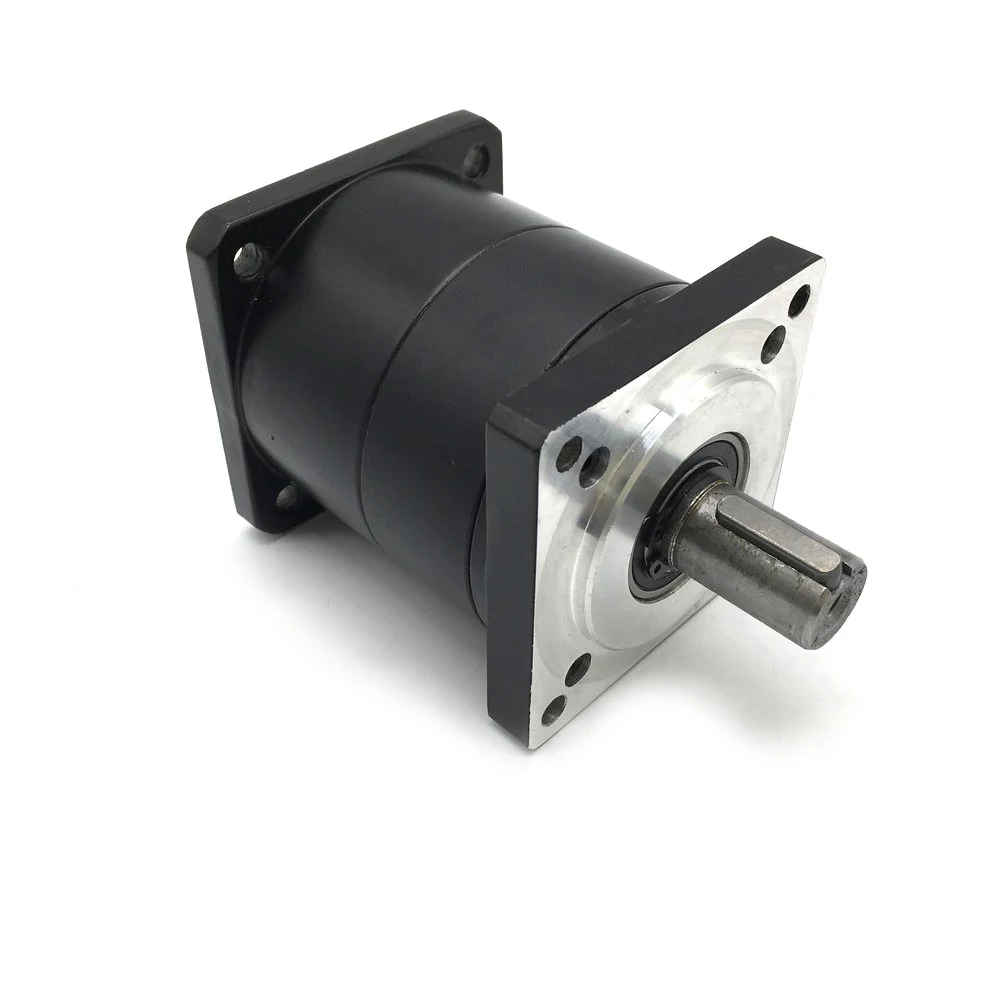

Motor Planetary Gearbox Nema34 86mm Flange 14mm Input 16mm/14mm Output Ratio 3,5,8,10,16,36~216 Speed Reducer for Stepper Motor

Motors & Parts>>>Home Improvement

Brand Name YUN DUAN

Origin CN(Origin)

Certification CCC

Commutation Brush

Model Number 86PX-3-14/16-73-69.5

Type Gear Motor

Protect Feature Drip-proof

Construction Gearbox

Efficiency IE 1

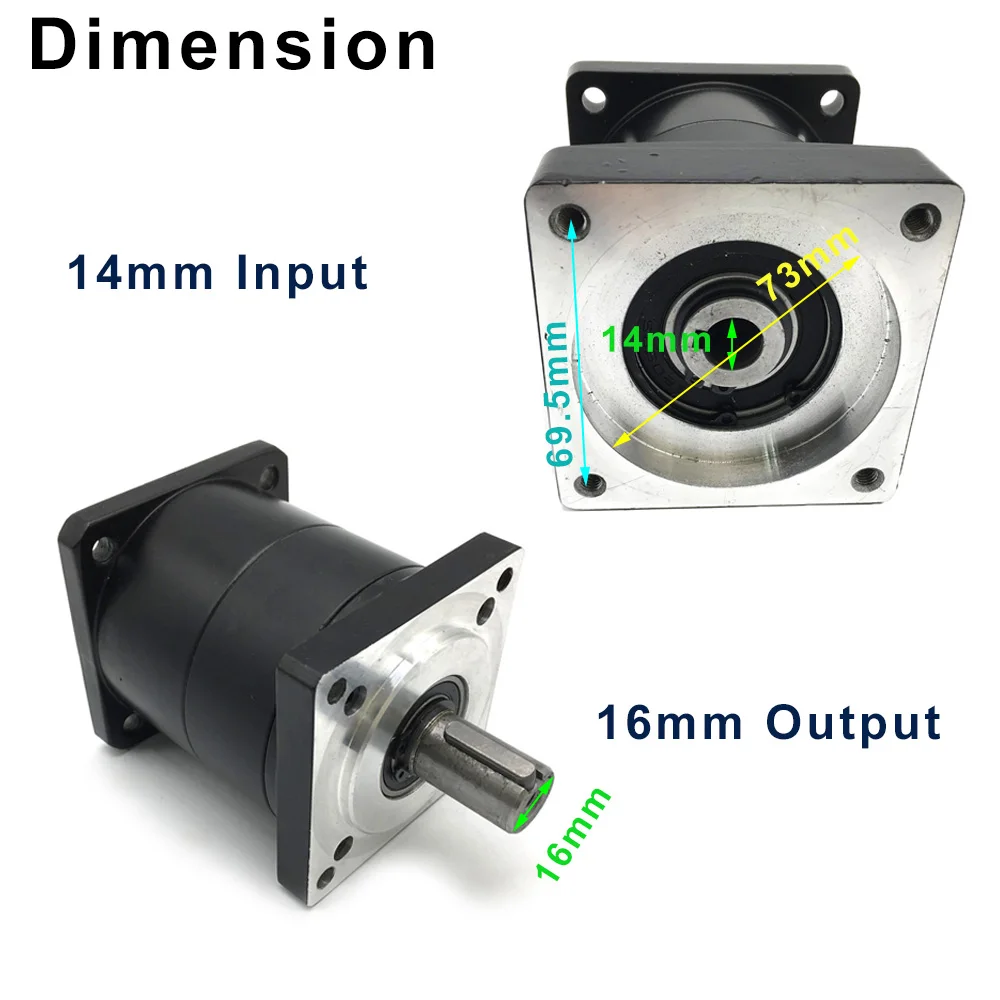

Input 14mm

Output Shaft 16mm/14mm

Rated Input speed less than 3000prm

Noise 60dB

Precision less than 18 Arcmin

Protection level IP65

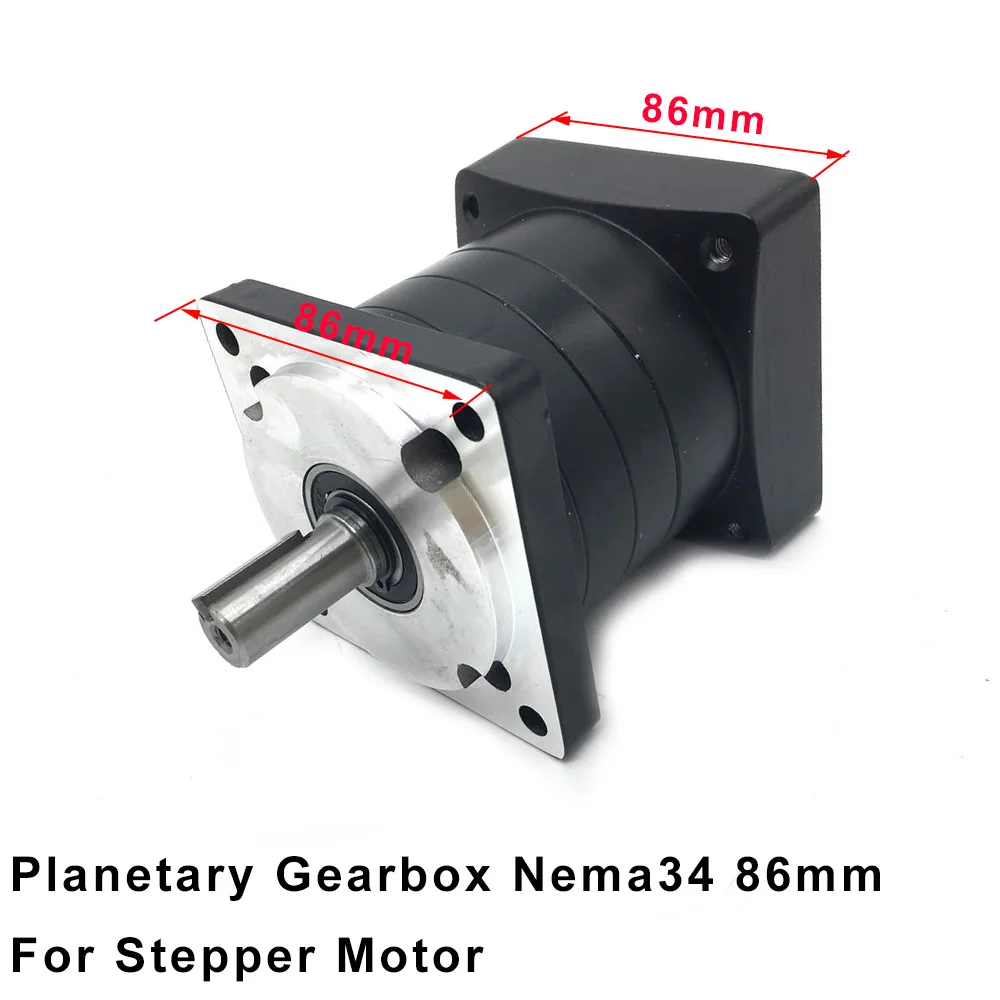

Flange 86mm

Rated Load L1= 30Nm , L2=50NM, L3=60Nm

Gear material 20Cr Carbon steel

Speed(RPM)

Ratio 3

Ratio 4

Ratio 5

Ratio 6

Ratio 8

Ratio 10

Ratio 16

Ratio 24

Ratio 36

Ratio 64

Ratio 96

Ratio 100

Ratio 120

Ratio 125

Ratio 150

Ratio 216

Voltage(V)

14mm Output

16mm Output

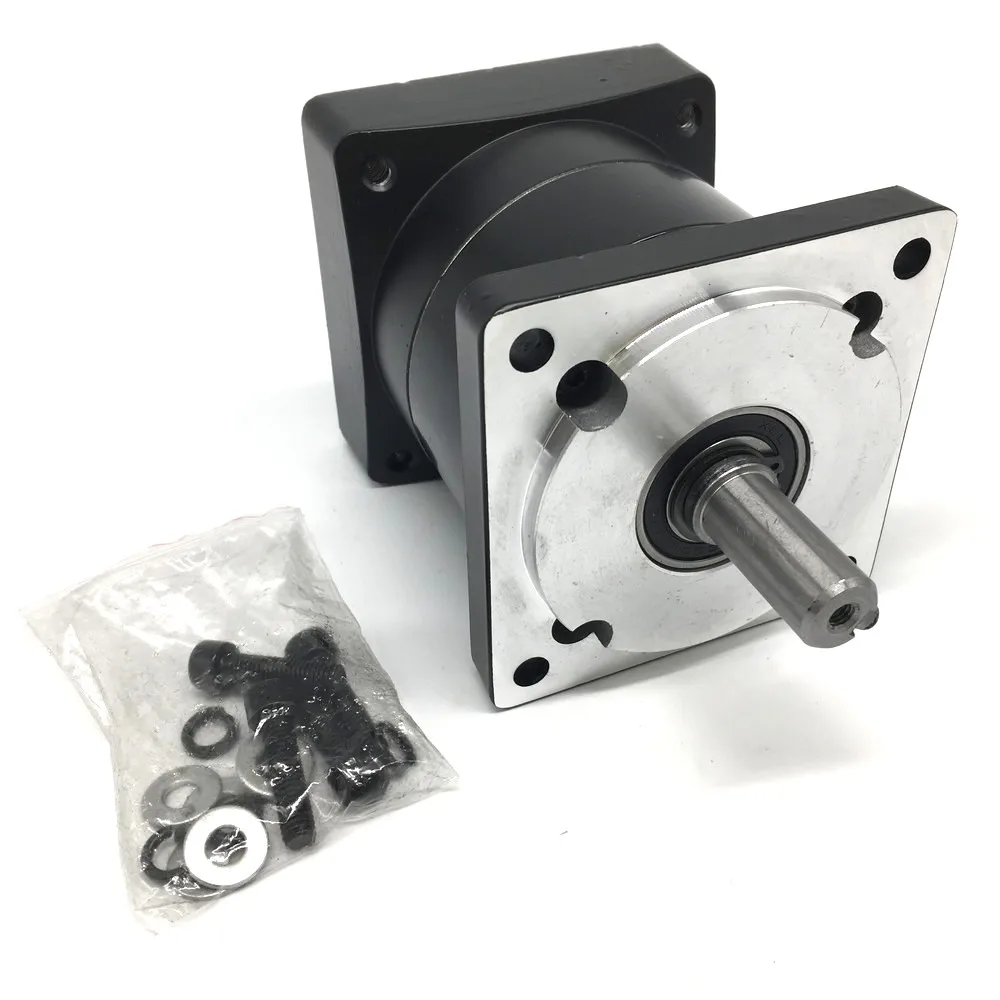

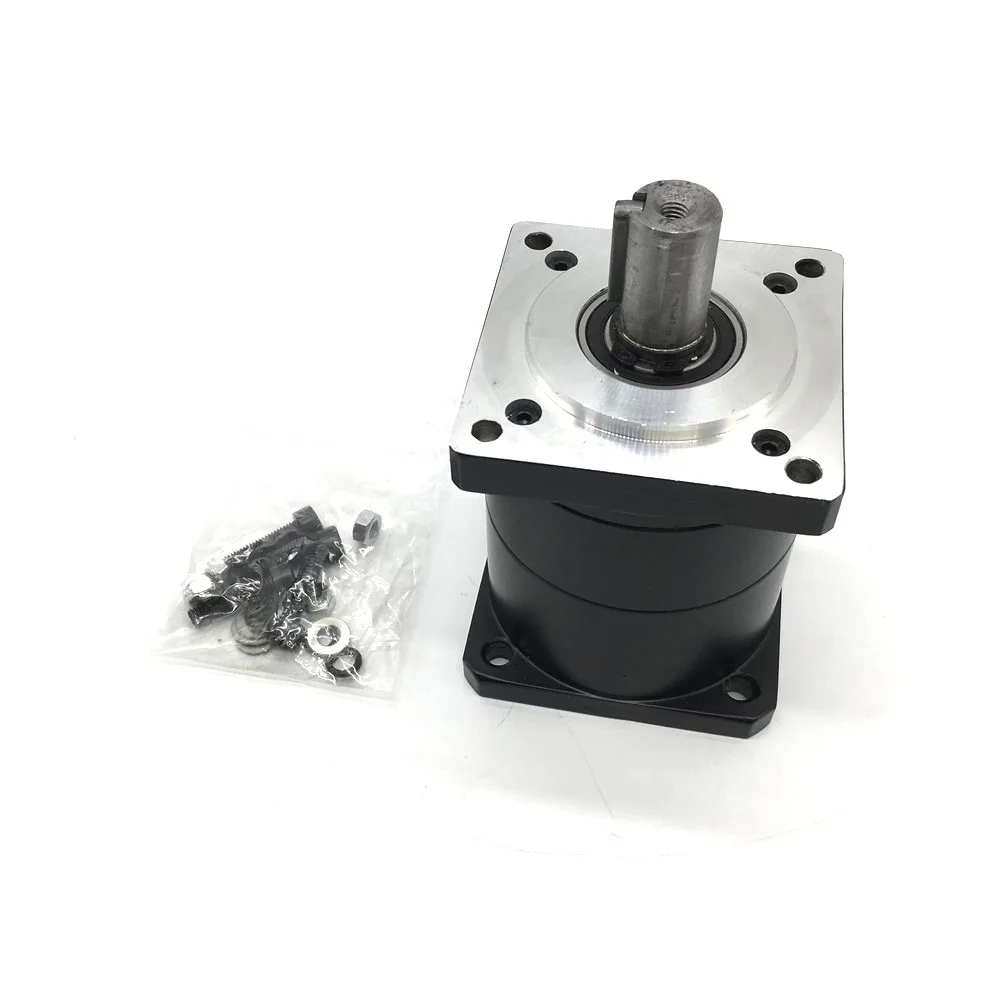

1x Planetary Gearbox 1x Key 4x Install screws   Technical Parameters 86PX Nema34 Reducer Stage Stage 1 Stage 2 Stage 3 Reduction ratio 3/4/5/6/8 10/16/24/36 64/96/100/120/125/150/216 Input (MM) 14 14 14 Output shaft (MM) 16/14 16/14 16/14 Keyway (MM) 5 5 5 Body length (MM) 79 93, 85(10:1) 107 Rated load (N.M) 30 50 60 Maximum load (N.M) 50 80 100 Full load efficiency (%) 95 90 85 Backlash Precision (arcmin) ≦18 ≦25 ≦35 Rated input speed (RPM) ≦3000 ≦3000 ≦3000 Protection level (IP) 65 65 65 Noise (dB) ≦60 ≦60 ≦60 Average service life (H) ≈20000 ≈20000 ≈20000 Gear material 20Cr Carbon steel 20Cr Carbon steel 20Cr Carbon steel

<
