JDiag PowerPro P100 Electrical Circuit Tester for Cars Trucks and Motorbikes Multi-Lingual
Diagnostic Tools>>>Automobiles & Motorcycles
Brand Name JDiag
External Testing Certification ce
Origin CN(Origin)
Model Name P-100
Electronic No
Hardware Version NEW
Item Height 3.9inch
Item Length 10.6inch
Power 12V
Material Type ABS
Item Type Electrical Testers & Test Leads
Item Weight 1.3kg
Software Version NEW
Voltage Support wide input voltage range from 9V to 70V
Item Width 7.1inch
Display TFT color display (160 x 128 dpi)
DC voltage range 0-65V +1 digit
Resistance range 0-200 K ohm
Ships From
China
United States
Color
Language
english
Spanish
French
Italian
Russian
German
Portuguese

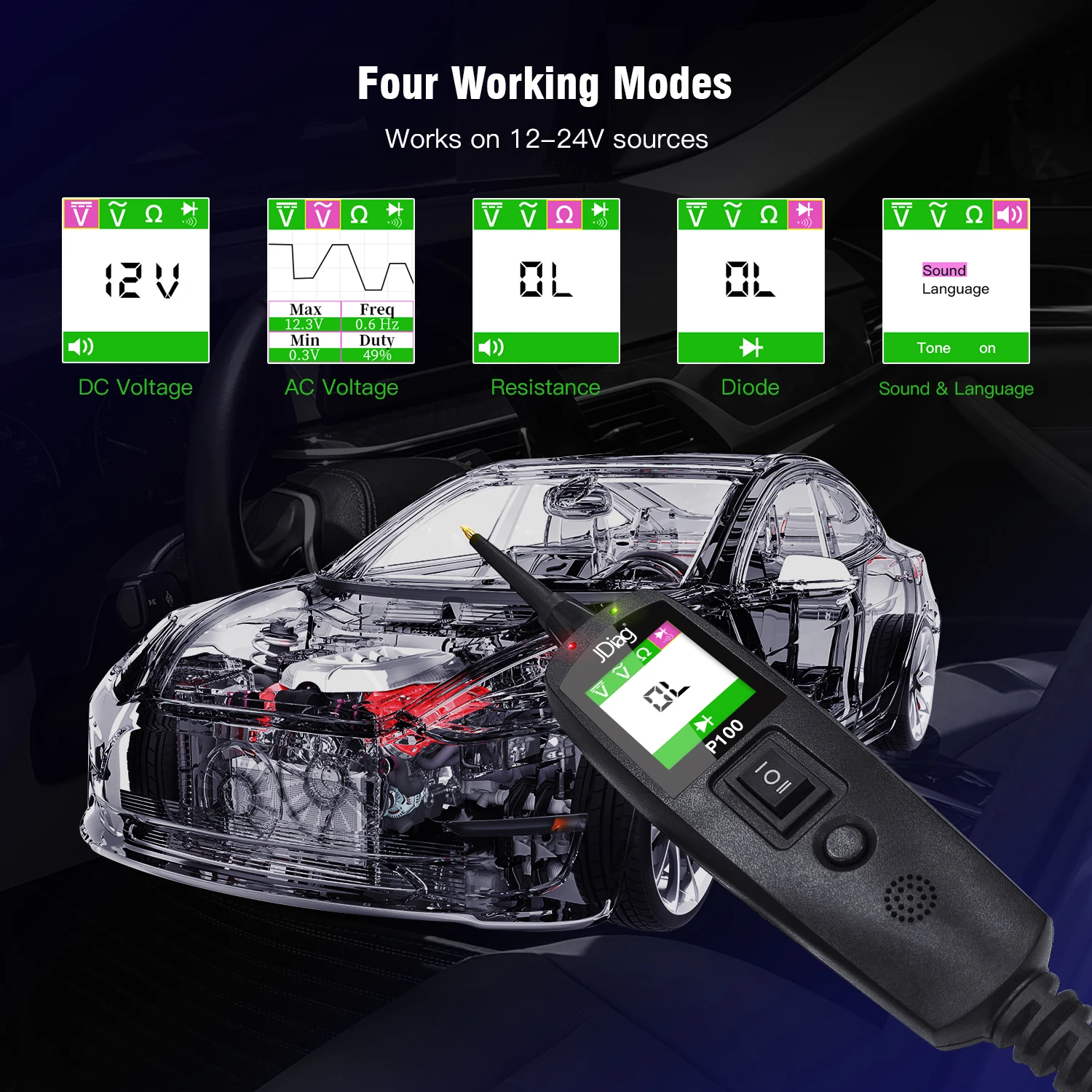

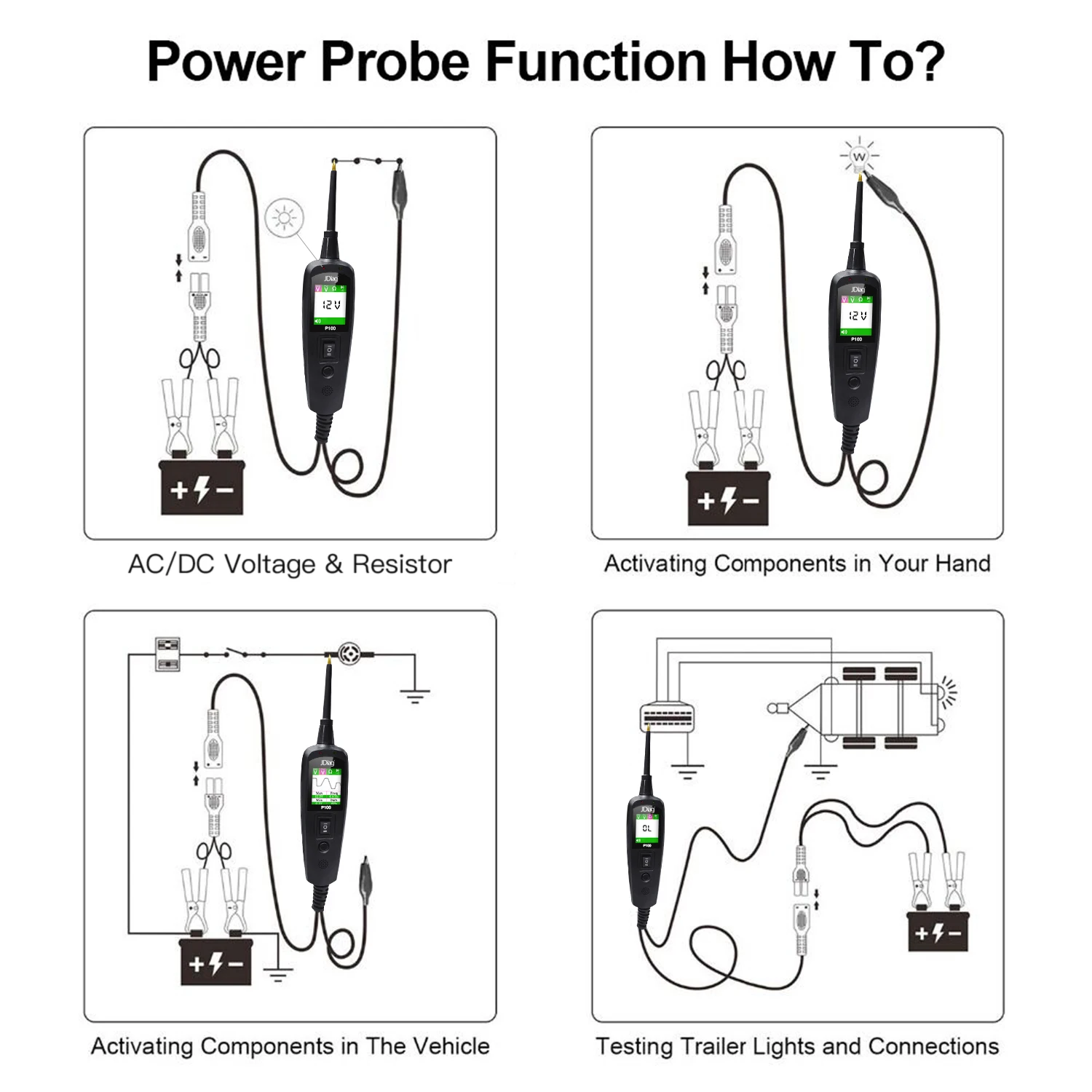

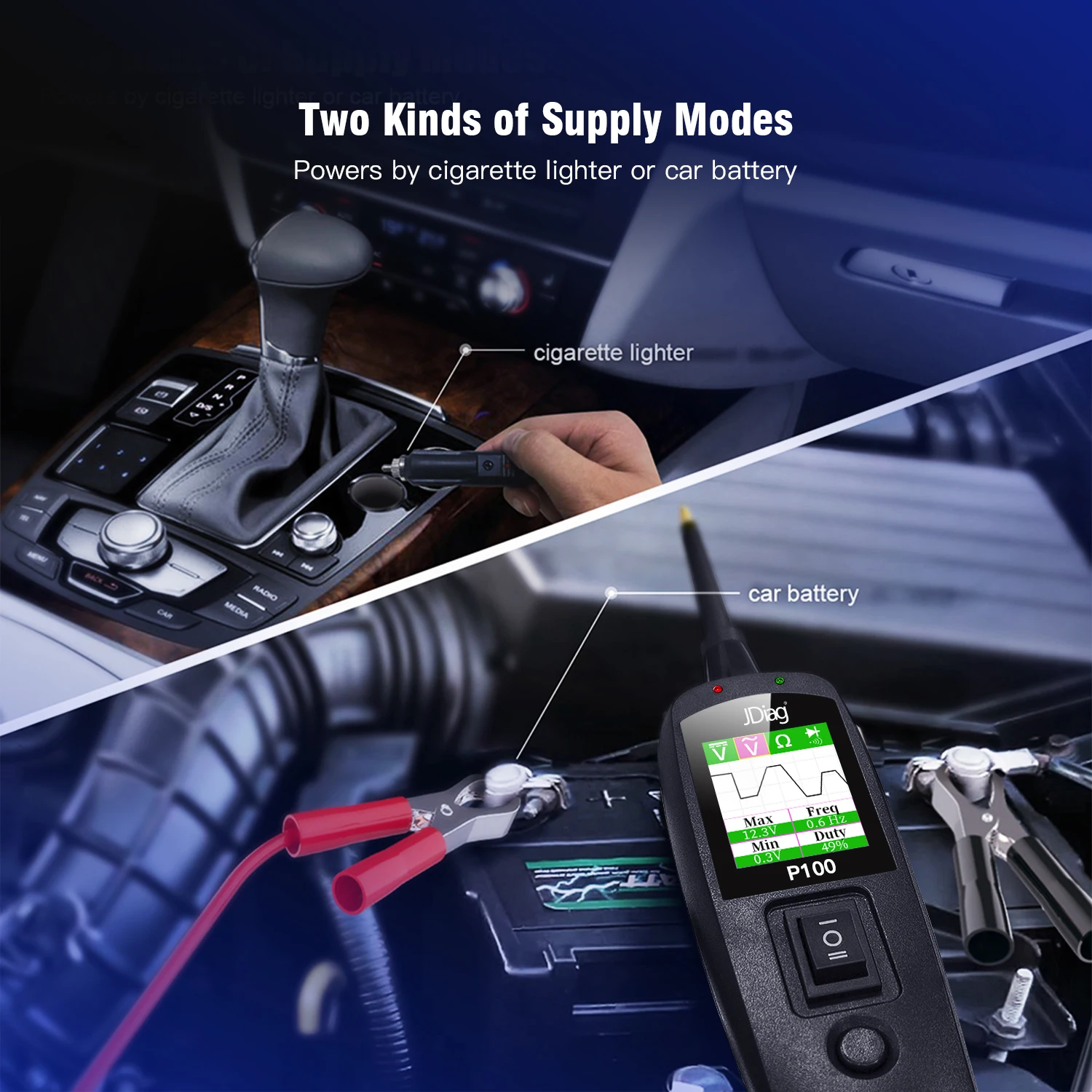

JDiag Power Pro P100 New Generation Automotive Electrical Circuit System Tester for Cars and TrucksMulti Languages Support : English, German, French, Spanish, Italian, Russian, Portuguese.JDiag Original Automotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V1.Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.2.Resistance Continuity Testing- LCD Screen display the value of resistance.3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.4.Components Activation in your hand, in the vehicle or W/Ground.5.Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.6.Checking for Bad Ground Contacts and Locating Short CircuitsSpecifications:1. Display: TFT color display (160 x 128 dpi)2. Operating Temperature: 0 to 60°C (32 to 140 F°)3. Storage Temperature: -40 to 70°C (-40 to 185 F°)4. External Power: 12.0 or 24.0 V power provided via vehicle battery5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mmTest Tool Specifications:DC voltage range : 0-65V +1 digitResistance range : 0-200 K ohmFrequency response of tone pass through0Hz to 10K hz.Circuit BreakerRating current: 1-10 AmpTesting Standard:100% current : no trip150% current: trip in one hour200% current: trip in 3-30 seconds.300% current: trip in 0.5-4.0
