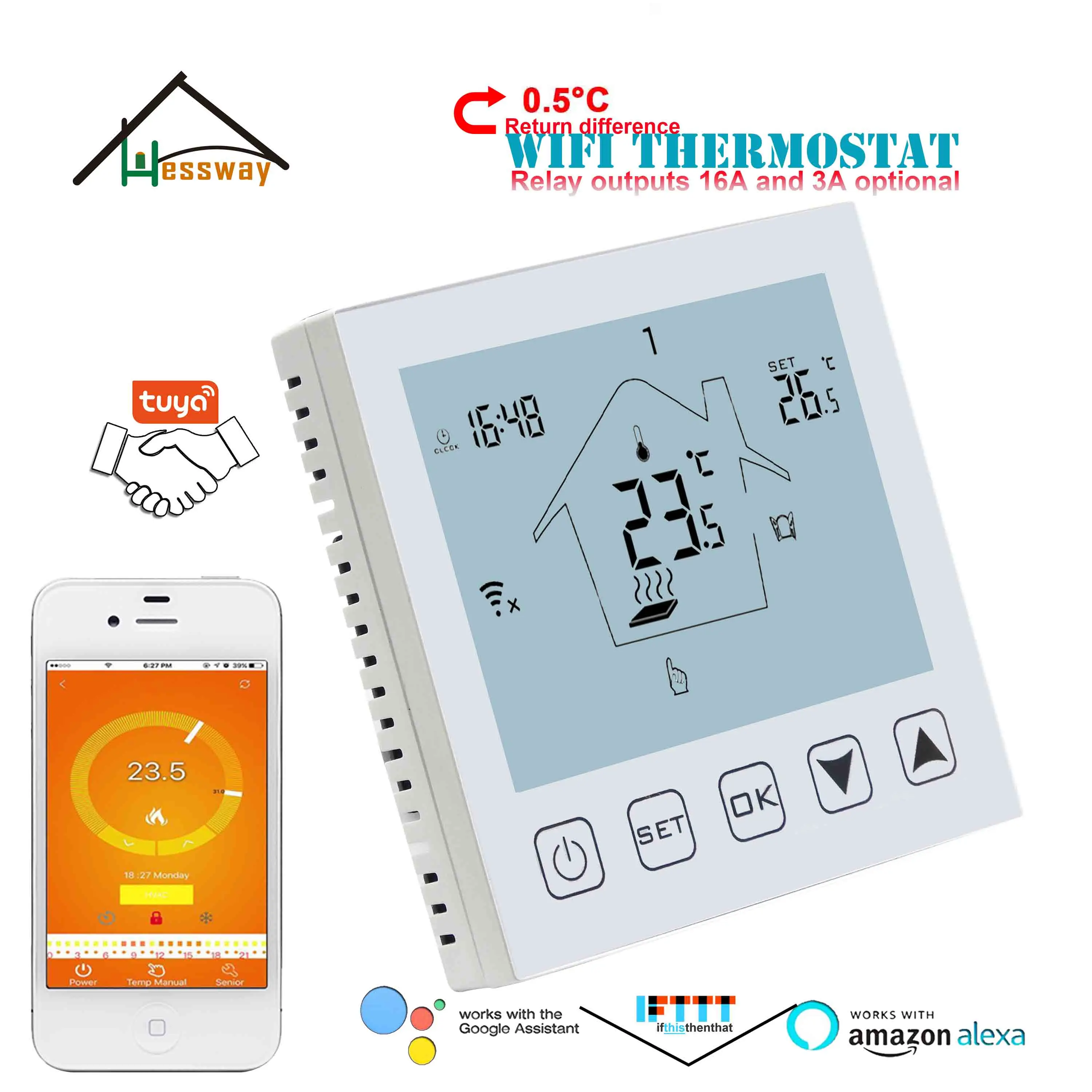

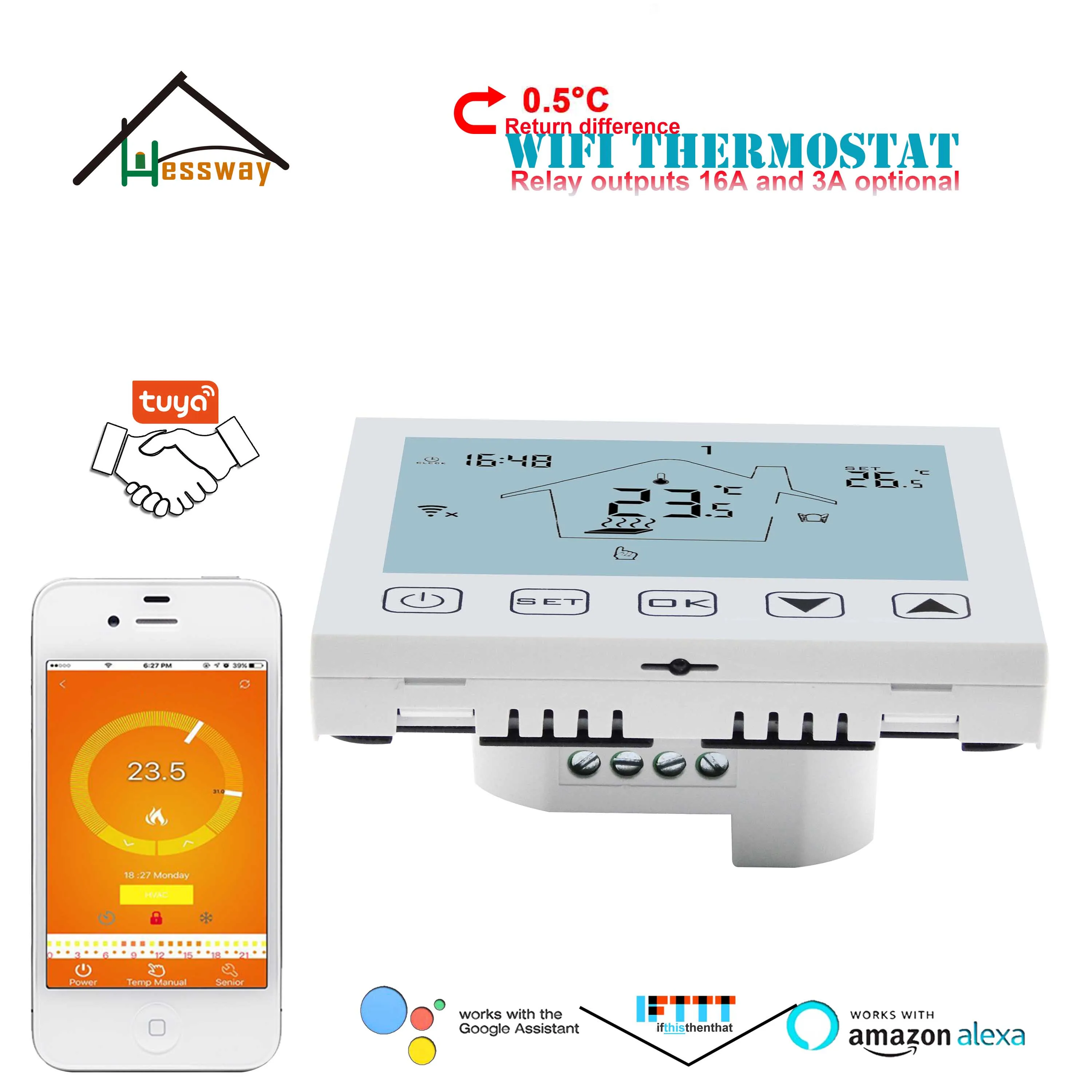

HESSWAY Radiant Floor Heating TUYA WIFI THERMOSTAT for 3A/16A Relay switch

Smart Temperature Control System>>>Home Improvement

Brand Name JUESENWDM

Wattage 250V3A/16A

Model Number WW603/WE603

Material PC+ABS (Flame retardant)

Mobile control APP WIFI

Voltage 90-240VAC 50/60Hz

Display accuracy 0.5°C

Setting temperature highest Limit 20-70℃

Setting temperature lowest limit 1-10℃

Weekly Programmable Set per 1 week as a cycle

Probe sensor NTC(10k)1%

WIFI module TUYA

Unilateral return difference 0.5°C(default 1°C )

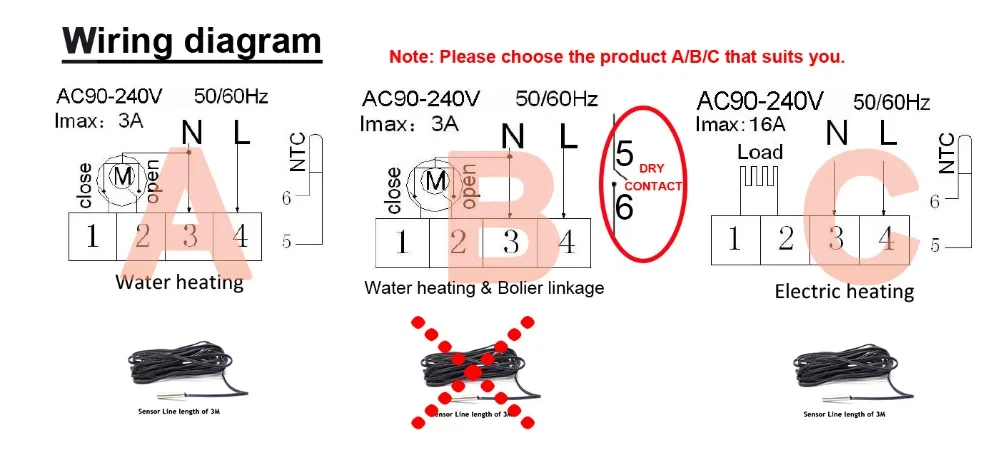

Voltage

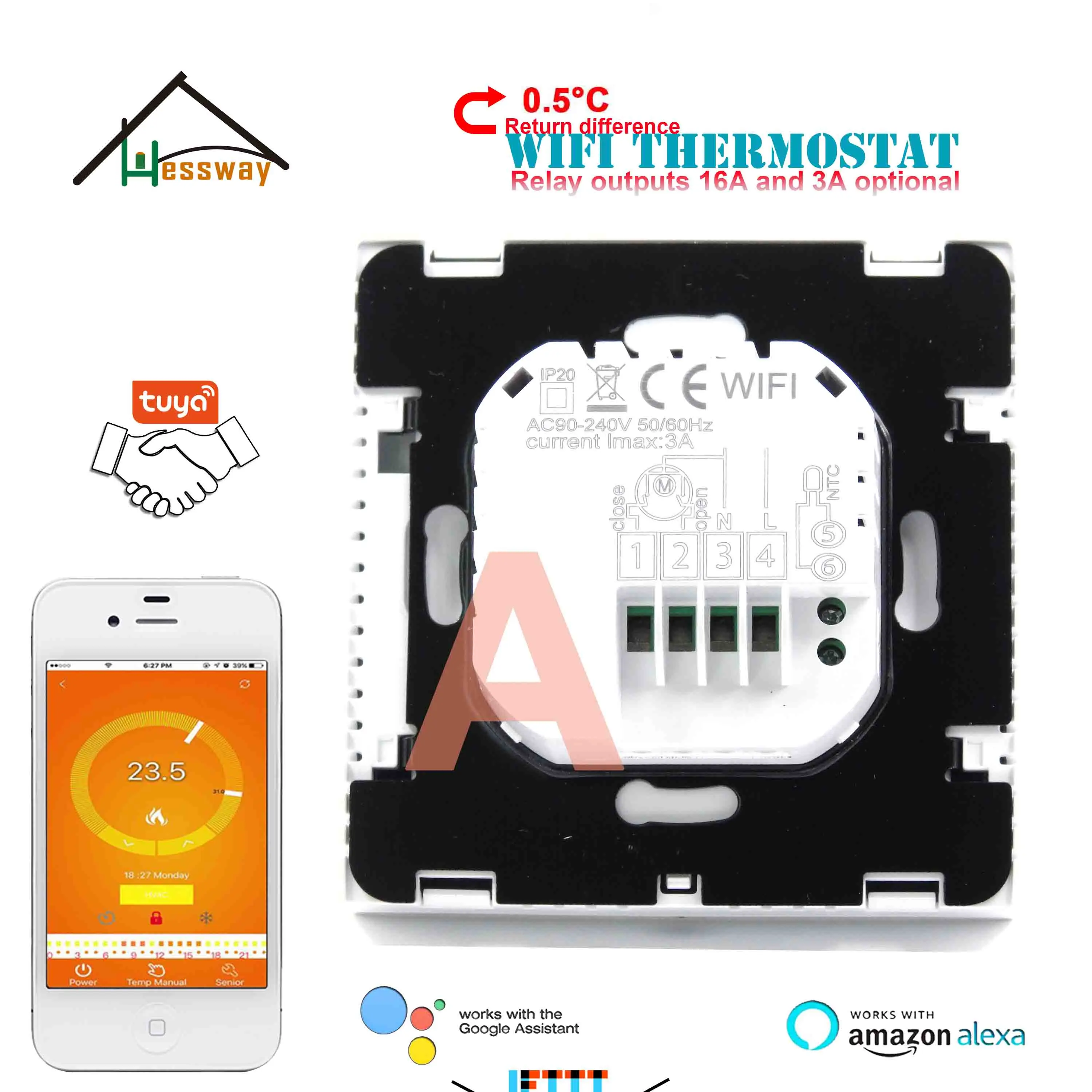

A-3A Valve control

B-3A Boiler valve

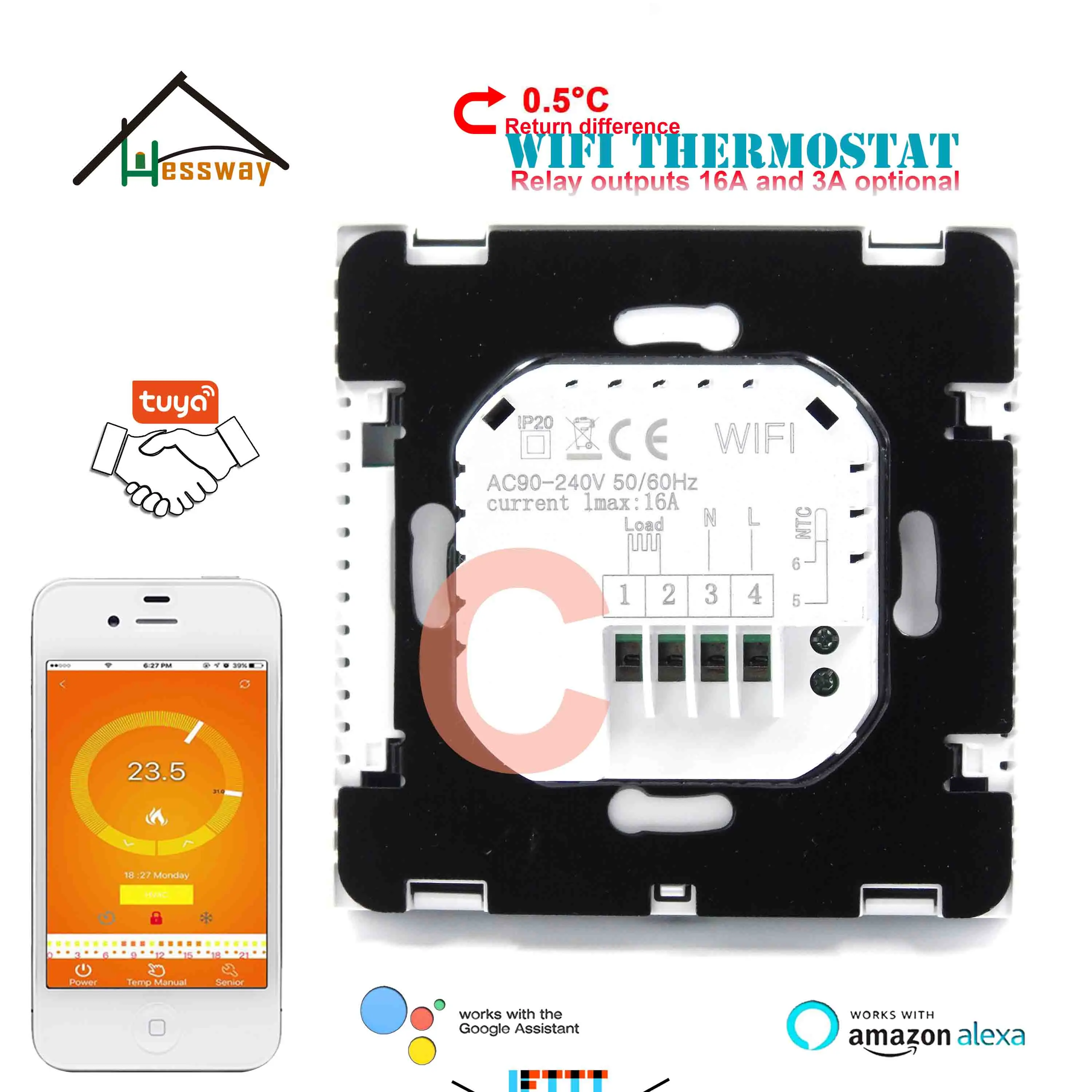

C-16A Electric heat

HESSWAY Radiant Floor Heating TUYA WIFI THERMOSTAT for 3A/16A Relay switch

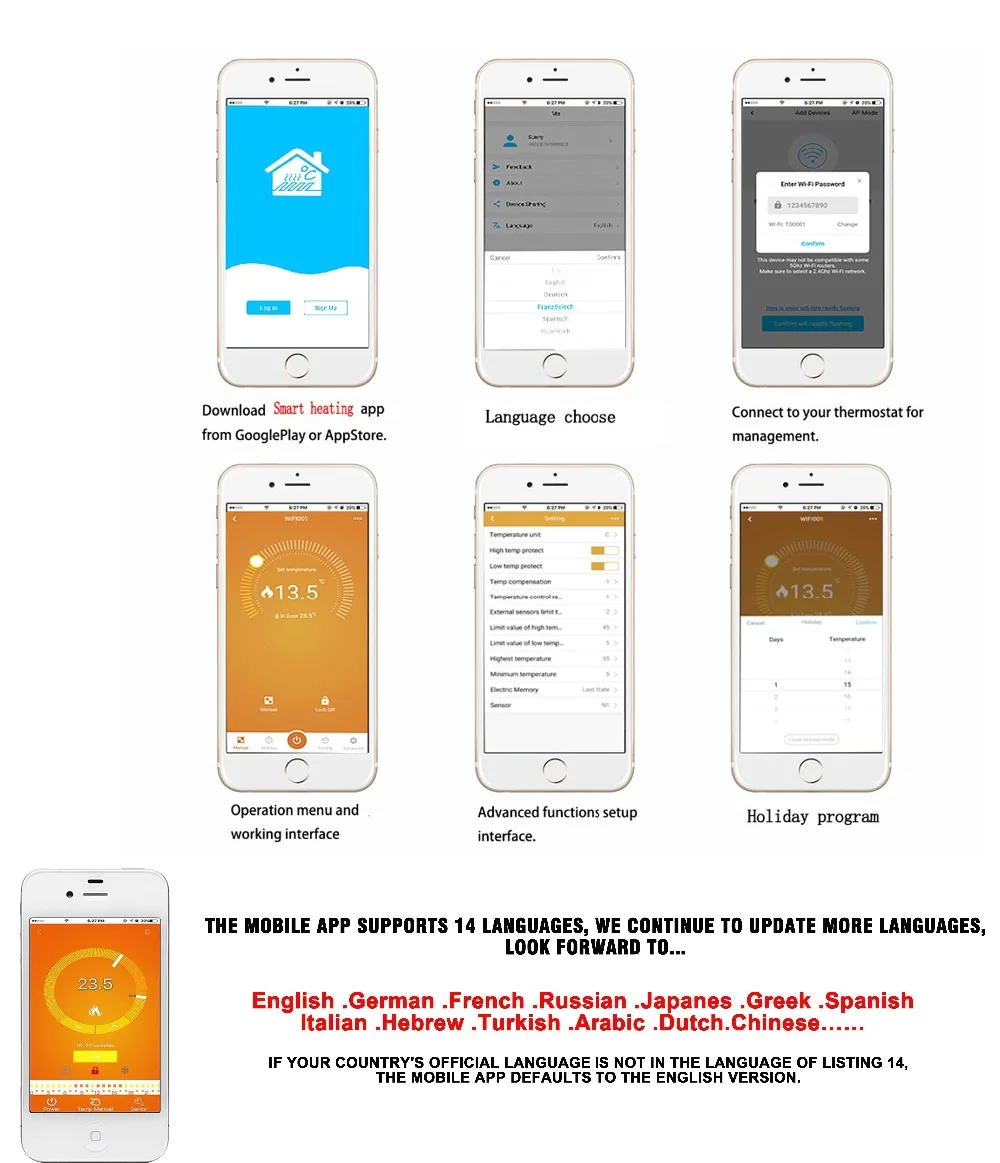

The smart thermostat can control with your smart phone app,also can voice control wih Amazon Alexa and Google home ! It is really very convenient and smart, you can also control the thermostat whether you are traveling or working outside if your phone has a network.

Functions

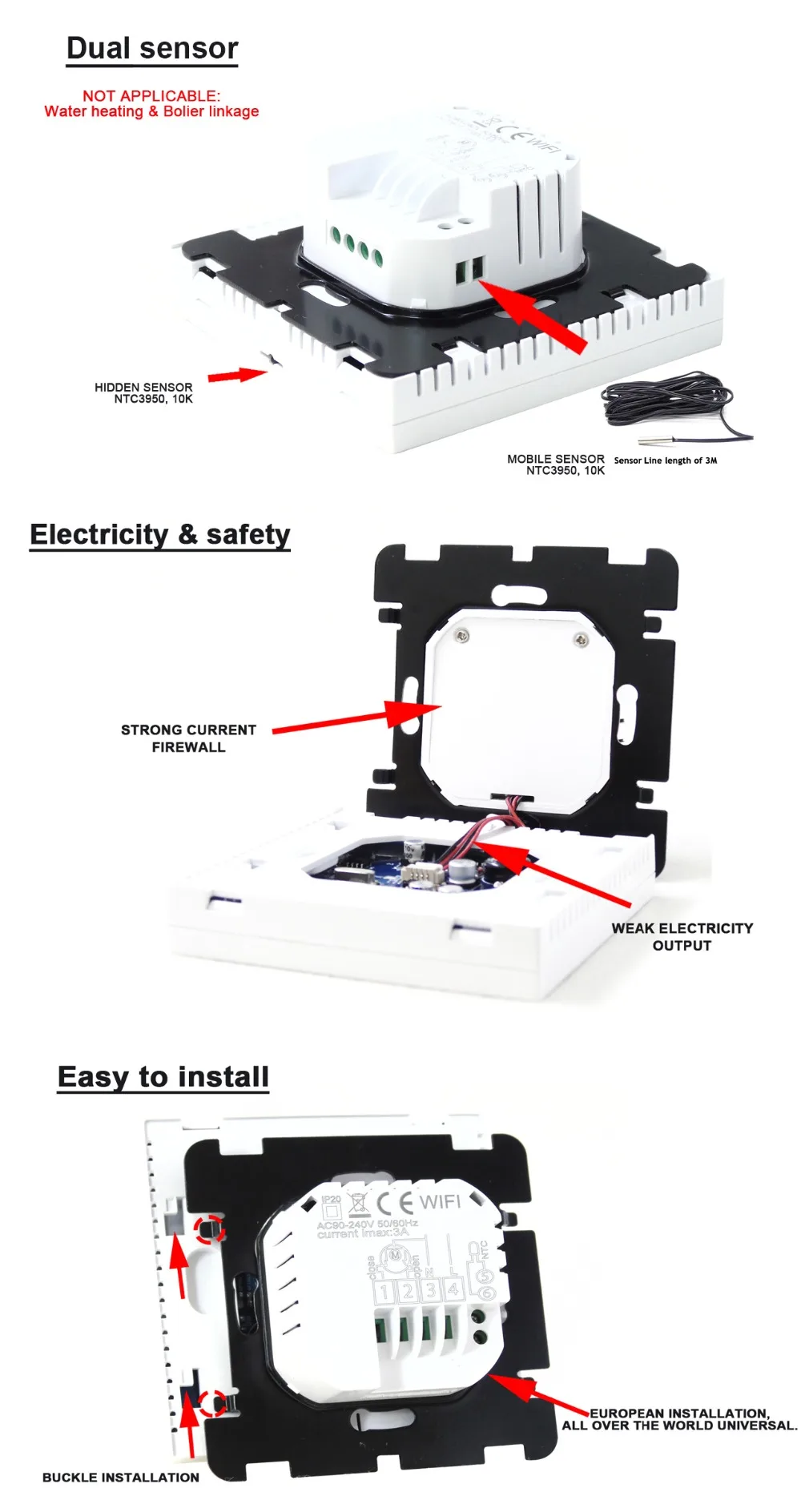

(1) Unilateral return difference 0.5°C(default 1°C ) (2) 0.5°C accuracy keeps temperature within the level you set. (3) Children lock to prevent misoperation by children (4) Data memory when power is off. (5) Holiday mode make you enjoy more comfortable temperature in holiday (6) External sensor optional, electric heating thermostat The temperature of external sensor can be checked

Technical Parameters

Working voltage: AC90~240V, 50/60HZ  load current: 3A (water heating), 16A (electric heating)  Temperature control accuracy: ±0.5°C  Unilateral return difference:0.5°C(default 1°C ) Set temperature range: 1-70°C(default 5 - 35°C ) Temperature limit range: 5-99 ° C  self-consumption power: <0.3W  Temperature sensor: NTC(10k)1% Running program: Set per 1 week as a cycle Output: Switch relay Installation: Wall mounted or on battery seat Size(mm)：86*86*27

Package include: 1* Thermostat 2* Mounting screws 1* 3.0m external sensor(Not suitable thermostat：Water heating & Bolier linkage )

1* User guide for thermostat
