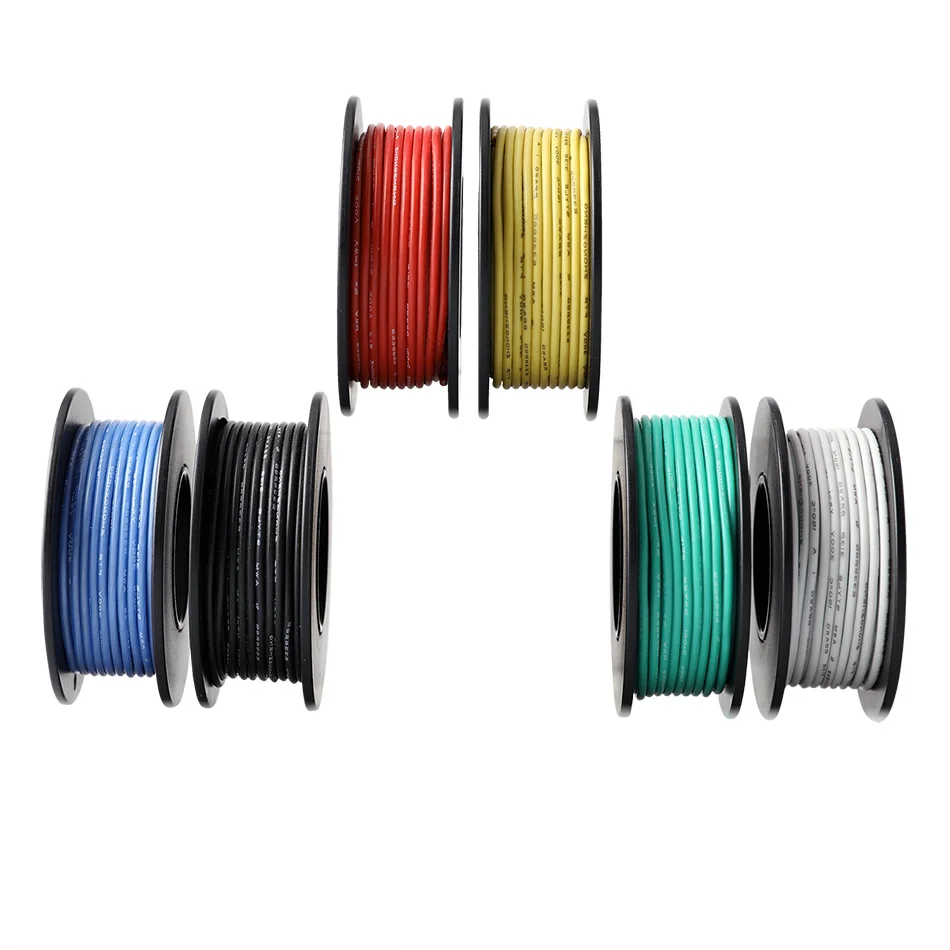

26/24/22/18 AWG Flexible Silicone Stranded Wire Cable wire 6 color Mix box package Electrical Wire Copper Line .

Wires & Cables>>>Lights & Lighting

Certification UL

Origin CN(Origin)

Insulation Material Rubber

is_customized Yes

Conductor Material Copper

Model Number UL3132-18/22/24/26 AWG

Conductor Type Stranded

Application Electronic Wire

Type Insulated

Type Stranded Wire

Rated voltage 300V

Rated temperature -60℃ to 150℃

Conductor material Tinned copper

Conductor specification 30/0.18TS 22/0.14TS 14/0.14TS 7/0.15TS

Insulator Soft Rubber

Recommended current Below 7.63A

Maximum Conductor Resistance 23 ohm/km. (at 20 degree)

Color Black, Red, White, Green, White, Yellow

Specification

24 AWG 60M

18 AWG 30M

26 AWG 90M

22 AWG 60M

Basic Information:

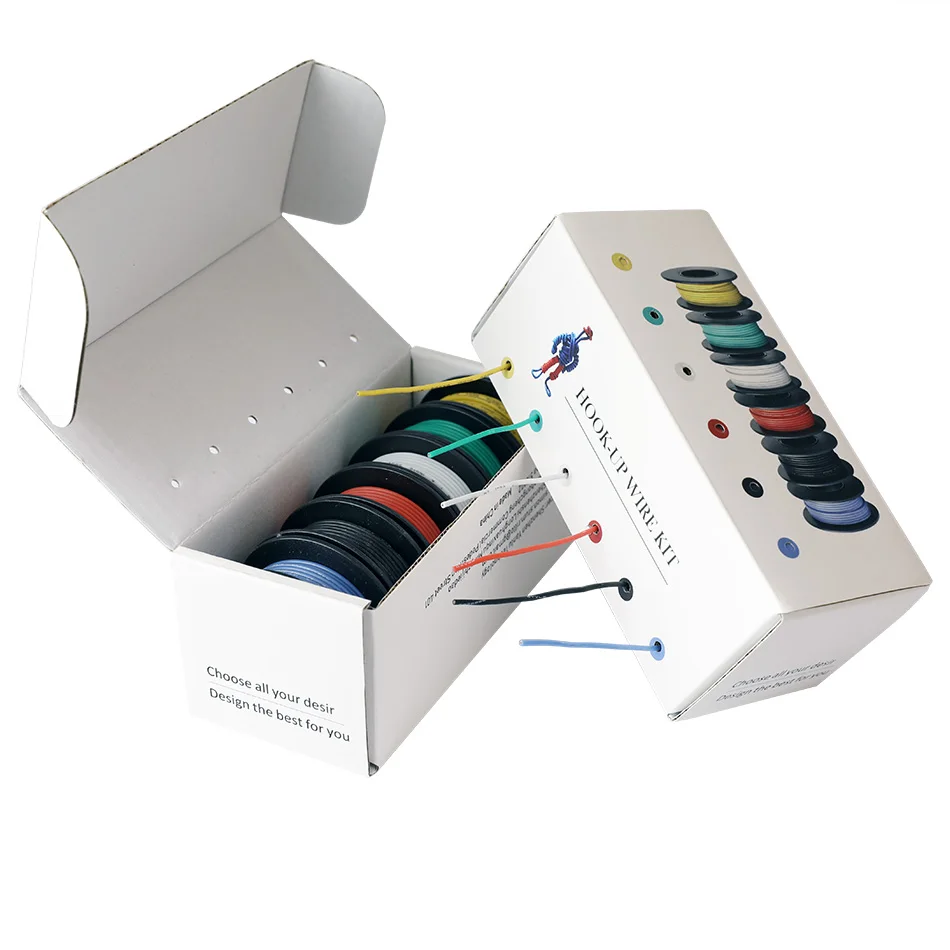

Model: UL3132-18/22/24/26 AWGType: Stranded WireInsulator Material: Soft RubberConductor Material: Tinned CopperConductor Specification:18AWG 30/0.18TS (include 30 copper wires with a diameter of 0.18mm)22AWG 22/0.14TS (include 22 copper wires with a diameter of 0.14mm)24AWG 14/0.14TS (include 14 copper wires with a diameter of 0.14mm)26AWG 7/0.15TS (include 7 copper wires with a diameter of 0.15mm)Maximum Conductor Resistance: 23 ohm/km. (at 20 degree)Rated Temperature: -60 to 150 CelsiusRated Voltage: 300VColors: Black, White, Red, Green, Blue, YellowApplication: Internal wiring in electric & electric equipment, toys, lighting fixtures, DIYCertification: UL (E355578), RoHS, TS/16949Include:18AWG: 5m each Roll , 6 Roll/box22AWG: 10m each Roll , 6 Roll/box24AWG: 10m each Roll , 6 Roll/box26AWG: 15m each Roll , 6 Roll/boxPacking: 6 Rolls/box

Conductor:

Stranded Hook up Wire. Include 30 copper wires with a diameter of 0.18mm, it is very soft and easy to wrap and weld. The copper wire is made of 99.99999% pure copper. The surface is tinned to increase the strength of the copper wire and avoid oxidation and corrosion of the copper wire. Improve the stability of the copper wire. You can look at the cut surface of the wire and you can see the luster of the copper.

Insulation:

The insulation layer is made of anti-freeze fireproof silicone. Can withstand temperatures from minus 60 ° C to 150 ° C (minus 76 degrees Fahrenheit to 302 degrees Fahrenheit), advanced materials, can effectively avoid leakage, low temperature, high temperature, high pressure damage to the wire, and more importantly, avoid the resulting danger.The insulating layer has fireproof properties. When it encounters high temperature, it will not burn, and the surface rubber will slowly turn into white ash, but it is not flammable.

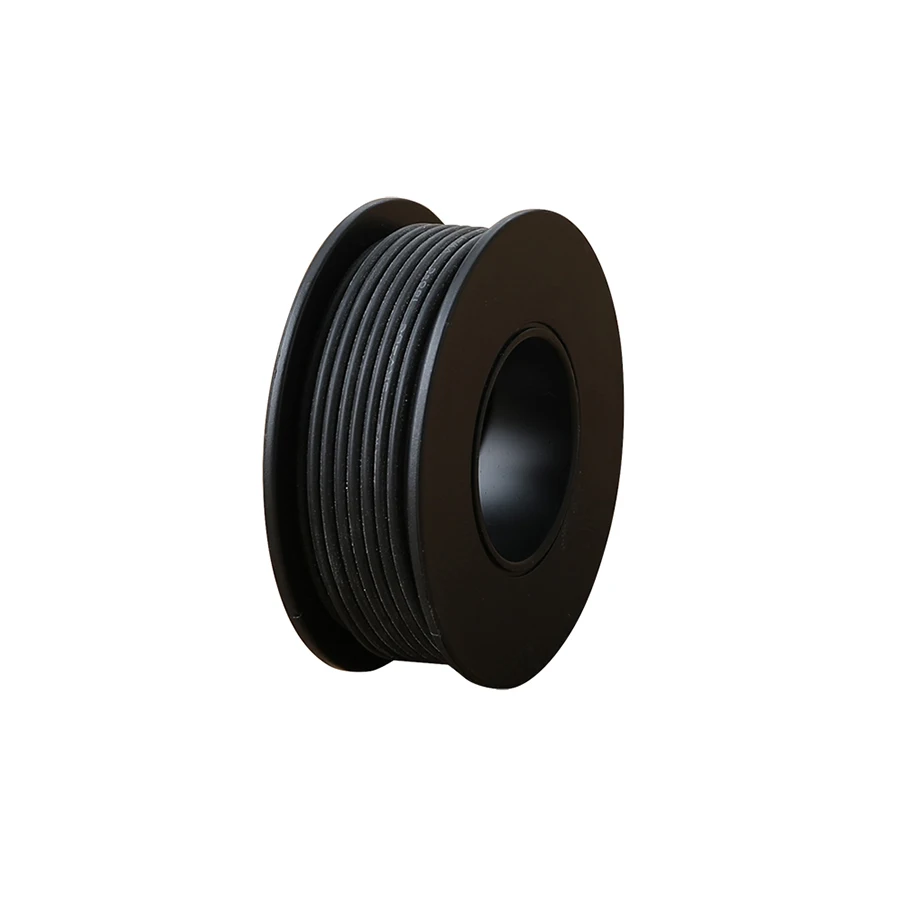

Roll:

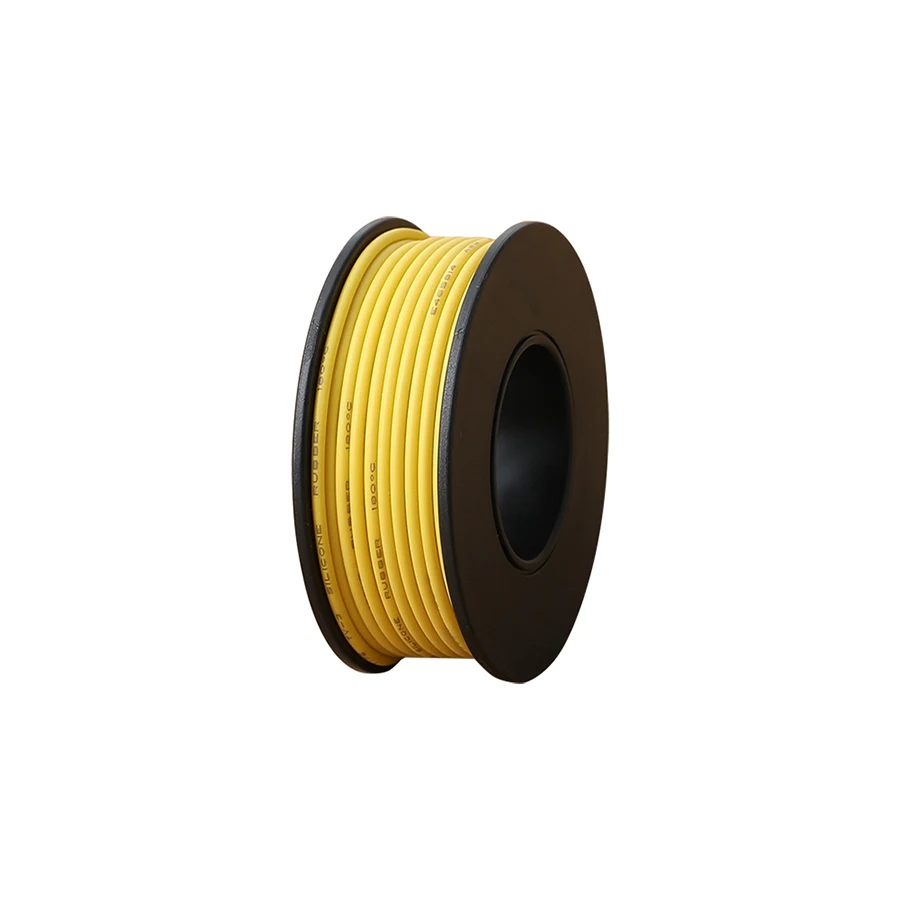

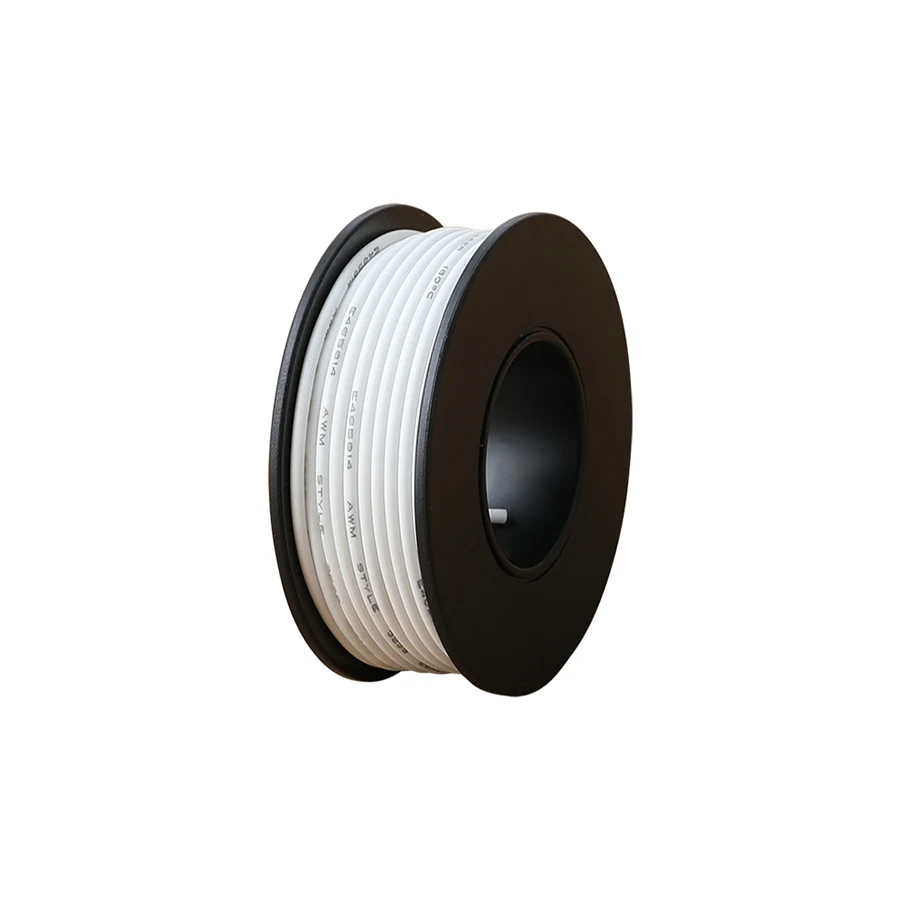

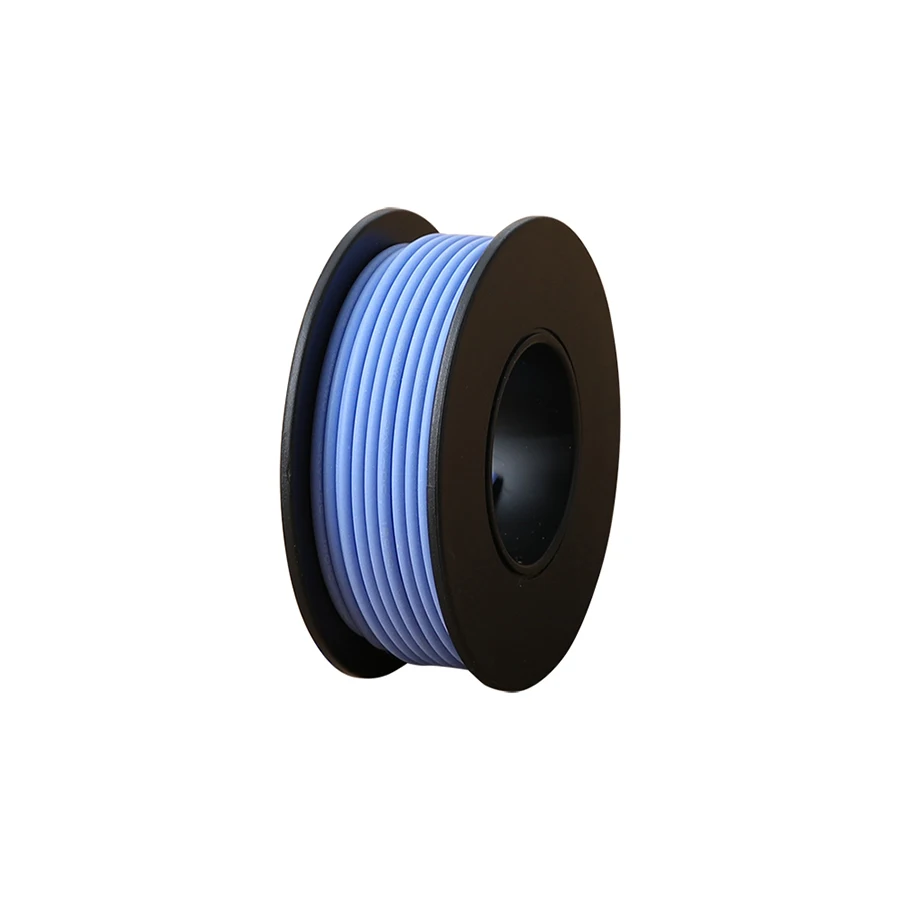

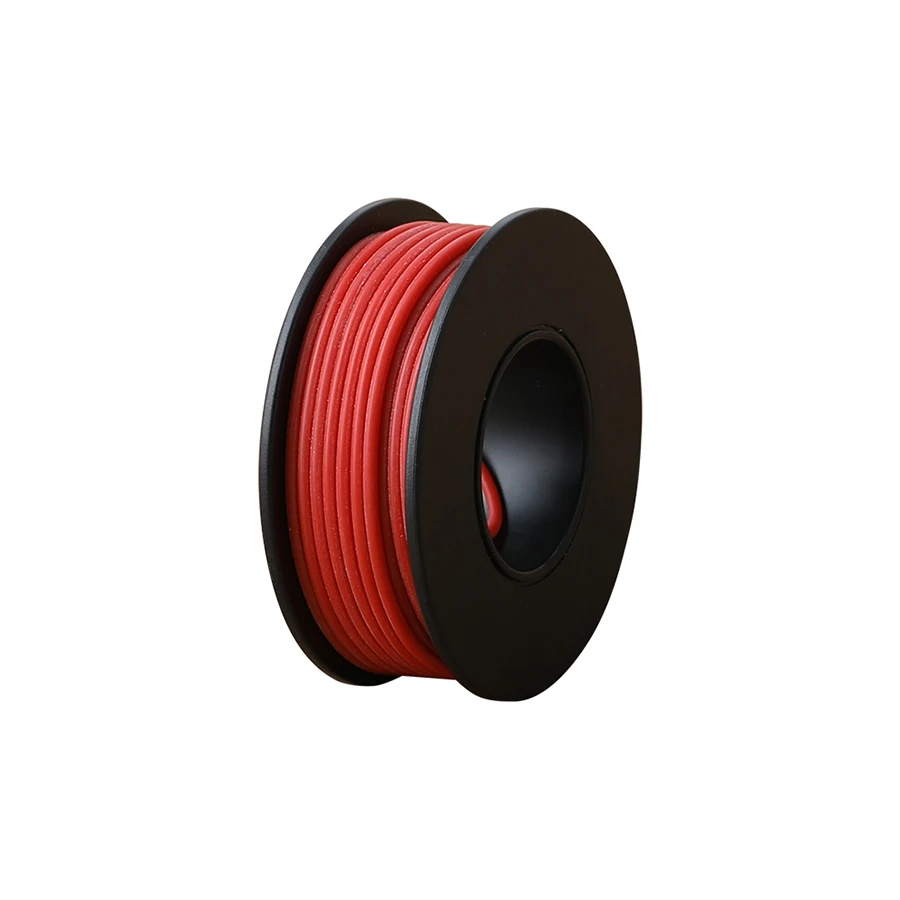

The plastic shaft is wound for easy use.

FAQ

1. ASK：What's mean UL?

ANSWER: UL indicates that the electrical wire meets the safety testing requirements of Underwriter Laboratories Inc.

2. ASK：What is the difference between different electronic wires?

ANSWER: The same series, such as UL3132-22AWG and UL3132-24AWG, have the same rated voltage and operating temperature, but due to different conductor specifications, the current can be different.Different series, such as UL3132-22AWG and UL3239-22AWG, have different rated voltages and operating temperatures. Although, in most cases, the two types of wires can be used in common, sometimes there are cases where they are not universal.

3. ASK：How to know which wire should be choosed?

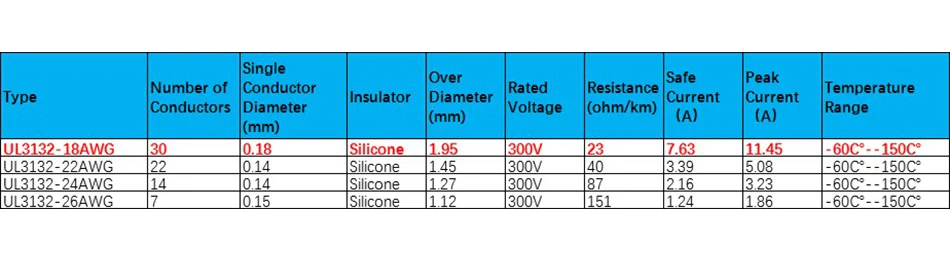

ANSWER: You need to consider these characteristics of the wire: operating temperature, rated voltage, current that can be withstood, and the softness of the wire. You can make a selection by referring to the wire spec sheet in the description.

4. ASK：What is the use of this wire?

ANSWER: It can be used for the following purposes:Electrical internal wire: such as electric fan, rice cooker, earphone, circuit board, small motor, etc.Lighting wire: such as LED lights, party lights stringToy wire: such as DIY train, remote control aircraftDIY wire: Various homemade circuit products

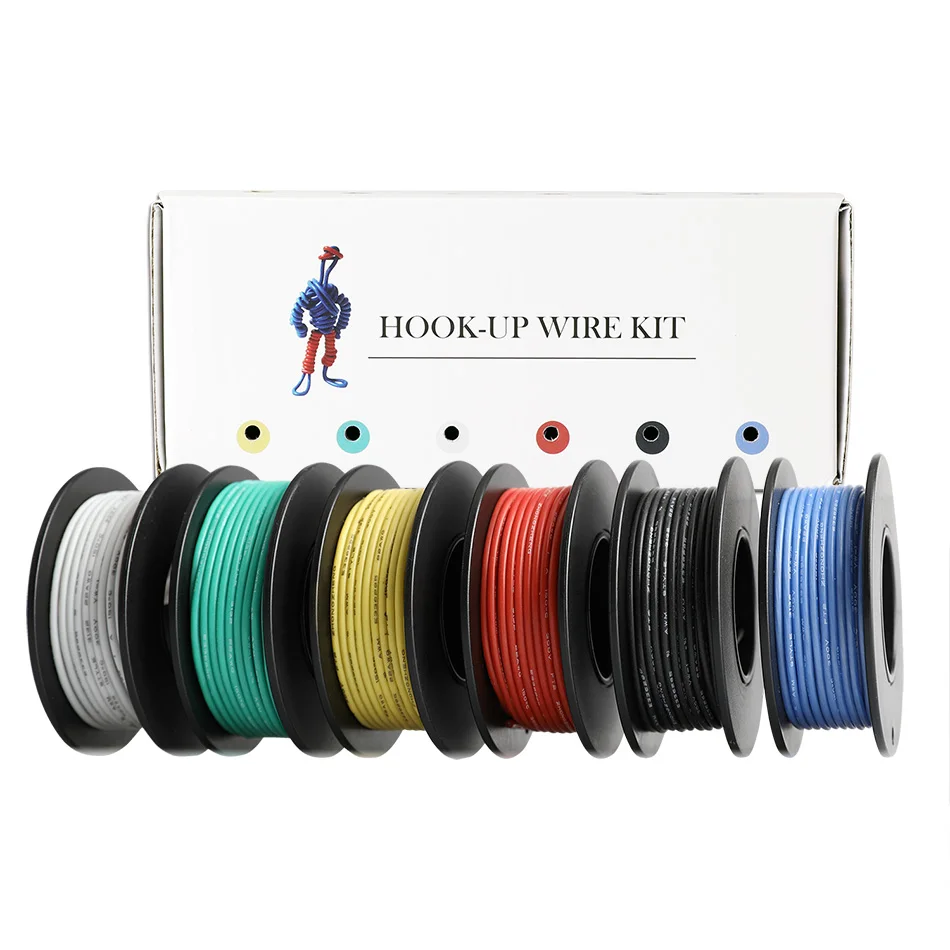

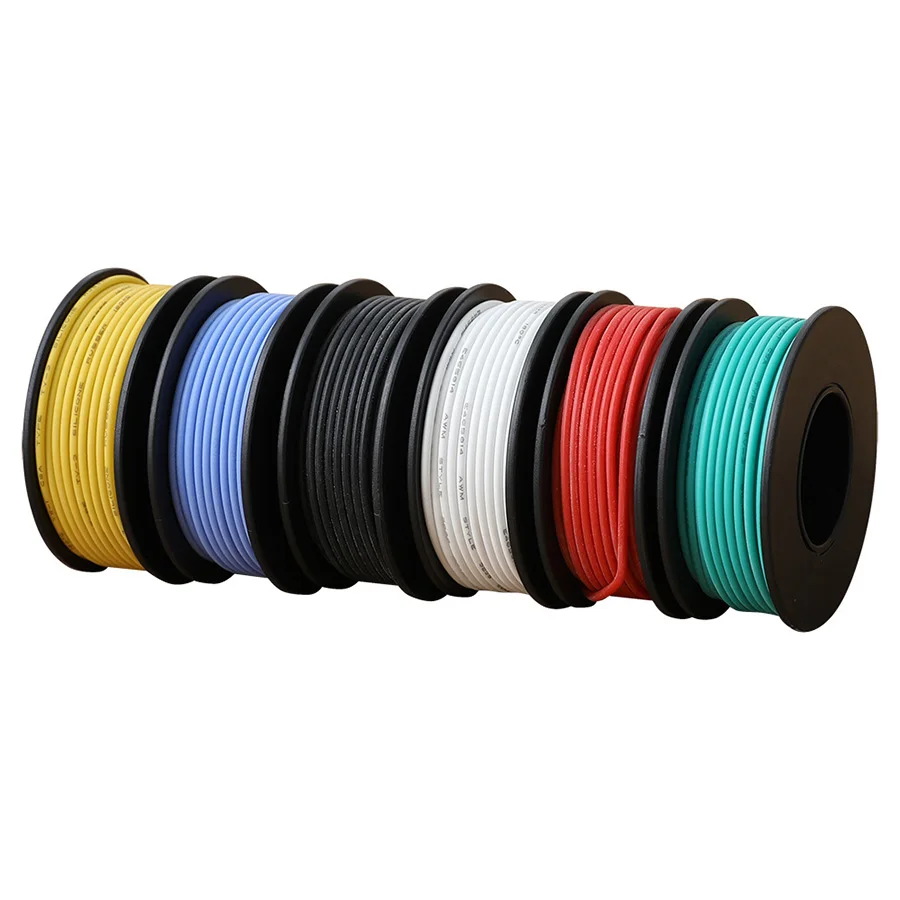

Multiple Colors Available
