YiToo Complete Fingerprint Password Access Control Set Attendance Check Electronic Smart Door Lock Power Supply Biometric Lock

Electric Lock>>>Security & Protection

Brand Name YiToo

Origin CN(Origin)

Smart home platform Other

Certification CE

Material aluminium alloy

Model Number F30 Kits

Operating Frequency: 125KHz

Remote Control Function: Yes

Unlock Mode Fingerprint, Password, RFID Card

Fingerprint Capacity 1000 pieces

Working Voltage DC 12V

Dimension: 138X67X37mm( L/W/H )

Security Mode Fail Safe

Communication U-Disk (not include in package)

lock1 180KG Magnetic Door Lock

lock2 NC Electric lock

Lock4 NO Electric Lock

lock5 Fingerprint Lock

Color

Mortise Lock Size

Other

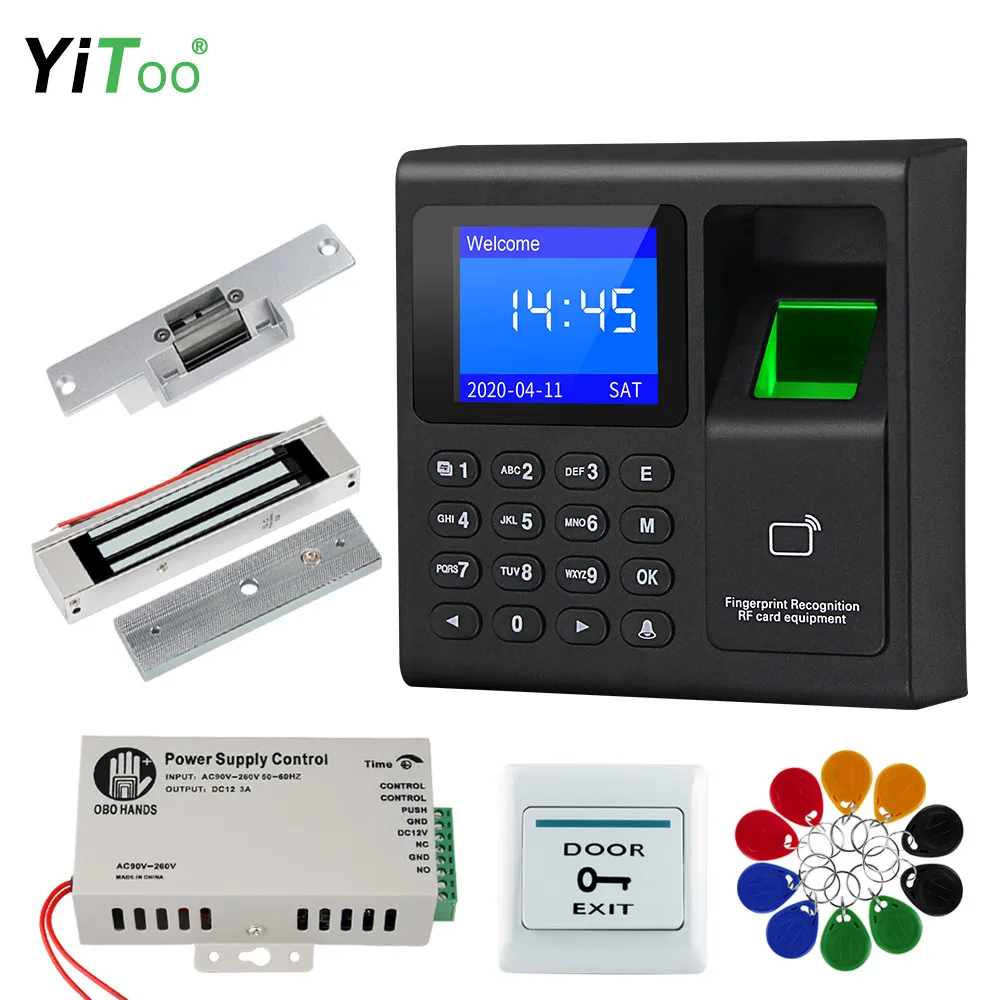

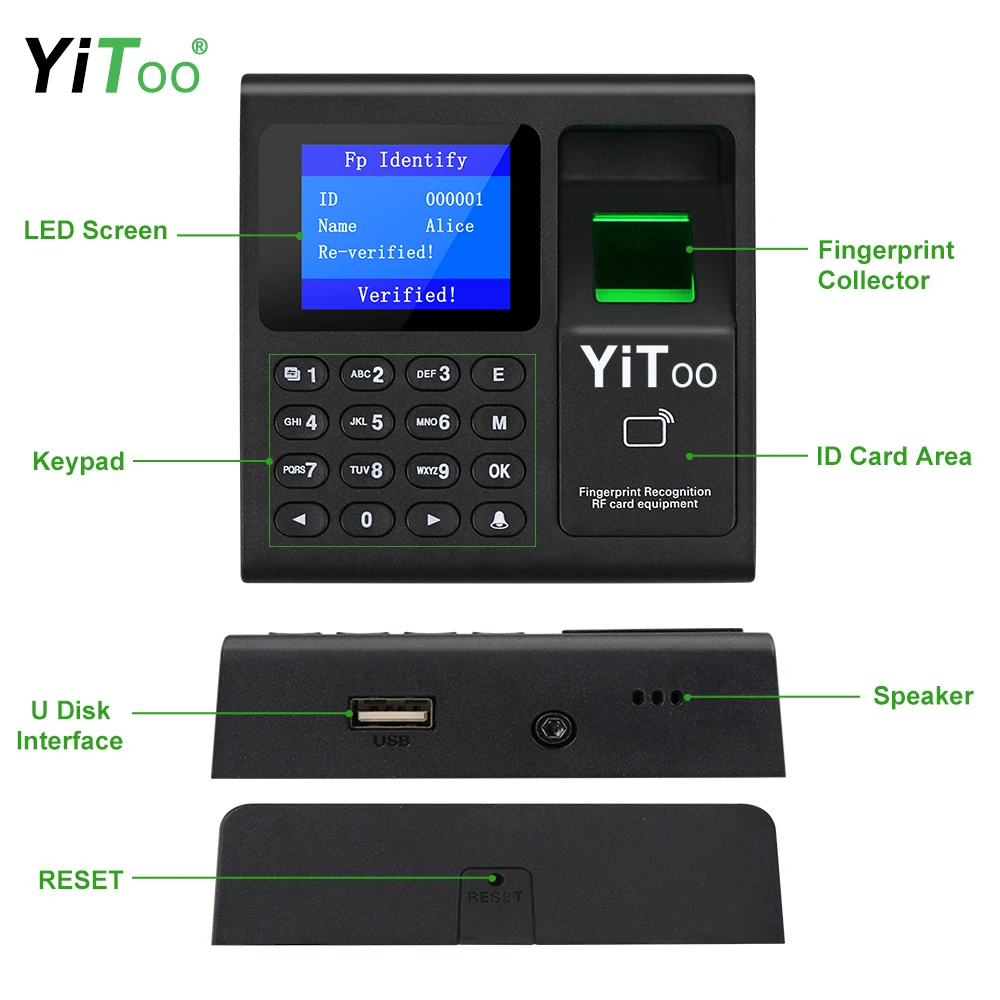

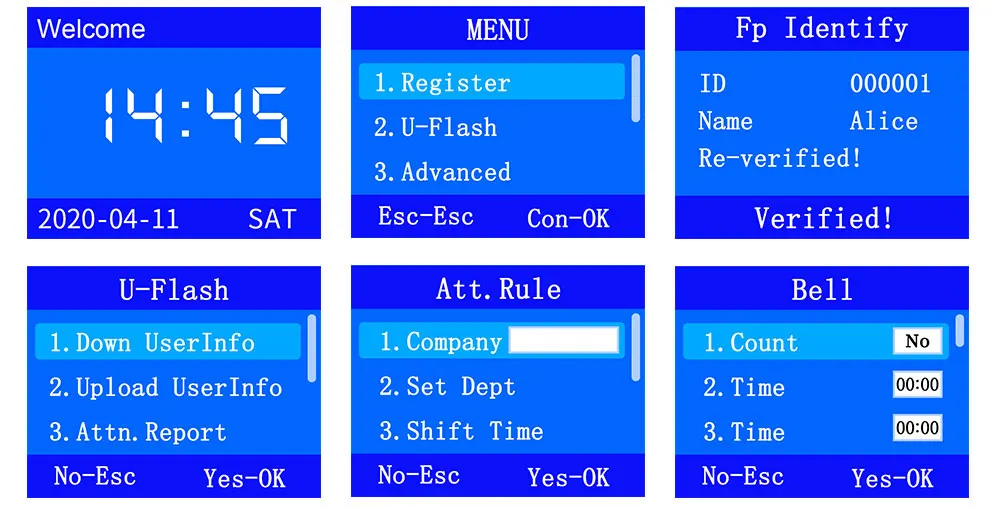

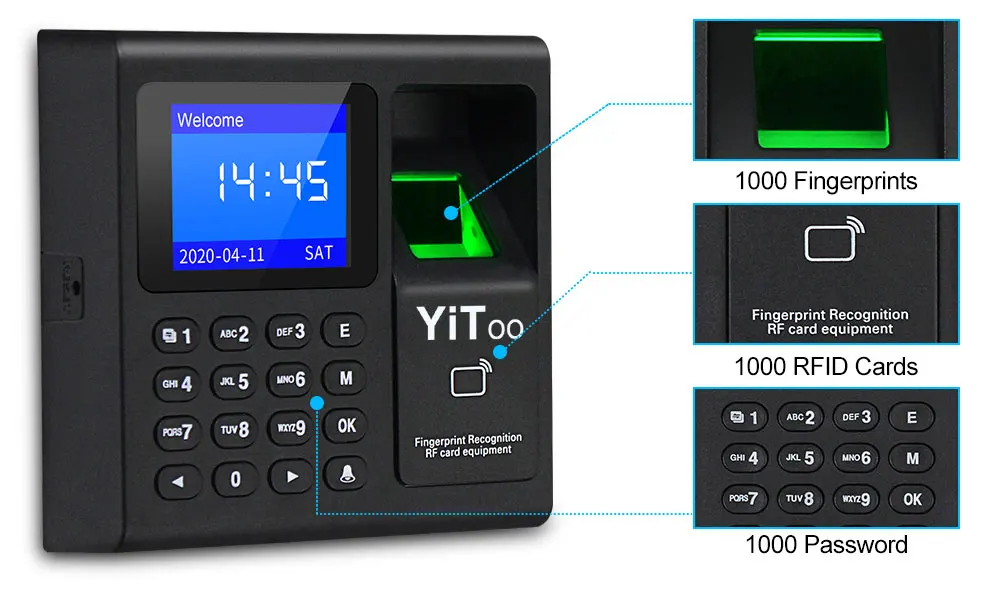

A complete set of entrance guard system for wooden doors, iron doors and glass doors,which you can choose according to the type of your door. If you don't know how to choose,please contact us after taking a photo of the door, thank you.Product DescriptionAccess Controller:1.8 inch HD LCD Screen DisplayEasy to program with the display. Time and date show on display when standby

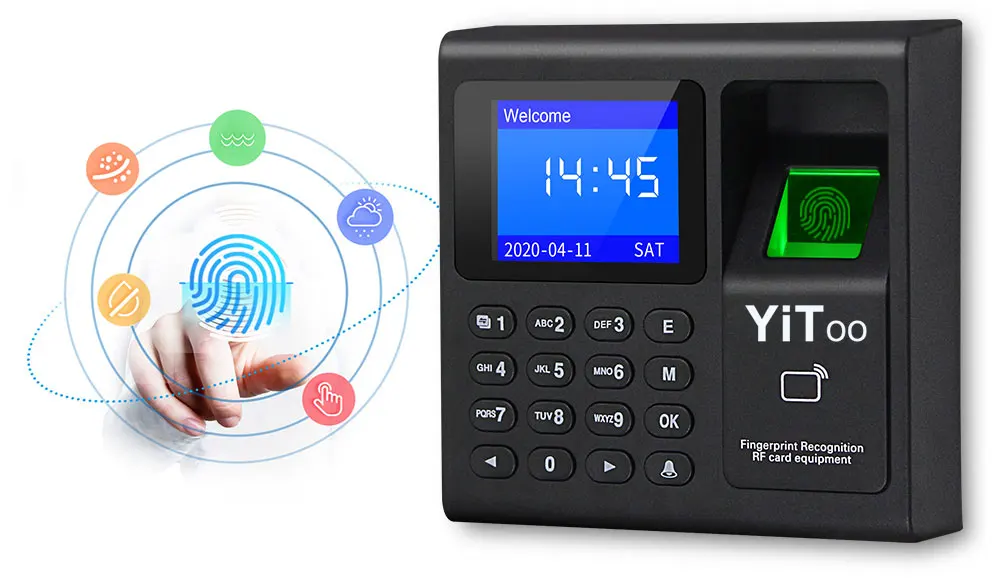

360-degree comprehensive fingerprint recognition, fast Identify Speed

For  different angles of fingerprints, it can be quickly and accurately identified, and fast check-in attendanceThere  Attendance Clock Machine can be controlled in 3 waysFingerprint/RFID card/Password

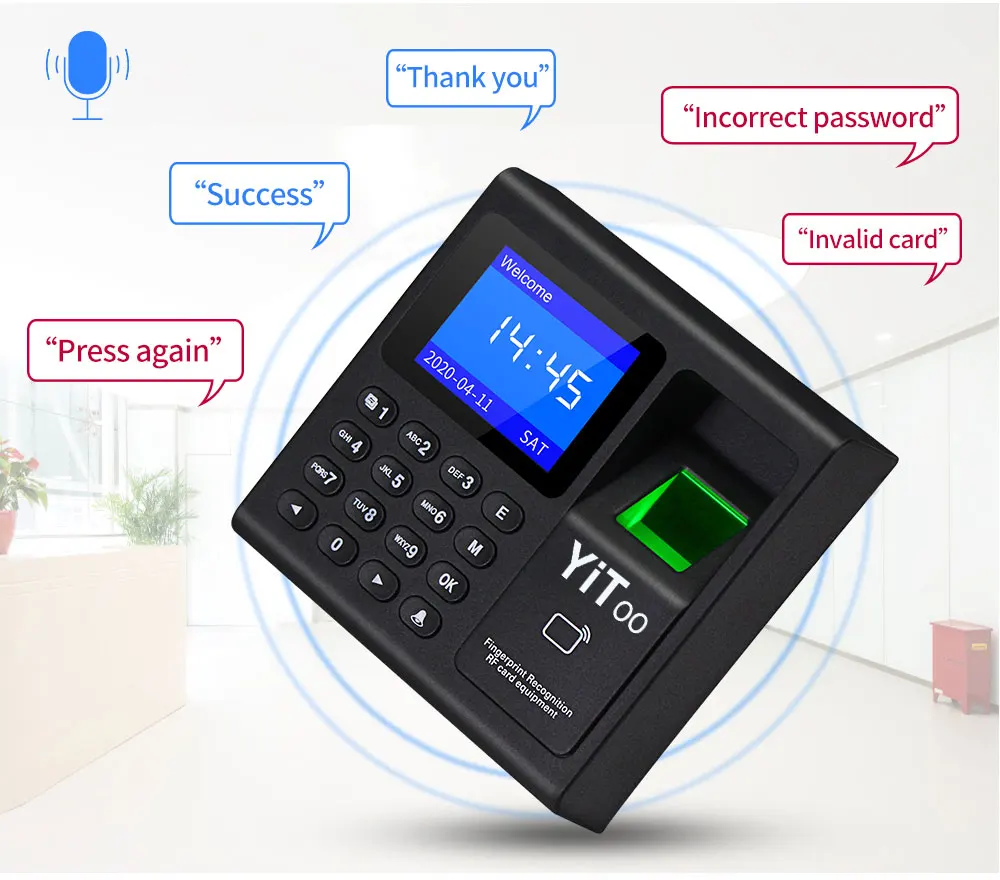

Live Voice Prompt

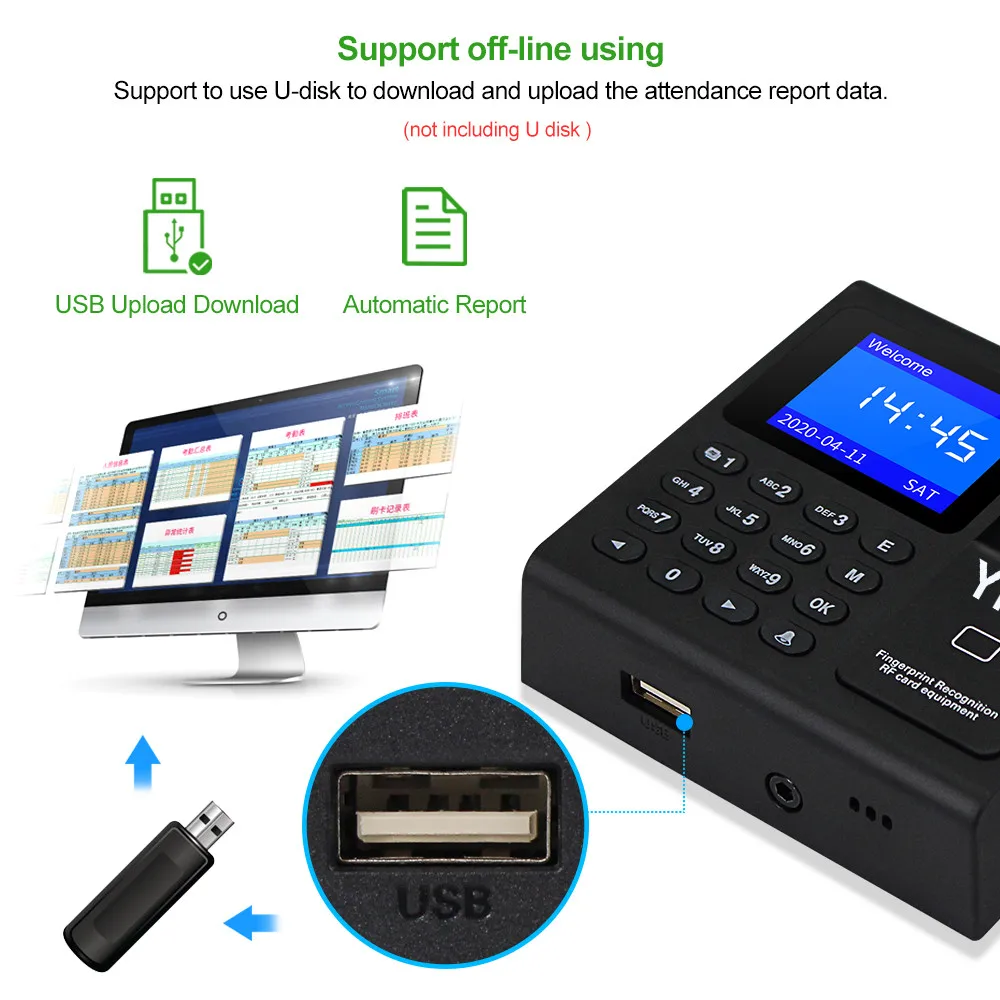

Support Offline Use

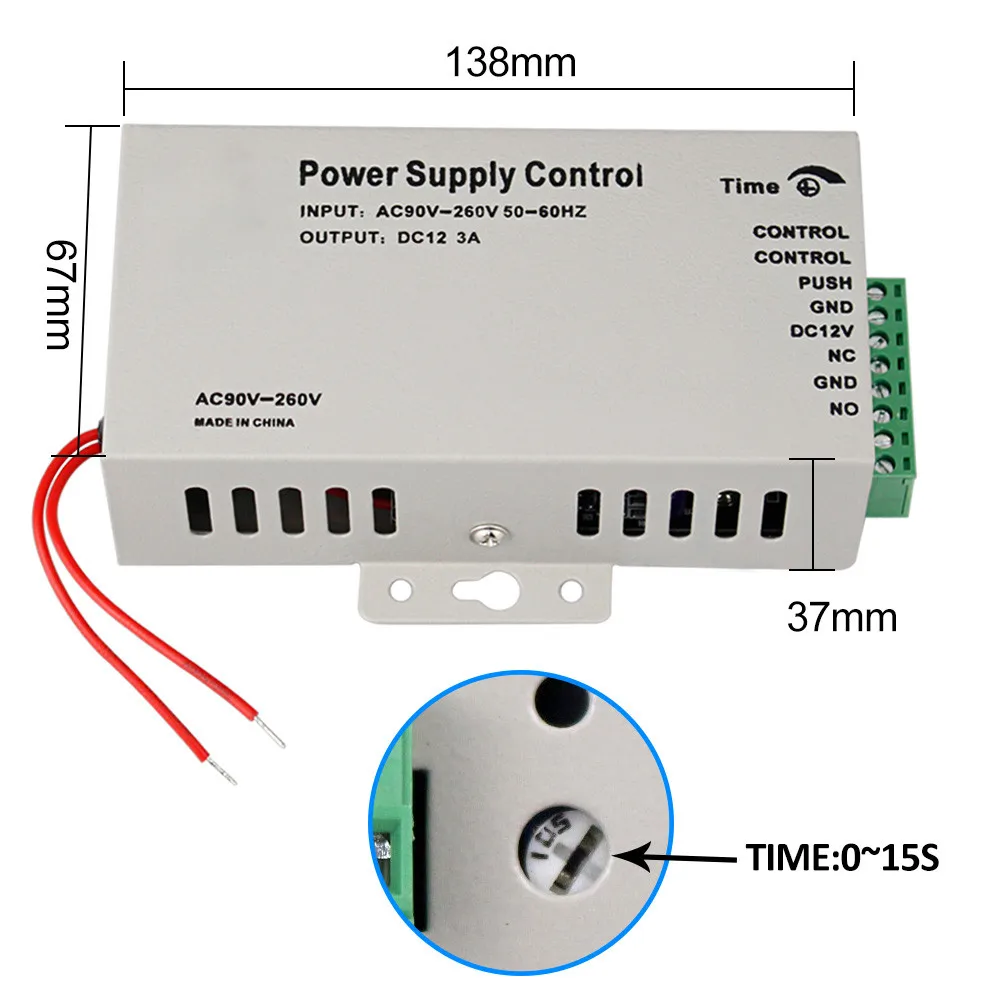

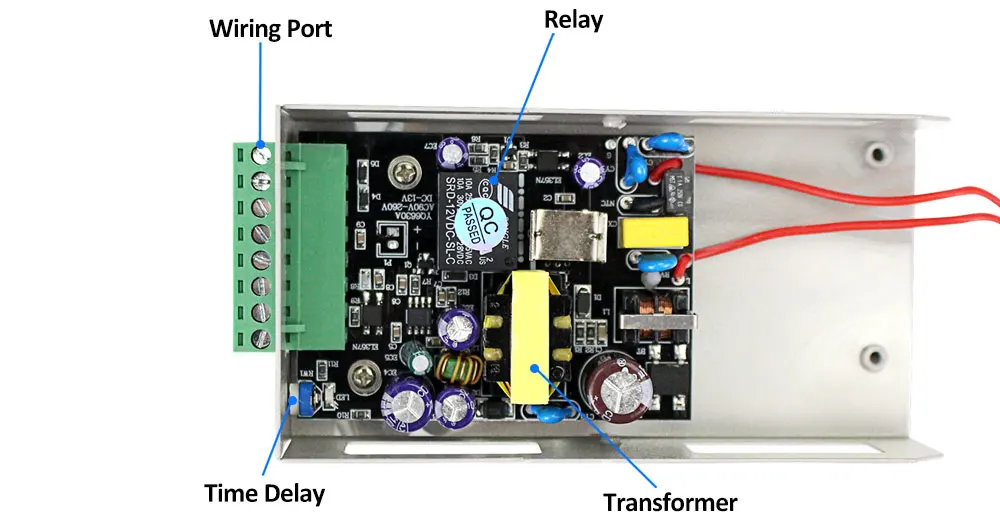

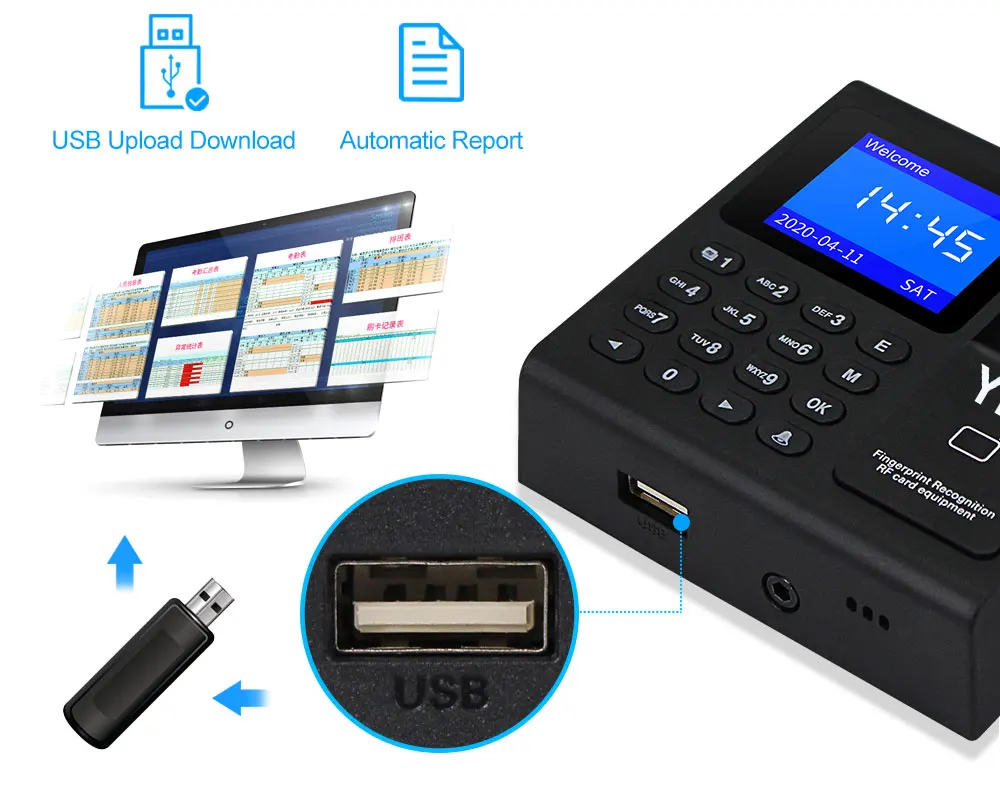

This device support to check in to attendance without networking. Doesn't need to be wired and connect to the network. Support to use U-disk to download and upload the attendance report data.(not included U disk )Power Supply:

1.AC input: Standard AC100V-240V 50-60HZ

2.DC output: Stabilivolt DC12V/ 3 A

3.Package Dimensions: 117 x 68 x 32mm

4.Remote control function: Yes

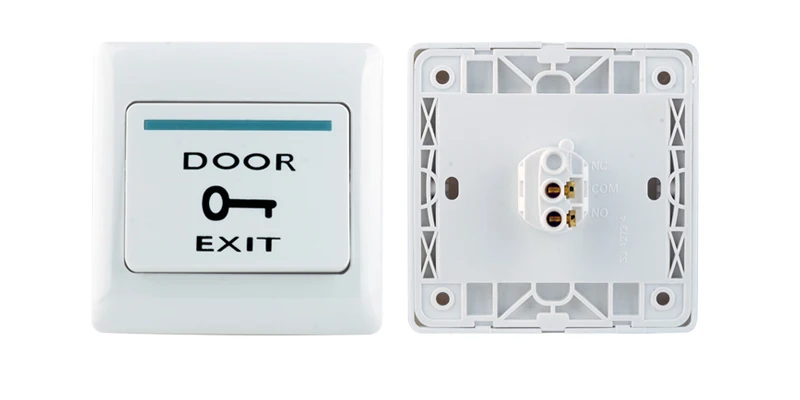

5.Dimension: 138X67X37mm( L/W/H )Door Exit Button:Material:Hard PlasticMaximum Power Rating:36V DC 3A—5A outputSupport both NC Mode (Fail Safe Mode) &NO Mode (Fail Secure Mode)Dimension:86X86MM ( L / W )

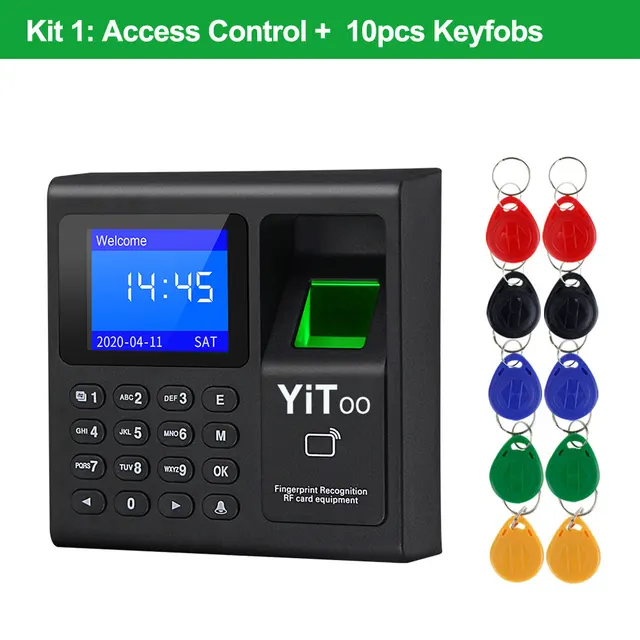

RFID Keyfobs:

125KHz frequency RFID key fob card, waterproofOperating frequency: 125kHzDetection range: 0-10cmEach card pre programmed and has a unique identity number on it.Please Noted: There are 5 color of the RFID keyfobs for optionalNote:(blue, red, yellow, green, black). We will send blue by default.If you need other color, please leave message to us.

Access Control Kit Types

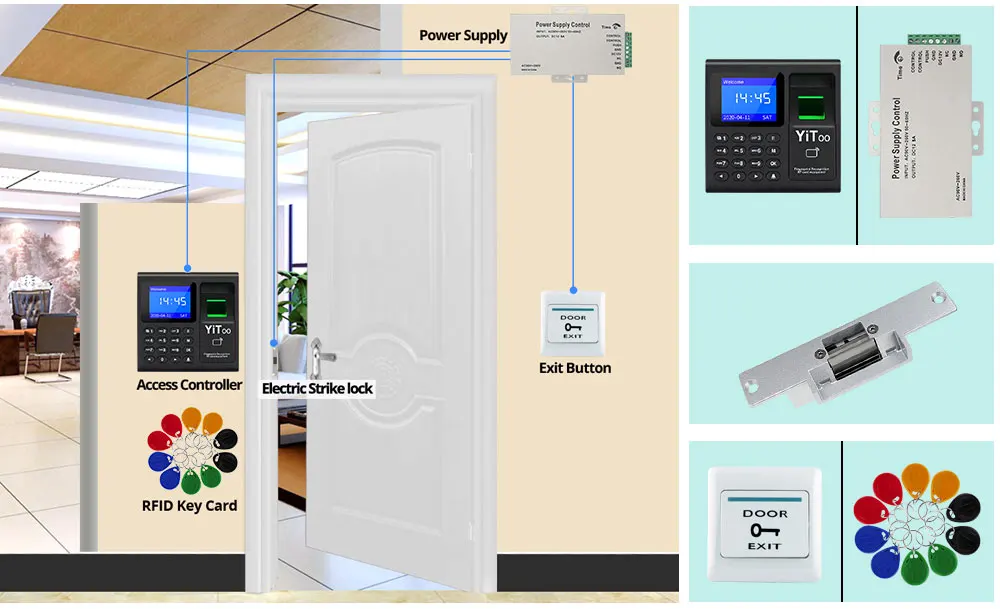

Kit3: Suitable for wooden door, metal door. convenient and beautiful. No need bracket.

Package including: Access Control keypad + Power supply + Electric Strike lock + Exit button + 10pcs KeyfobsNC model (Locked when power on, unlocked when power off), if you want NO type, please leave us a message.

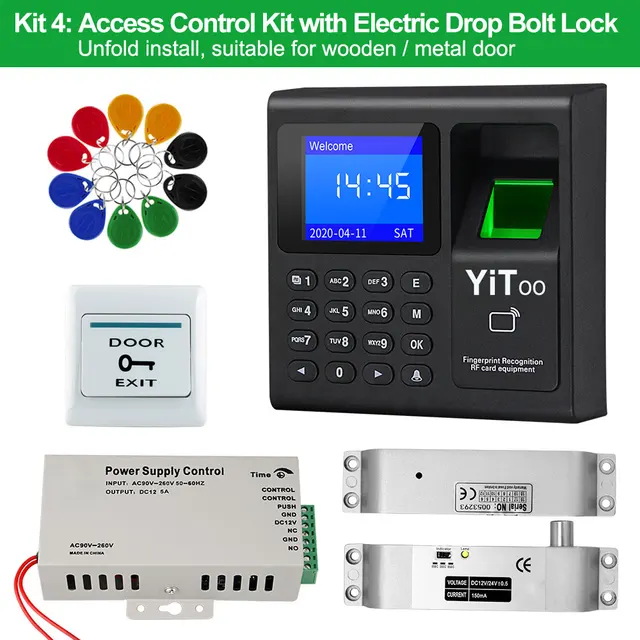

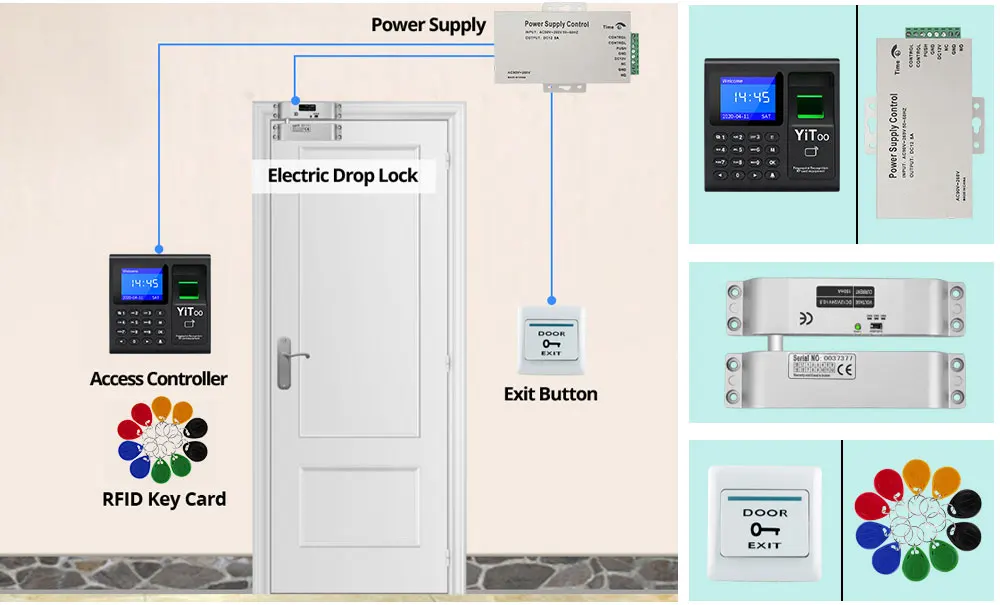

Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.

Package includes: Access control keypad + power supply + Electric  Drop bolt lock + Exit button +10pcs Keyfobs

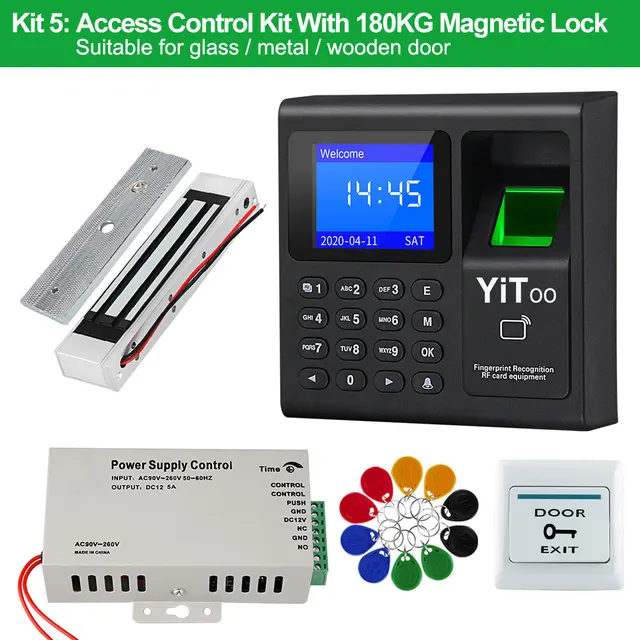

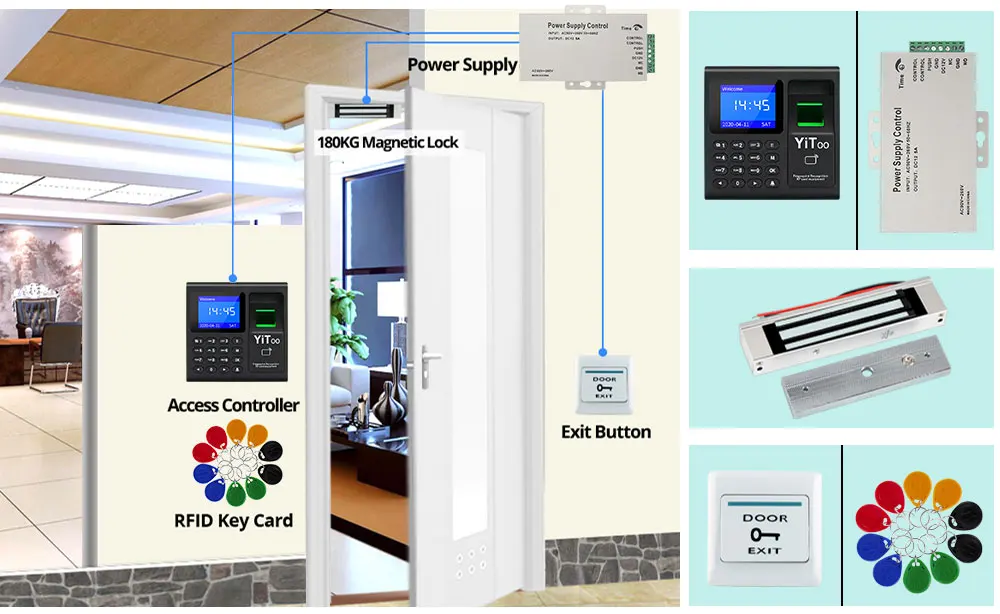

Kit5: Suitable for wooden, metal and glass frame door.no bracket.

Package including: Access control keyboard + power supply +180KG(380lbs) Electric Magnetic Lock + Exit button + 10pcs keyfobs.

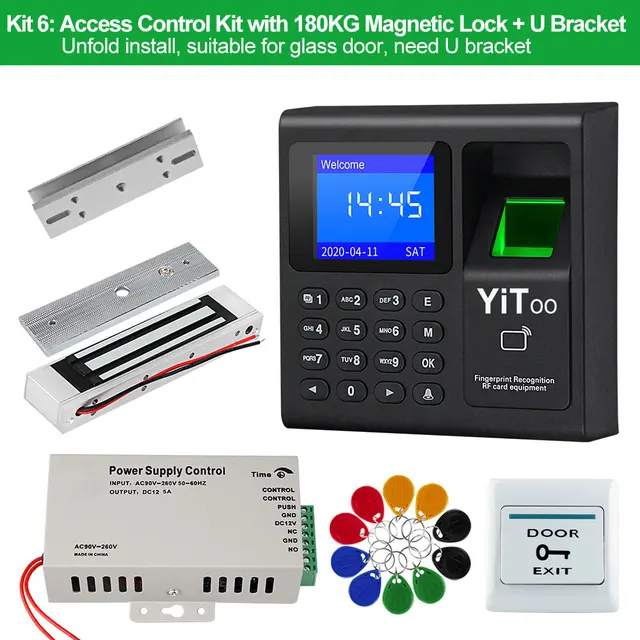

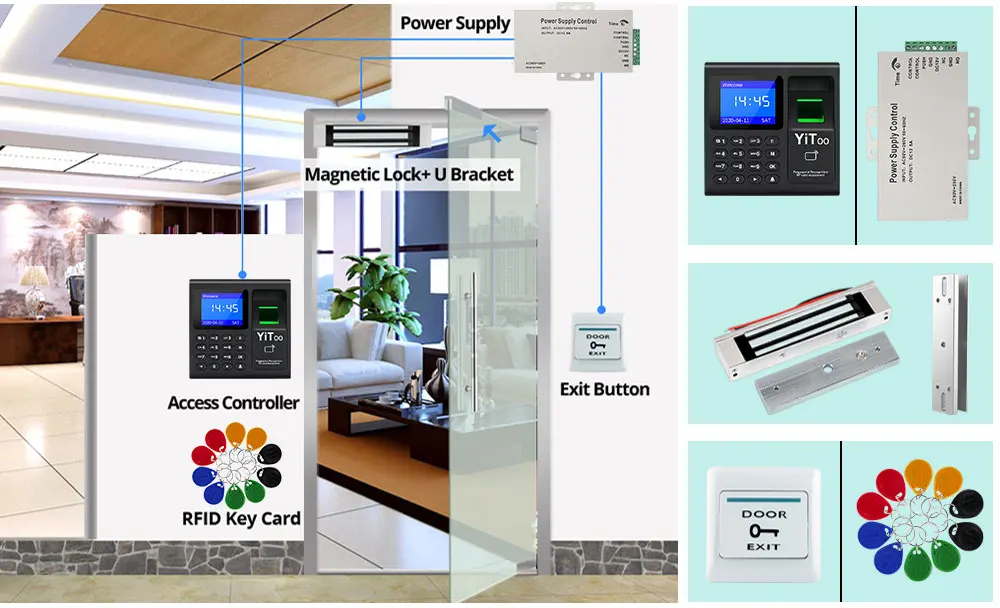

Kit6: Suitable for frameless glass door. Need U bracket.

Package including: Access Control keypad + power supply + 180KG(380lbs)Magnetic lock + U bracket + Exit button + 10pcs  keyfobs

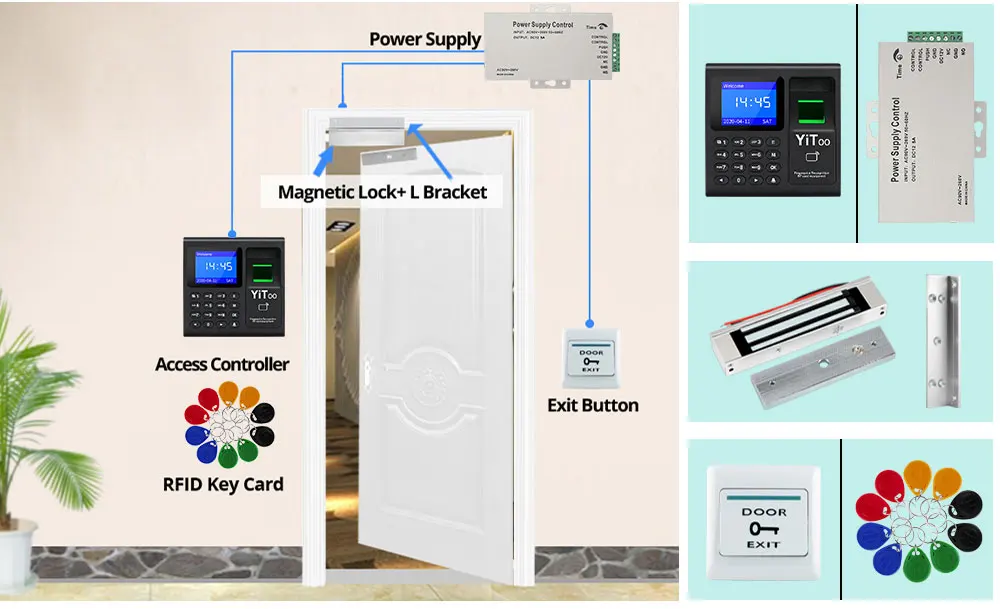

Kit7: Suitable for wooden, metal door. Need L bracket.

Package including: Access control keypad + power supply + 180KG(380lbs)magnetic lock + L bracket + Exit button + 10pcs keyfods.lock at the door from the indoor,if the door is flat or the door to door frame is less than 3cm, you need to add the , you need to add L bracket.

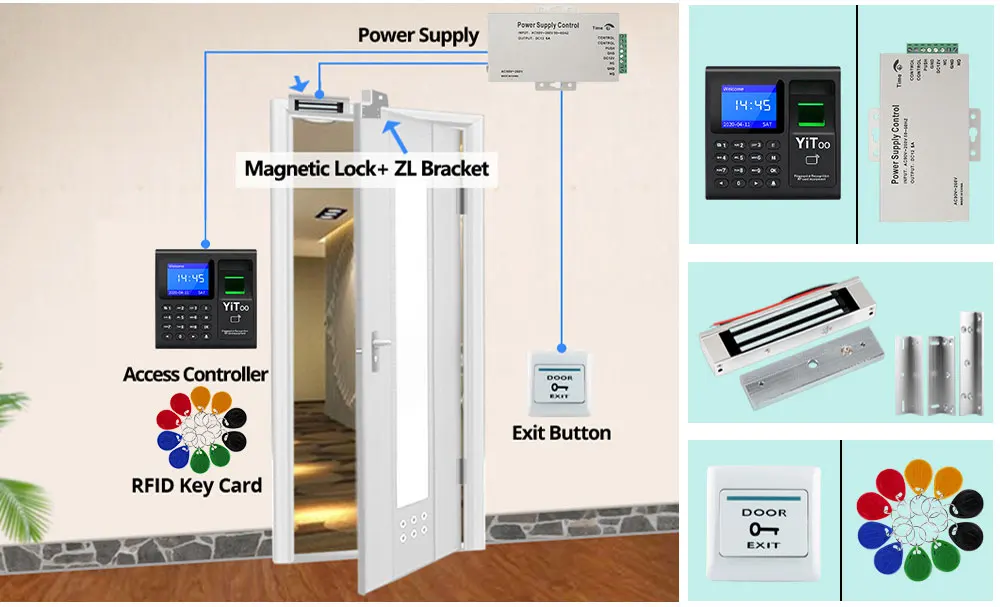

Kit8: Suitable for wooden, metal，glass doors. Need ZL bracket.

Package including: Access Control keypad +Power supply +180KG(380lbs)Magnetic lock + ZL bracket + Exit button + 10pcs keyfobs.If your door is open from indoor, then need to add the ZL bracket.

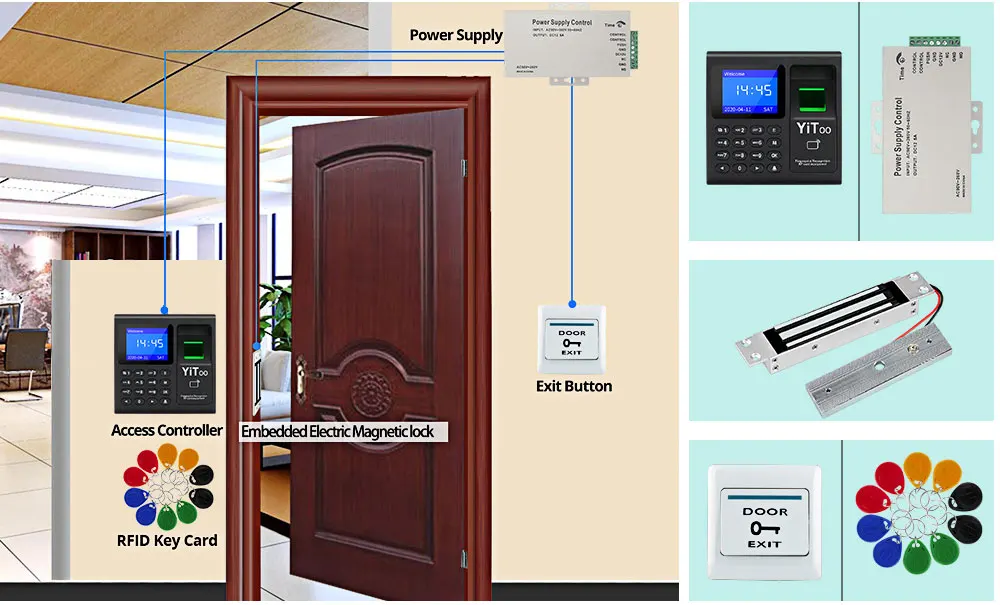

Kit9: Suitable for wooden, metal and glass frame door. No Need bracket.

Package including: Access Control keypad + Power supply + 180KG Embedded Electric Magnetic Lock + Exit button +10pcs keyfobs

Wiring Diagram:
