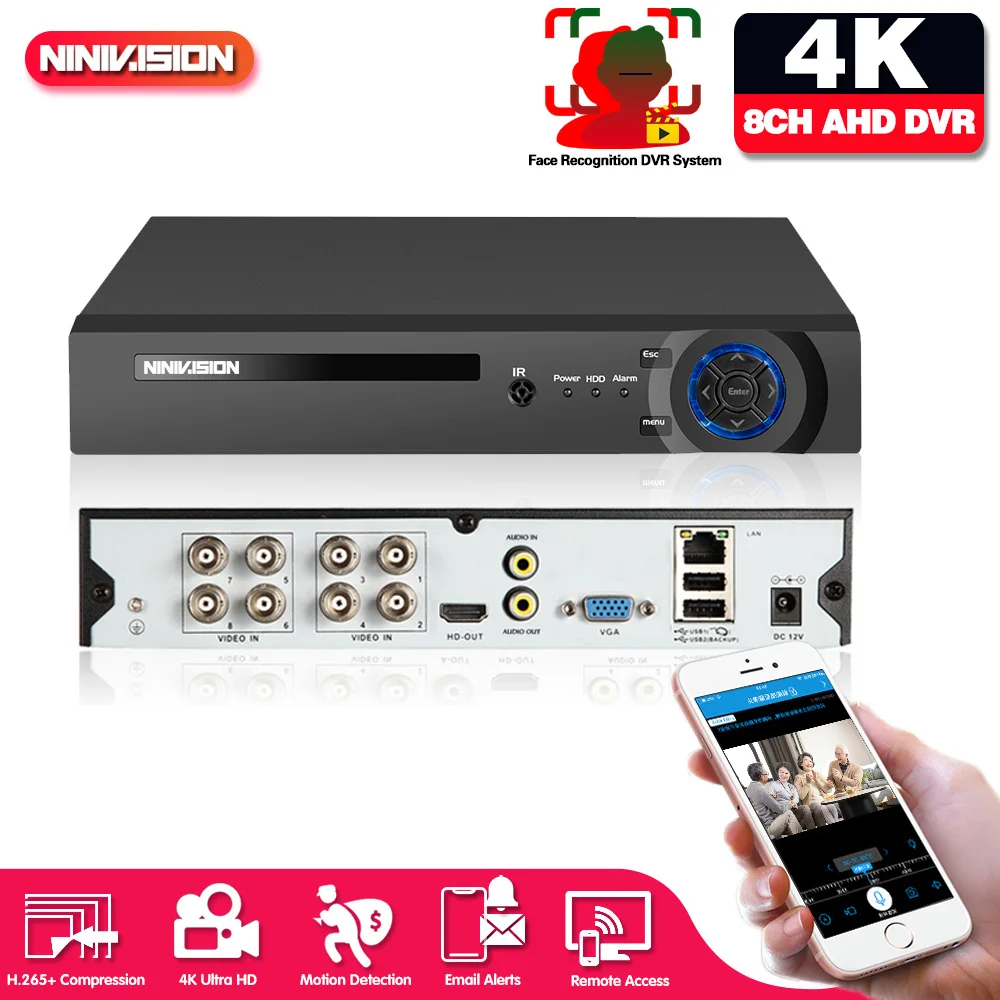

4K DVR 16CH 8CH 4CH CCTV Recorder Support 8MP 5MP AHD TVI CVI IP Camera Face Detection P2P Cloud Video Surveillance DVR Recorder

Surveillance Video Recorder>>>Security & Protection

Brand Name NINIVISION

Certification CE

Origin CN(Origin)

Smart home platform Xmeye

Two-way Audio no

Compression Format H.265

Compression Format H.264

Supported Mobile Systems Windows Mobile

Supported Mobile Systems iPhone OS

Supported Mobile Systems Android

Supported Mobile Systems Symbian

Wireless Security WEP

Audio Compression Format G711A

Hard drive Interface Type SATA

Model Number NI-8CH01VH-805AX

Communication Interface RS485

Alarm Action Email Photo

Video Adjustment Auto White Balance

Audio Input 1 RCA

Supported Operating Systems Microsoft Windows XP

Supported Operating Systems Microsoft Windows Vista

Supported Operating Systems Microsoft Windows 7

Supported Operating Systems Microsoft Windows ME

Supported Operating Systems Mac OS

Video Output 1VGA + 1HDMI-compatible

e-Cloud(P2P) YES

Technology ANALOG

Technology HDCVI

Technology HDTVI

Technology Network

Technology AHD

IP Mode Dynamic IP address

Video Standard NTSC/PAL

Network Protocol TCP/IP

Hard Drive Size 3.5''

Network Interface RJ45 10/100M

Backup Type Hard Drive

Backup Type USB Flash Divers

Audio Output 1CH RCA

DVR Power Supply DC12V

Video Input Interface BNC (1.0 Vp-p, 75Ω)

Video Compression Format H.265

Video Compatibile format H.265/H.264

AHD DVR Resolution 8CH 4K AHD DVR

Power adapter EU / US / UK / AU

AHD+DVR+HVR+NVR 6 in1 Connect AHD/IP/TVI/CVI/analog Camera

AHD DVR Support Language multi-language(English,Russian,Spanish etc...)

Video 8CH input/1CH VGA, 1CH HD output

Audio 1CH audio input,1CH audio output(RCA)

Alarm System Face / Motion Detection+Email Alert

Remote View Android, iPhone, iPad, PC,VMS etc

intelligent recognition Face Detection & Face Record &Face Playback

Hard Drive Port 1*SATA Port (support up to 8TB HDD)

Hard Drive Size 3.5"inch

Application Home,store,shop,office,Supermarket etc

warranty 3 years

country of origin China,shenzhen

Ships From

China

Video Input

8CH

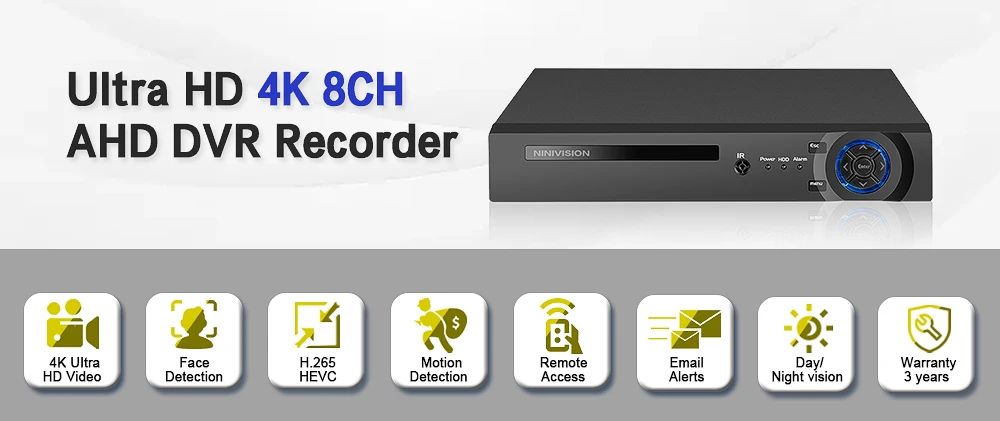

Face Human Detection H.265 WIFI P2P View 8CH AHD 5MP 4K Surveillance DVR NVR 8 channel 8MP up to 16CH 1080P Security CCTV DVR video recorder

Main Features

1.H.265 8CH AHD Digital Video Recorder;2,Ultra HD 4K High Definition Display,Advanced H.265 Video Compression;3.Support Face Detection,Face Record,Face Playback;4.Support CVBS,AHD,TVI,CVI ,XVI,IP ,6 in 1 Hybrid input;5.Support HD&VGA Output,Audio Input&Audio Output;6.Support Ultra HD Day Night Vision;7.Support 3.5"inch Hard Drive,1*SATA Port,Support Max 1*8TB HDD;8.Support Motion Detection, Email Alerts, Video Playback,and Multi-Language;9.Support Android,Iphone,Ipad,PC,CMS,VMS,P2P view;10.Support Plug and Play ,Easy to Setup;11.Remote Access Anywhere,Anytime;

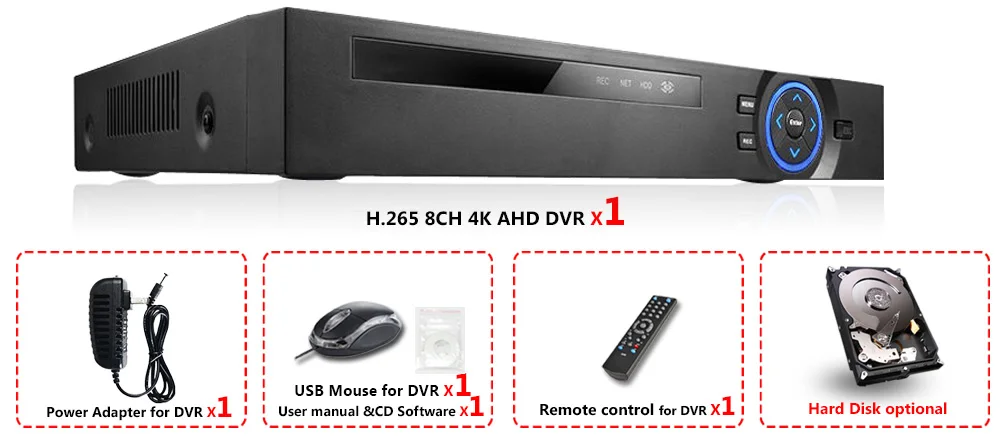

What's in the box?

1 X H.265 8CH 4K AHD DVR Hybrid Digital Video Recorder;1 x Power Supply for DVR;1 X USB Mouse for DVR;1 X Software CD for DVR;1 X Remote Control for DVR;Hard Disk Optional !!!

HD 4K High Definition Display

High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 8.0MP Resolution.The angle will be more larger,and the image will be more clearer.

Face Detection & Face playback

Face Detection and Face playback and Face Record;Quickly capture face images and quickly play back face videos;Face Detection:automatically capture face images;Face Playback:Intelligent Face video playback,saving time,not missing every details.

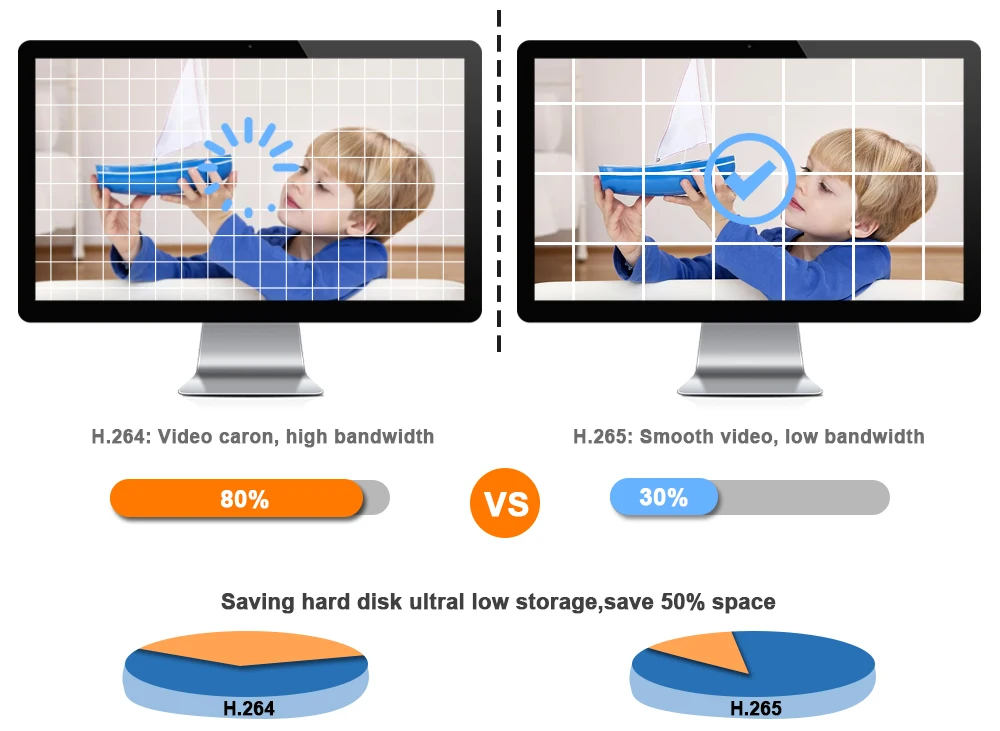

Why chooses H.265?

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

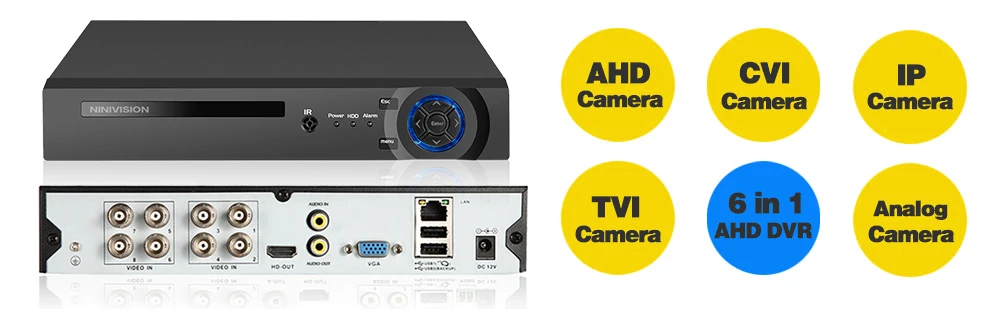

6 in 1 Hybrid AHD DVR

You can freely enjoy Six connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 6 recordering modes.for your option:Analog/ AHD/ Network / TVI / CVI / AHD+Network. You can get HD quality video in each mode.

Motion Detection

This system is designed to send an email alert when any motions are detected and allows you to record only when motion is detected.

Instant Email Alert

Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .

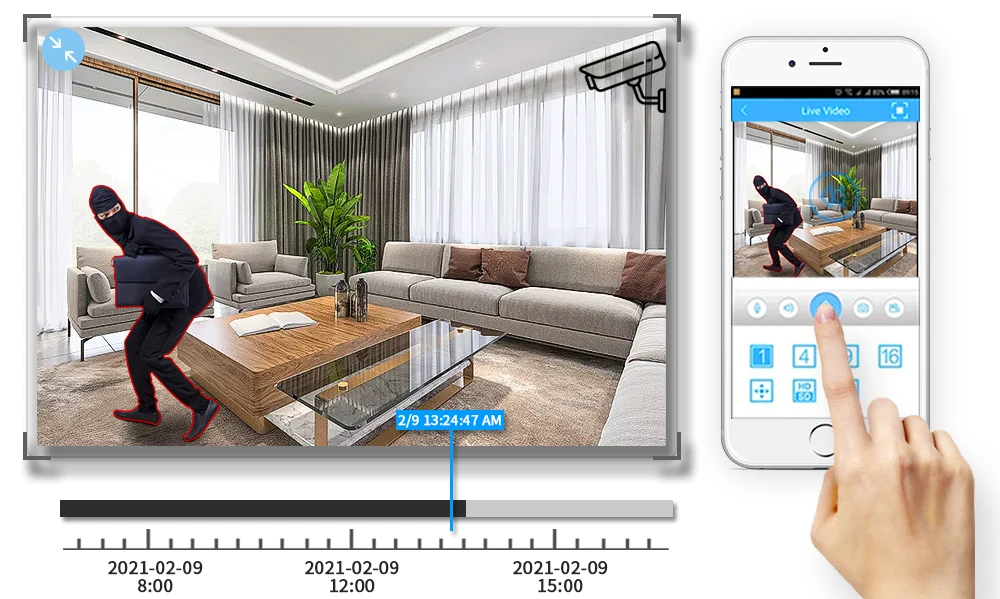

Smart Playback

You can easy find the video footage you'd like to playback,Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.

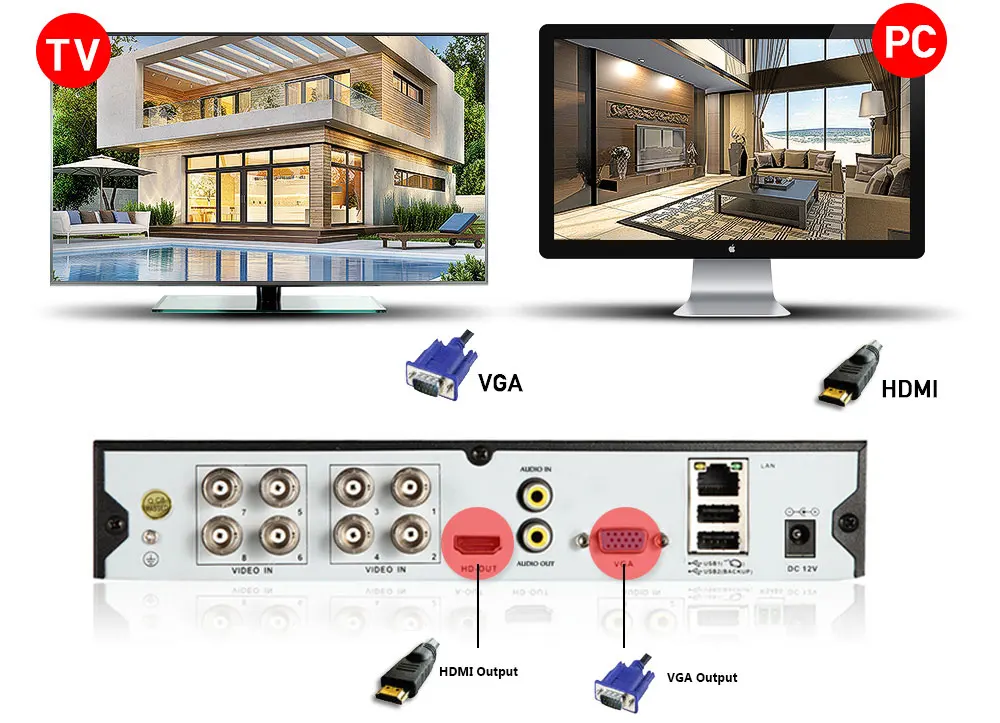

Multiple Viewing Options

View on HD MonitorEasily display video through the HD port of your computer monitor to take full advantage of the security system's clarity. (HD Cable Not Included)View on TV or PC MonitorFor added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.(VGA or BNC to RCA cable is not included.)

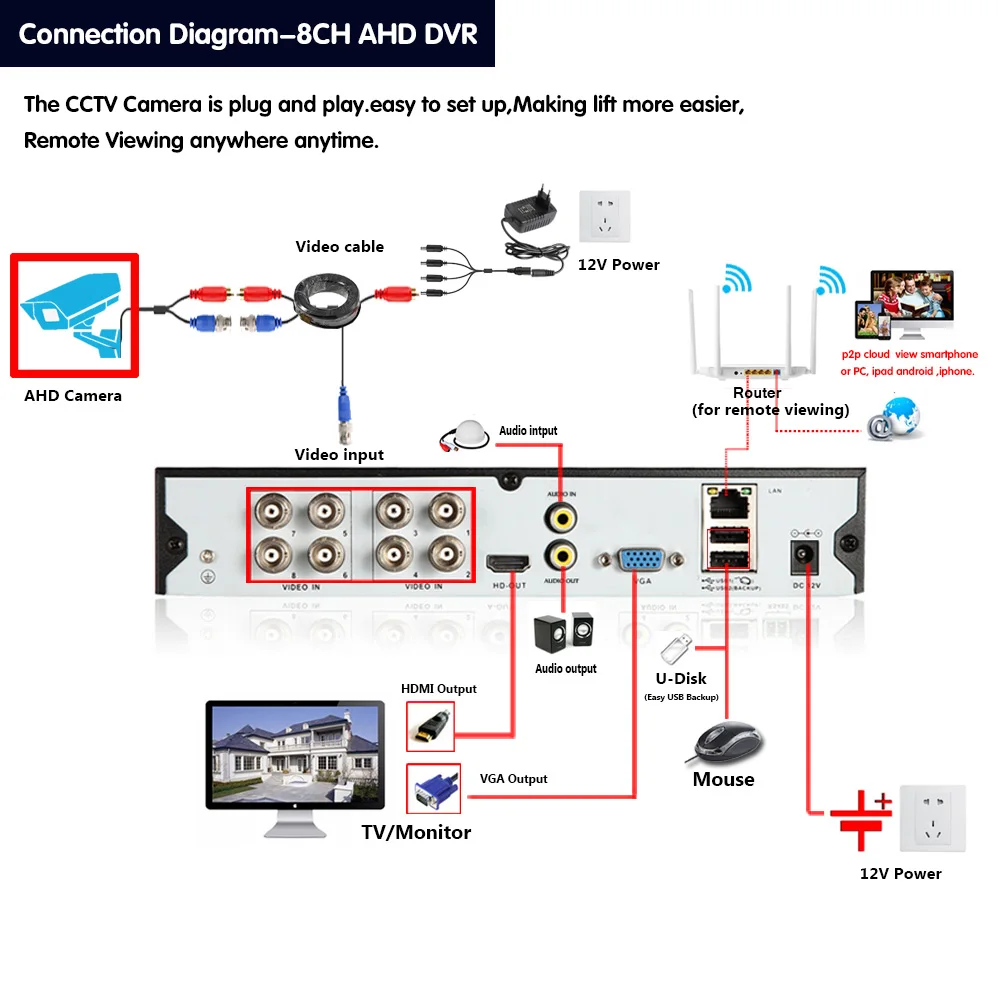

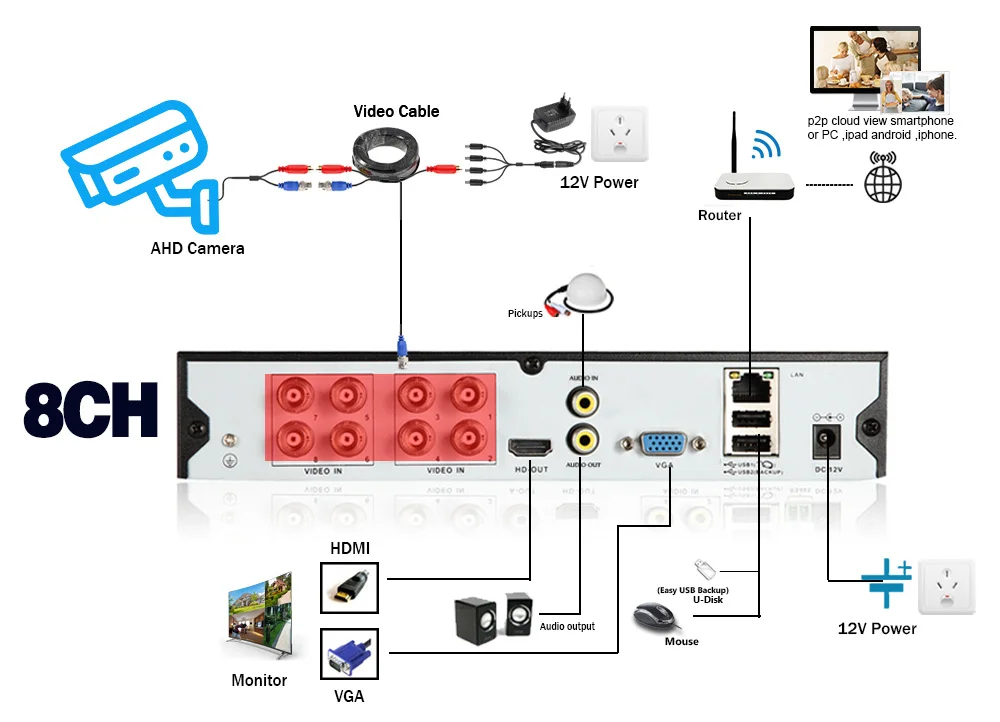

Connection Diagram-Plug and play,Easy to use

The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

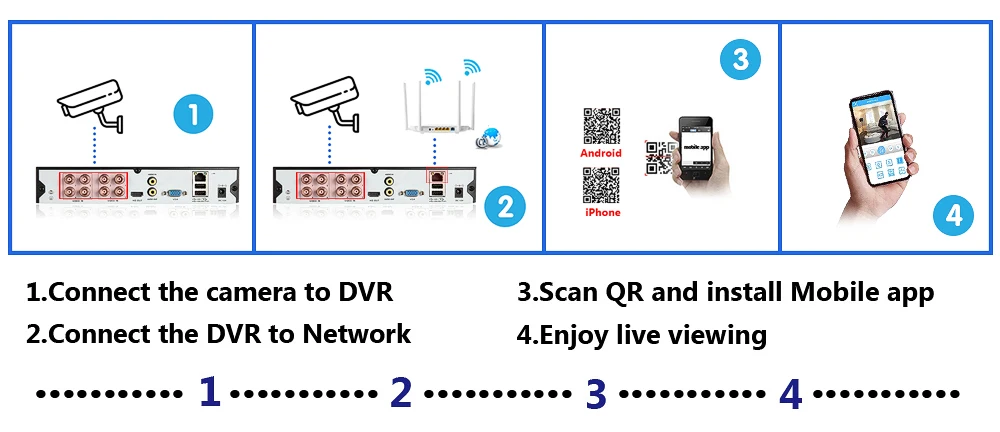

Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

Remote viewing anywhere,anytime

No matter where you are, you can remotely access the camera to see live streaming and stayconnected.Remotely view the camera via: free Xmeye App on your mobile device, free CMS Client on your computer, IE web browser.

H.265 8CH 4K DVR Specifications

SystemMain processor: Embedded processorOperating system: Embedded LinuxVideo compression:H.265System resource:Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back upInterfaceOperation interface:16bit real color GUI interface supportPreview : 1/4/8/9VideoVideo standard :PAL; NTSCImage encode:H.265Monitor quality: VGA,HDMI:High definitionAnalog input :8CH*8MP/8CH*5MPHybird input: 8CH*8MP(Analog)+4CH*5MP(Network)Network input:8CH*5MP /16CH*1080PMotion detection:SupportEmail Alert : SupportFace Detection:Support Face Smart Playback:SupportRemote Access:SupportAudioAudio compression :G.711AIntercom : YesRecord&PlaybackRecord mode:manual>alarm>motion detection>timingLocal playback:8MPVideo search:Time, date, event, channel searchStorage&Back upVideo storage : Local HDD ,NetworkBack up mode: Network backup, USB portable,HDD,USB imprint,SATA imprintInterfaceVideo input:8CH BNCVideo output : 1ch VGA,1ch HDMI HD outputLoop output : N/AAudio I/O :1CH input/1CH OutputAlarm I/O:N/ANetwork port:1* POE RJ45 1000M self-adaptive Ethernet port;USB port : 2* USB 2.0HDD port :1 SATA ports,max support 1*8TB(HDD is optional)OtherPower :DC 12VUSB Mouse:includedRemote Control : includedTemperature : -20℃+50℃Humidity : -10%-90%Dimension : L255mm* W225mm* H45mmWeight :1.5KGDVR LanguageRussian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on
