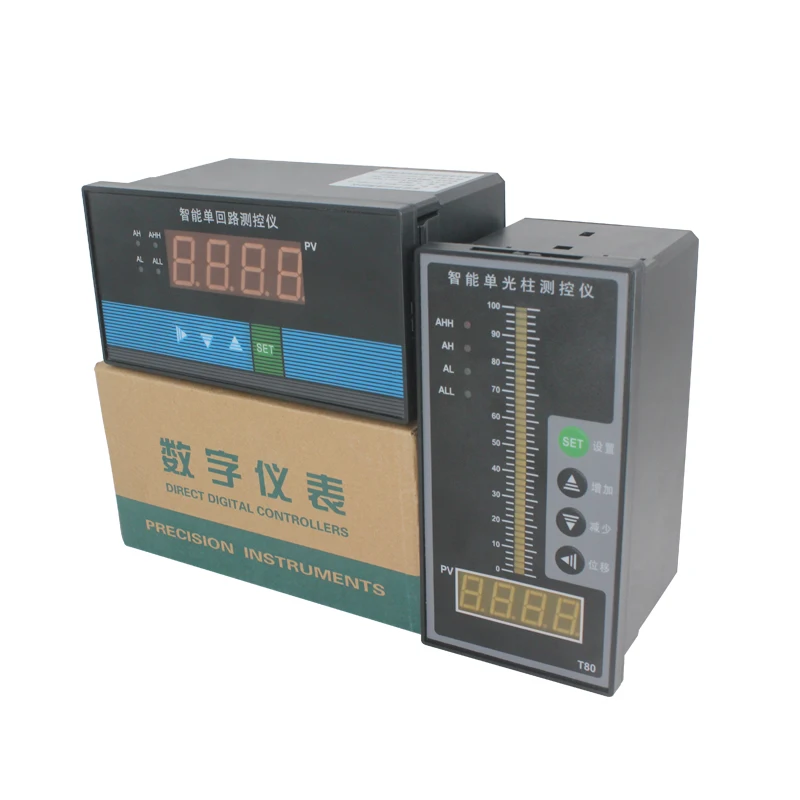

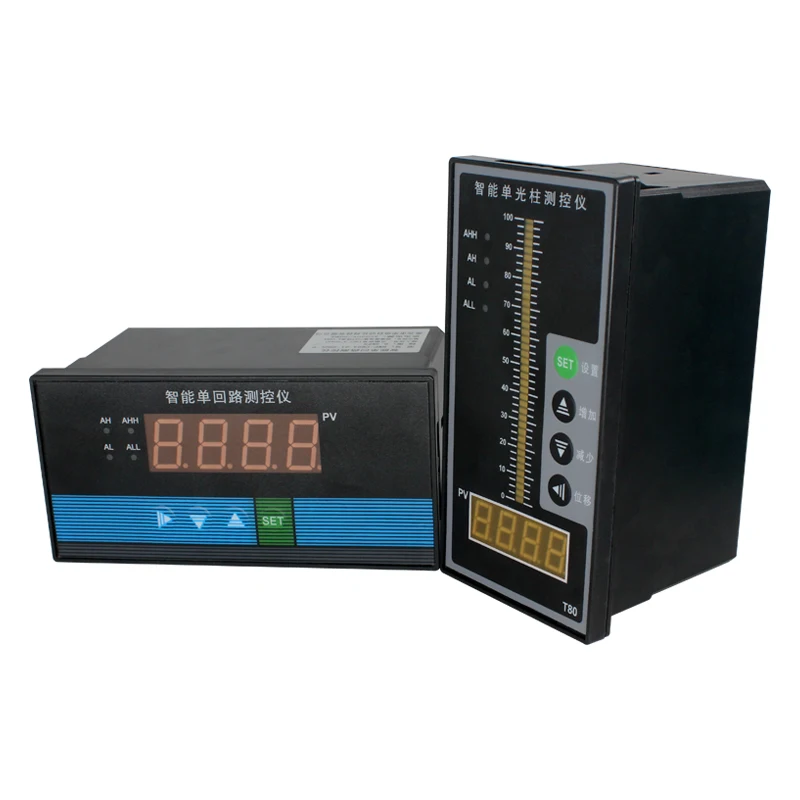

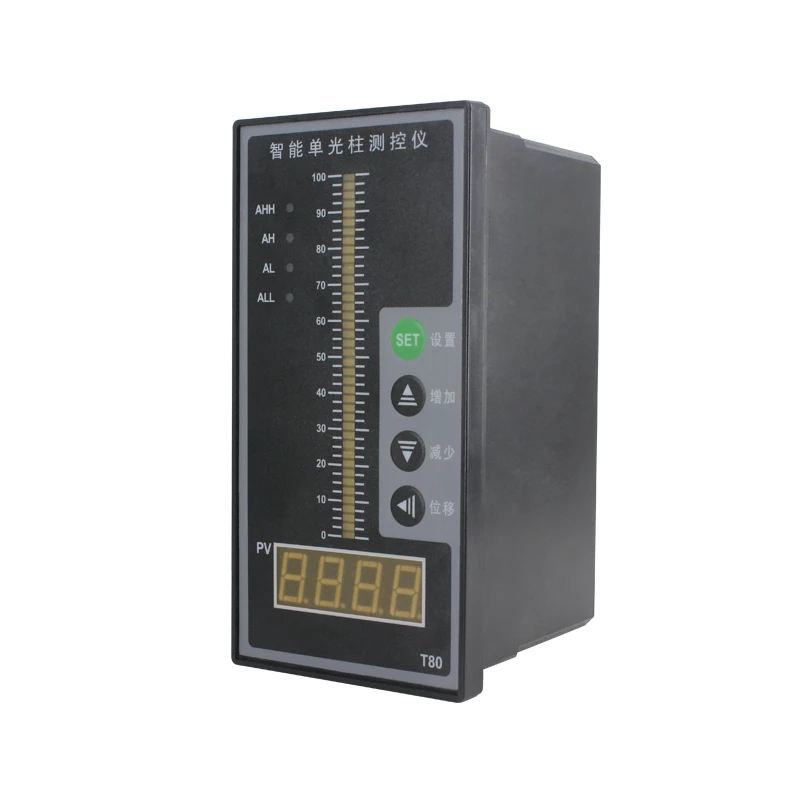

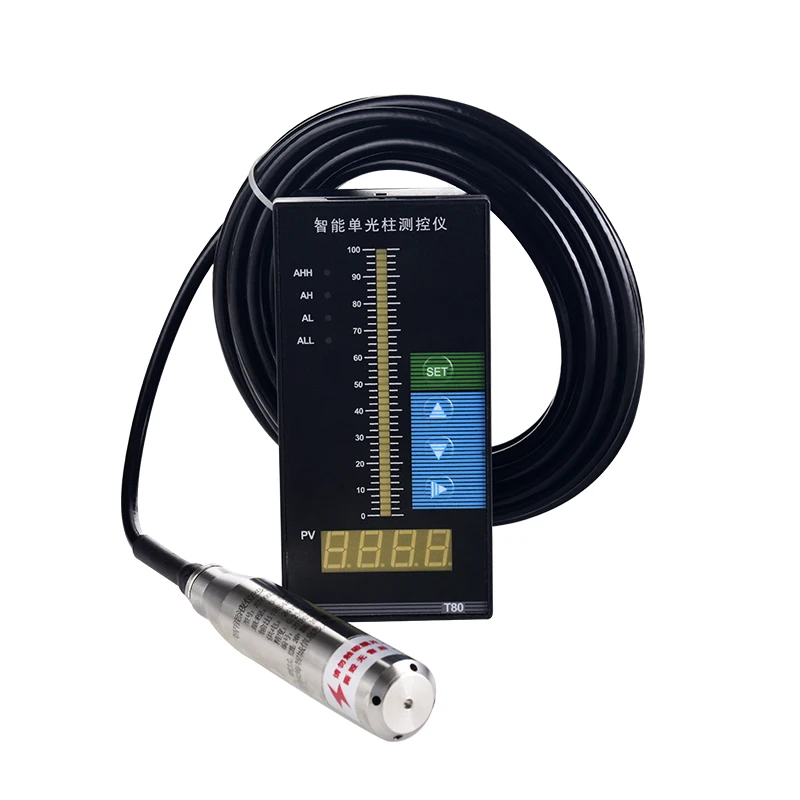

Professional factory Intelligent single light column water level indicator Digital display instrument

Pressure Measuring Instruments>>>Tools

Brand Name QiROD

Origin CN(Origin)

Certification CE

Certification FCC

Certification RoHS

Product name intelligent digital display meter

input signal 4~20mA,0~5V, 1~5V ,Pt100 etc.

output signal 4-20mA;Relay;RS485

Power supply AC220V/DC24V

Accuracy 0.3%FS

Working temperature -20℃~80℃

Ships From

China

Measuring Range

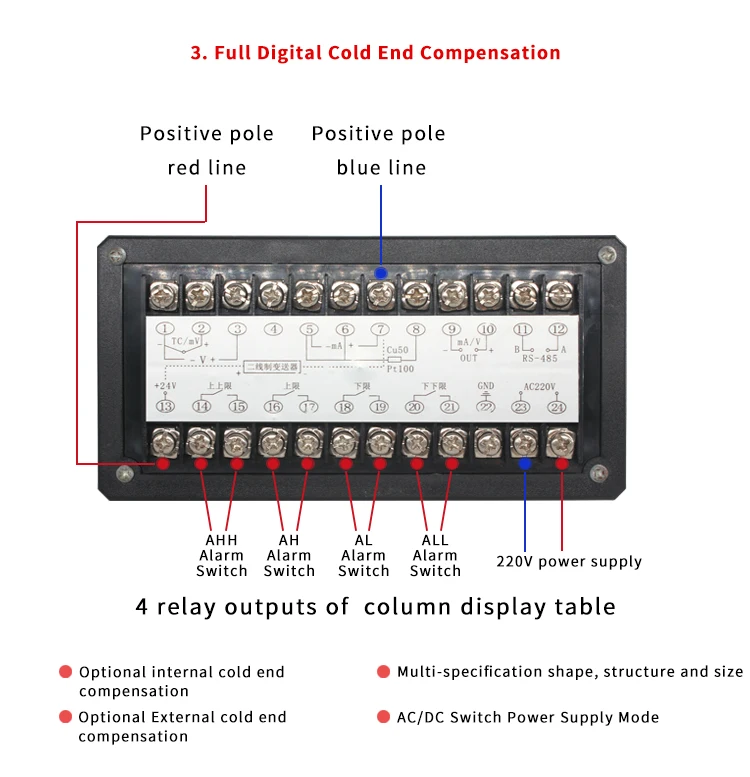

4 Relay output

4-20mA output

RS485 output

Professional factory Intelligent single light column water level indicator Digital display instrument

Note

Default Power supply is AC220V,

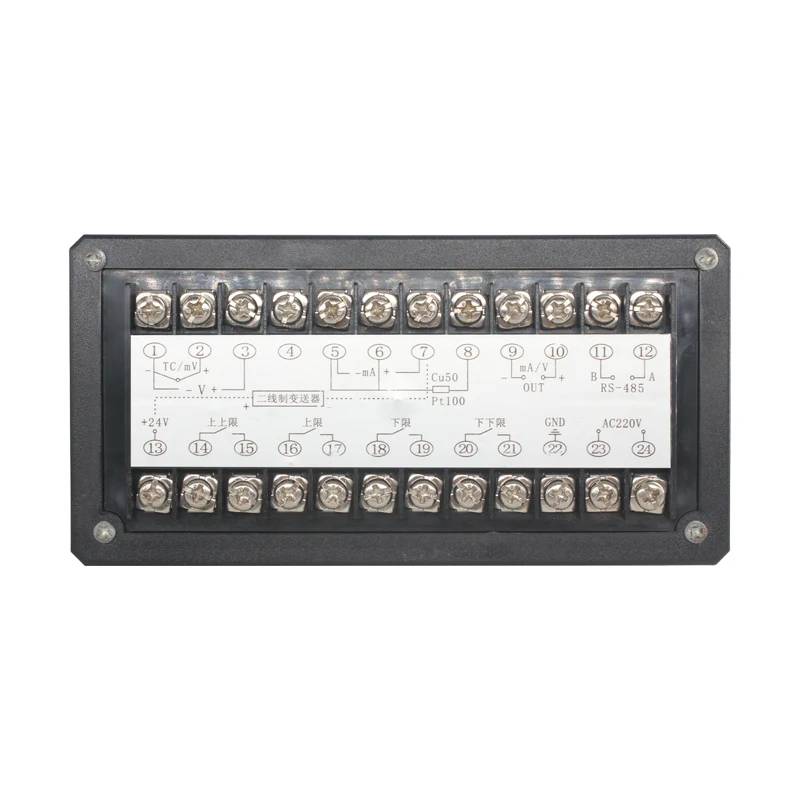

Selection  ：  4 relays / 4-20MA  /RS485 output

(With 24v power distribution)

（can provide you DC24V power supply if you need，just leave us a message）

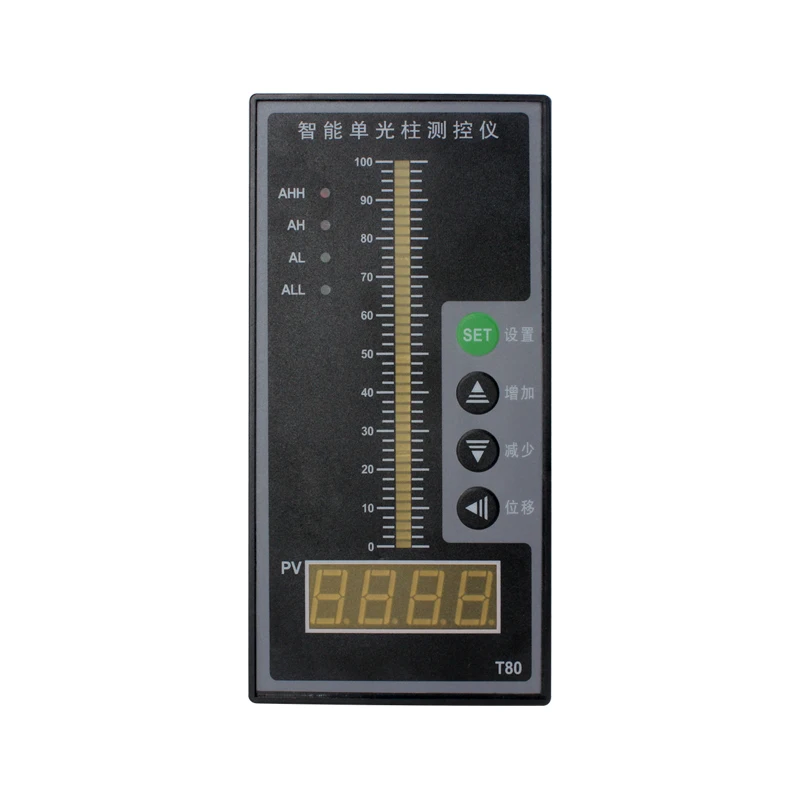

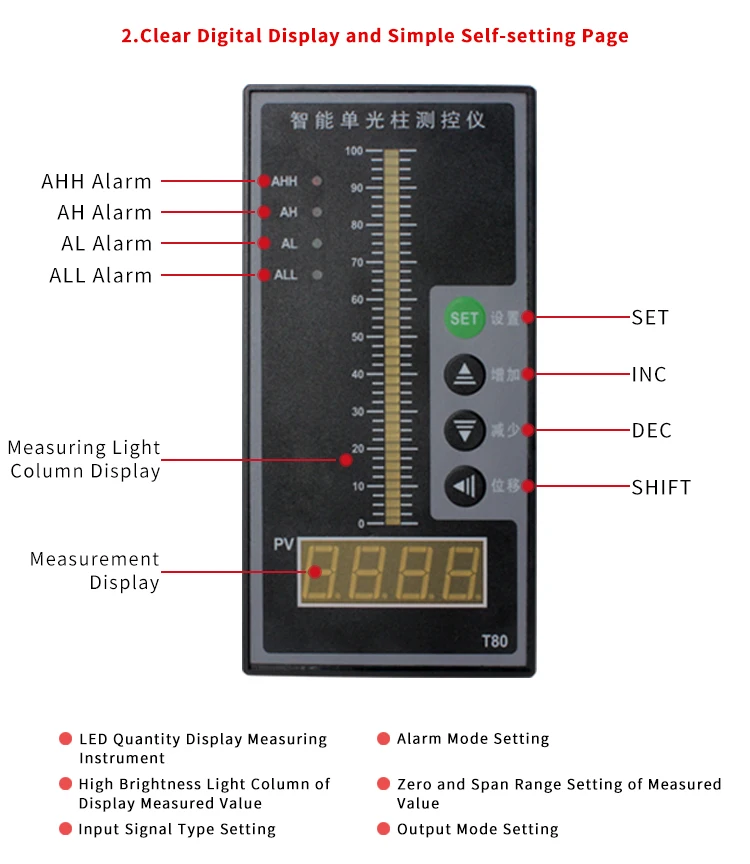

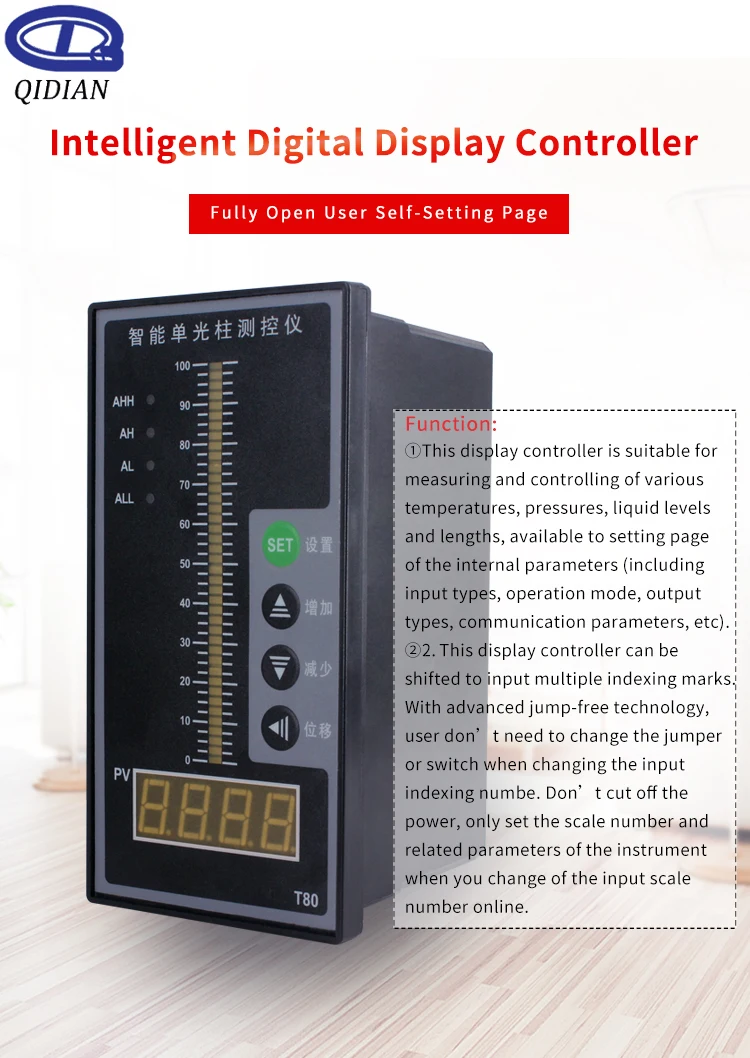

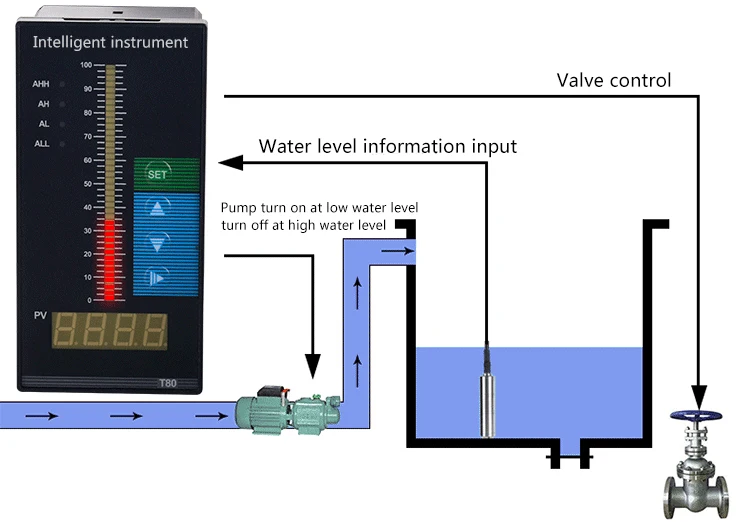

Product descriptionTheintelligent digital/optical-column display controller adopts advanced micro-processing for intelligent control, applicable to various physical quantities such as temperature, humidity, pressure, liquid level, instantaneous flow rate, speed, display and control of detection signals, and can Non-linear input signal for high-precision linear correction measurement.Using advanced wireless technology, the input port is equipped with a single channel and universal signal input function. Itrequires only a simple selection of the instrument menu to easily switch between multiple input signals, improving the versatility and reliability of the instrument.High-brightness LED digital display and high-resolution light column display (ratio display) make the display of measurement/control values clearer and more intuitive. The input and output circuits are optically isolated and have strong anti-interference ability.

CAN BE WORK WITH
