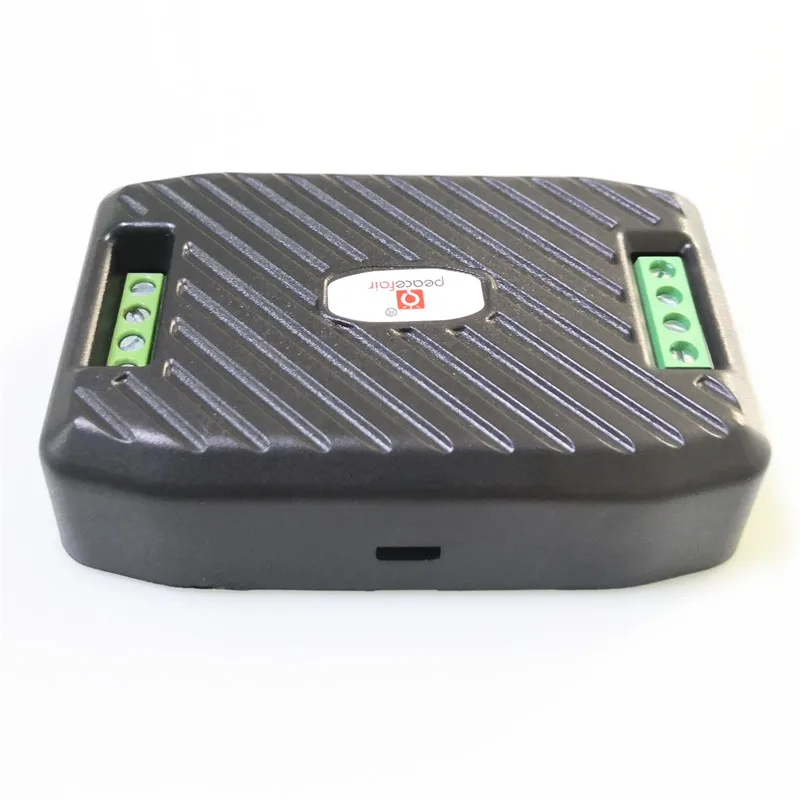

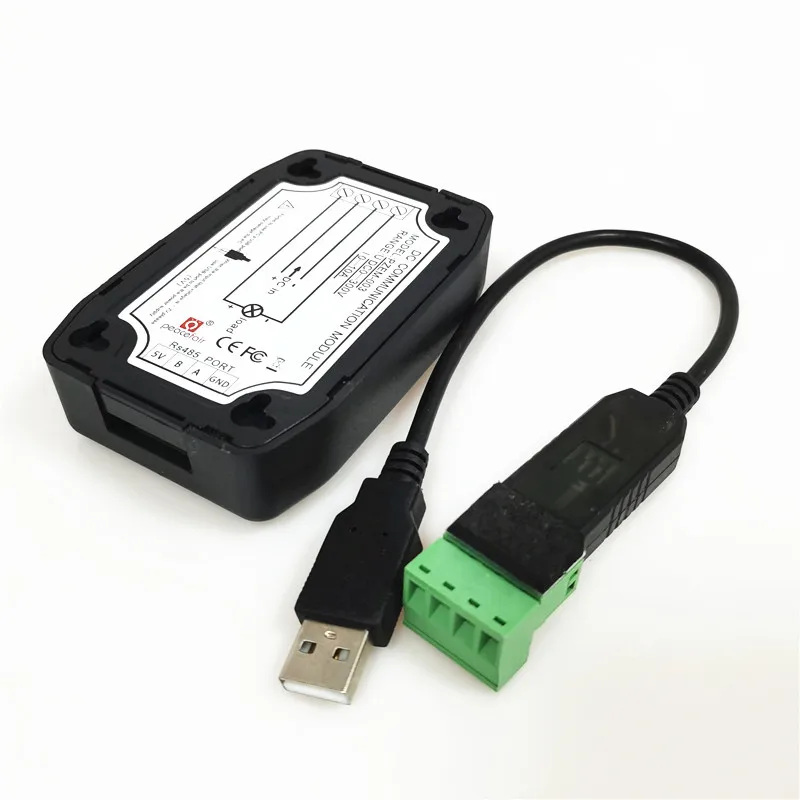

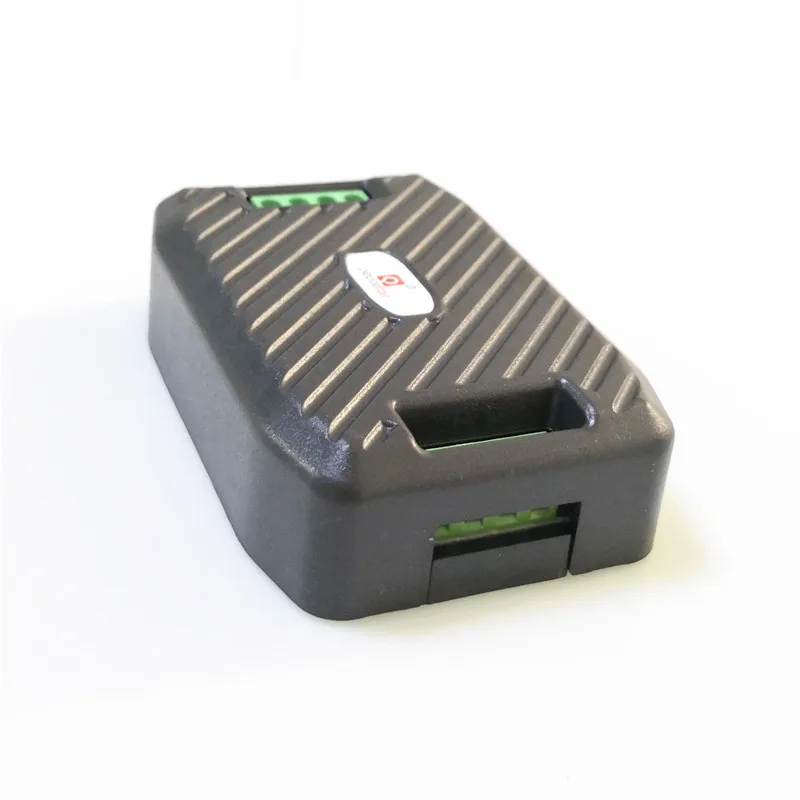

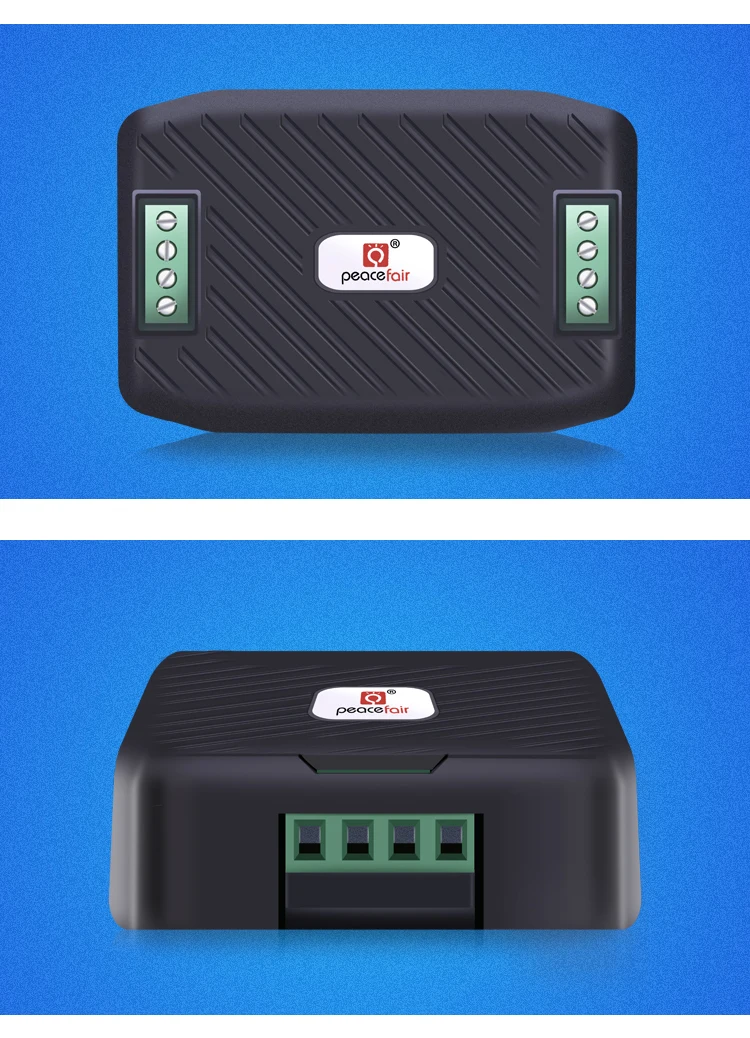

Peacefair PZEM-003 300V 10A Wattmeter Voltmeter RS485 Modbus Volt Amp Current Power Energy Car Voltage Tester With USB Converter
Electrical Instruments>>>Tools
Brand Name peacefair
Certification CE
Certification FCC
DIY Supplies ELECTRICAL
Origin CN(Origin)
Dimensions 90*60.5*23mm(L*W*H)
Measuring Voltage Range 0.05-300V
Operating Temperature -10-60 degree
Accuracy Class 1.0 grade
Model Number PZEM-003
Measuring Current Range 0.01-10A
Power range 0-3kw
Energy range 0-9999kwh
Accessory USB to RS485 converter
Weight 110g
Communication port RS485
Protocol Modbus

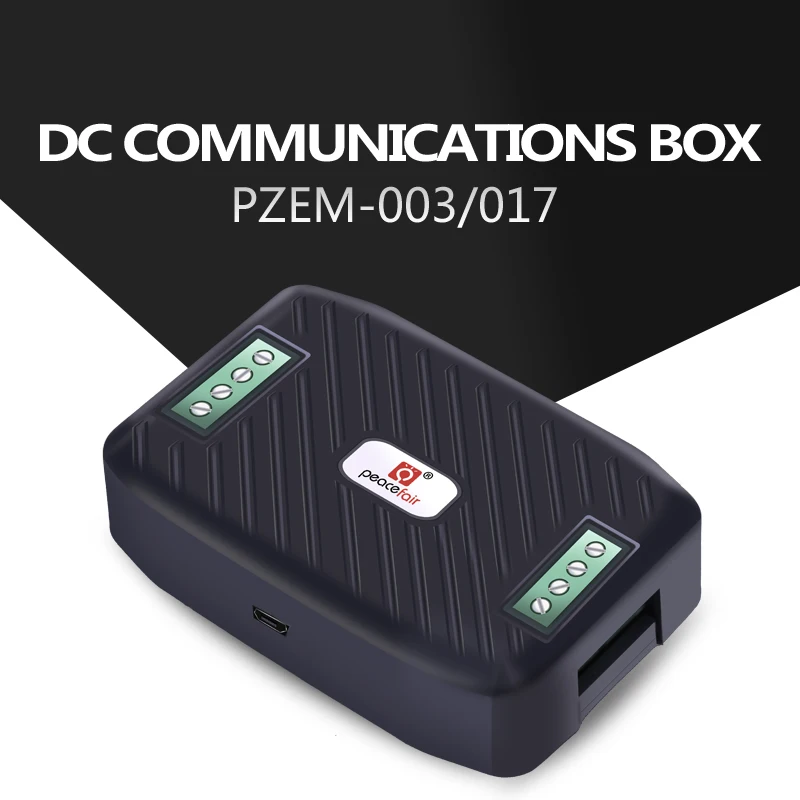

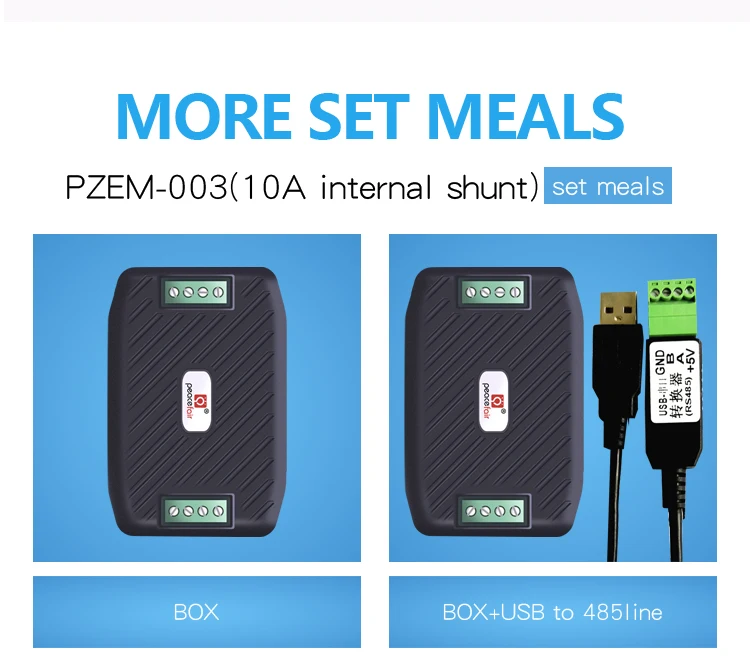

Peacefair Latest Version DC 0-300V Voltmeter PZEM-003 RS485 Modbus Voltage Current Power Energy Car Voltage Detector With USB This document describes the specification of the PZEM-003/017 DC communication module, the module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read through the RS485 interface.PZEM-003: Measuring Range 10A (Built-in Shunt)
Peacefair Brand Official Store From The ManufacturerAll orders will be shipped with a tracking number, you can easily find the record from the website: www.17track.net/en

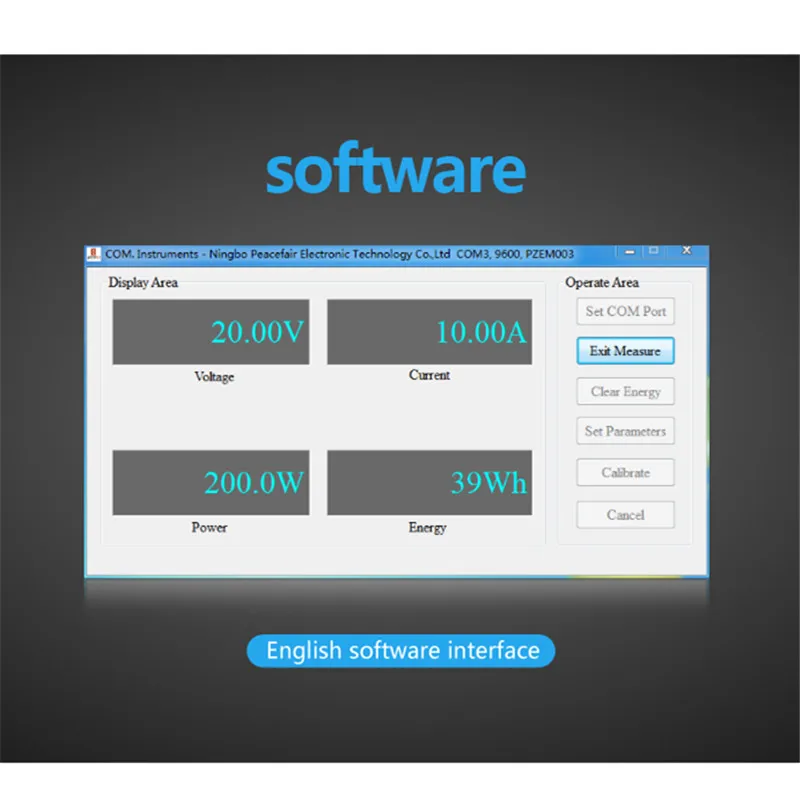

Please click this link to download the software and the user manual.
Link: http://www.mediafire.com/file/vtvevyvattxi5sy/PZEM003%25EF%25BC%258C017-Master-English.zip/file
1. Working voltage: 0.05 ~300VDC
2. Test voltage: 0.05 ~300VDC
3. Rated power: 10A/3000W
4. Measurement accuracy: 1.0 grade
Function and Display format
1 Voltage
1.1 Measuring range:0.05-300V. (when the test voltage is ＜7V, please use the independent power supply mode)
1.2 Resolution:0.01V.
1.3 Measurement accuracy:1%.
2 Current

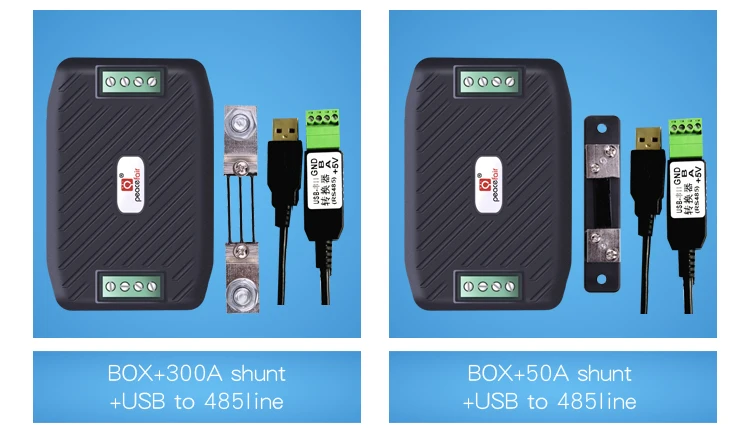

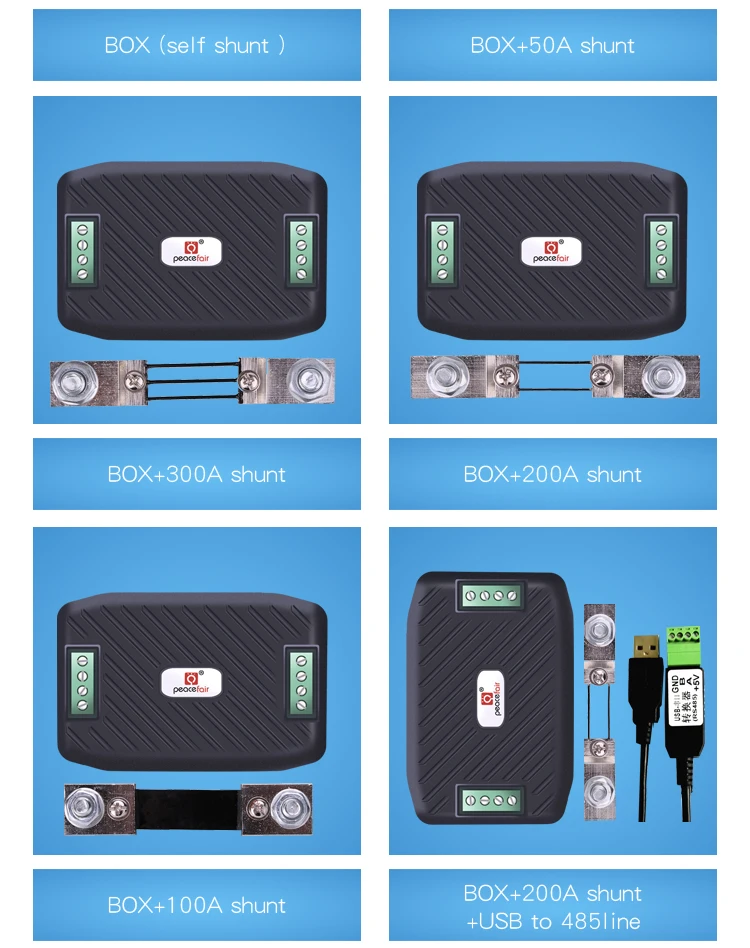

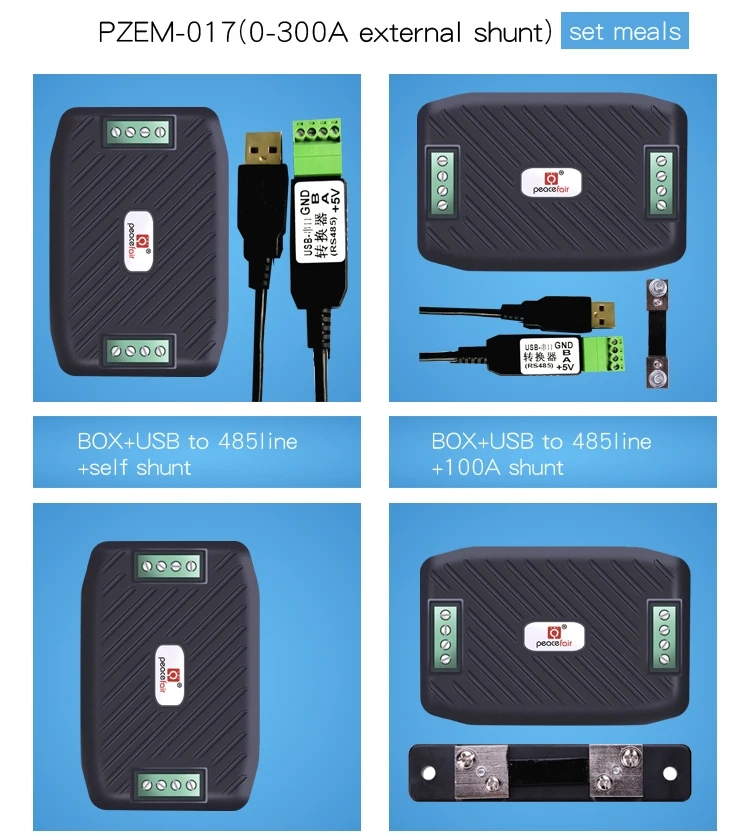

2.1 Measuring range:0.01-10A(PZEM-003);0.02-300A(PZEM-017;can be matched with 50、100、200、300A four kinds of shunt).
2.2 Resolution:0.01A
2.3 Measurement accuracy:1%
3 Power
3.1 Measuring range:0.1-3kW(PZEM-003);0.2-90kW(PZEM-017)
3.2 Resolution: 0.1W
3.3 Measurement accuracy:1%
4 Energy Consumption
4.1 Measuring range: 0-9999kWh
4.2 Resolution: 1Wh
4.3 Measurement accuracy:1%
Reset energy: use software to reset.
Over Voltage alarm
Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm
The default high voltage threshold is 300V, the default low voltage threshold is 7V.
Communication interface
RS485 interface.
Communication protocolPhysical layer protocol
Physical layer use UART to RS485 communication interface.
Baud rate is 9600, 8 data bits, 2 stop bit, no parity.
Other instructions1 RS485 interface is passive output, need external connect 5V power supply and the the external power supply should ＞100mA.
2 When the input test voltage is less than 7V, it must supply 5V independent work voltage through MICRO USB port；
Note: Do not use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC !
Working temperature
-20’C ~ +60’C
100% new brand high quality

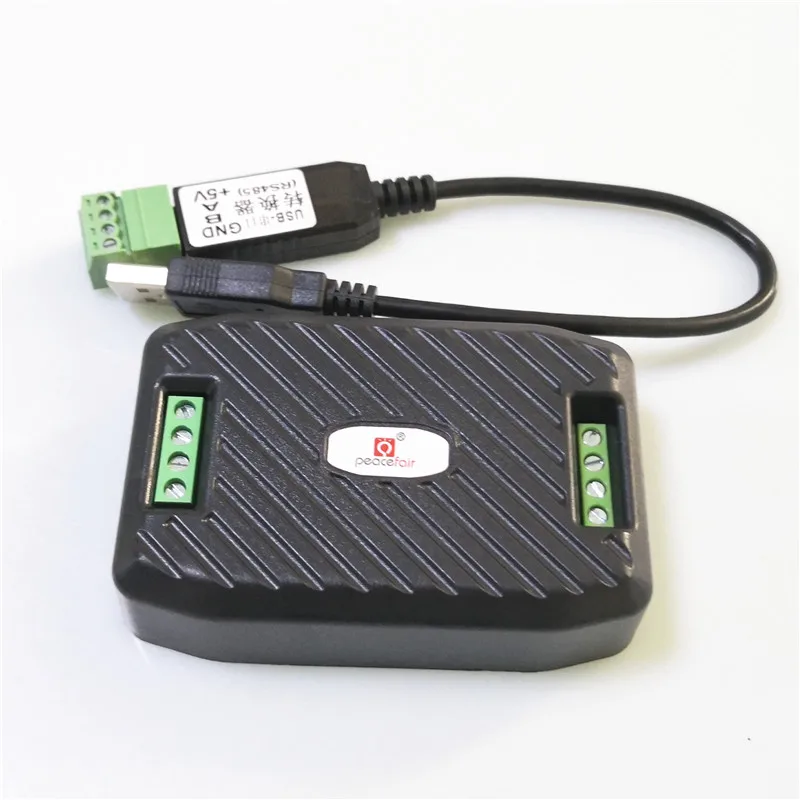

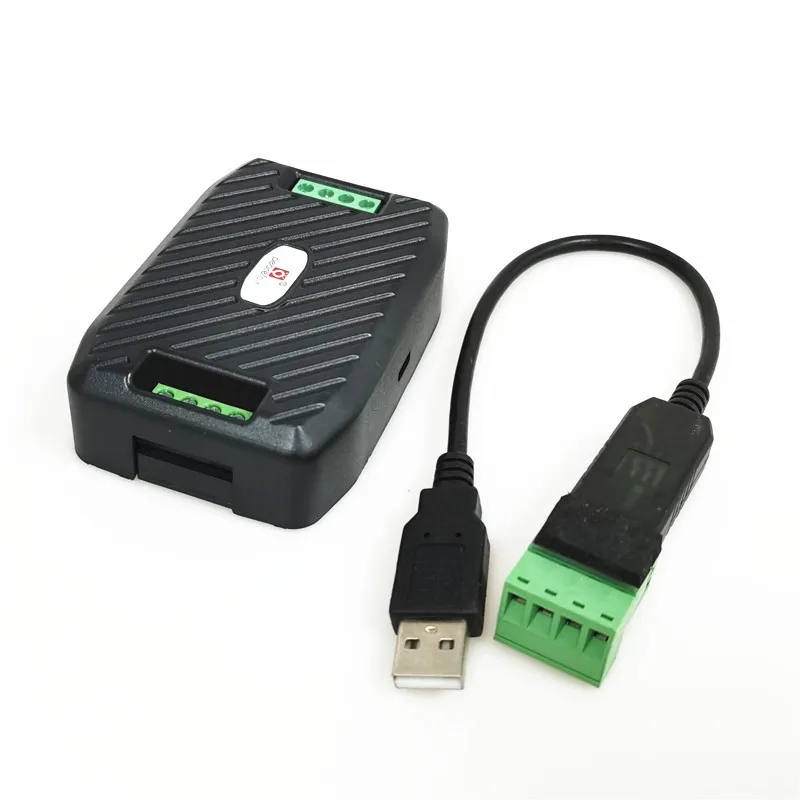

1 x PZEM-003 Module
1 x USB to 485 cable
