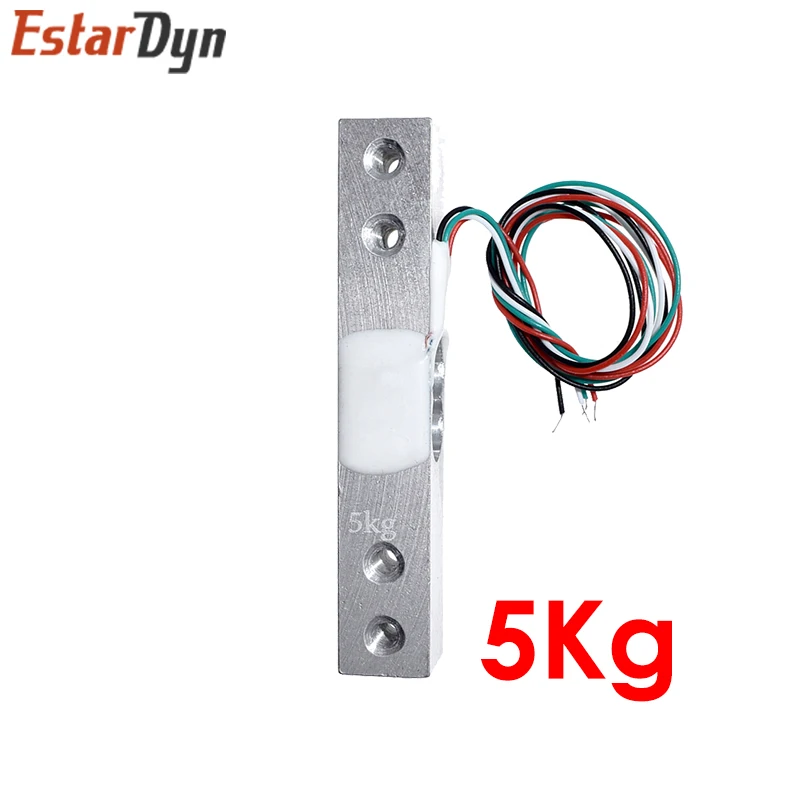

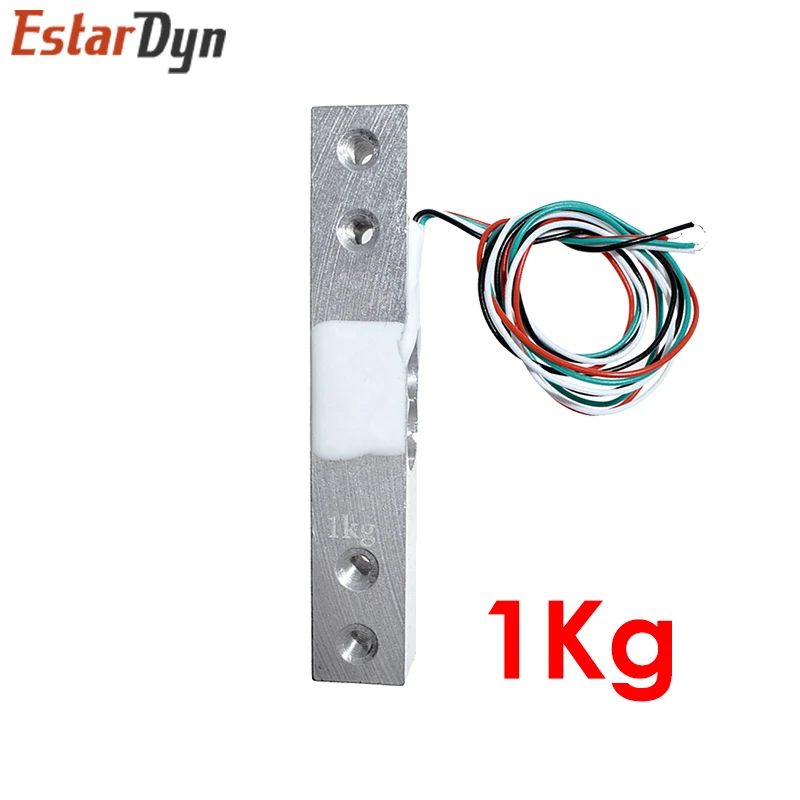

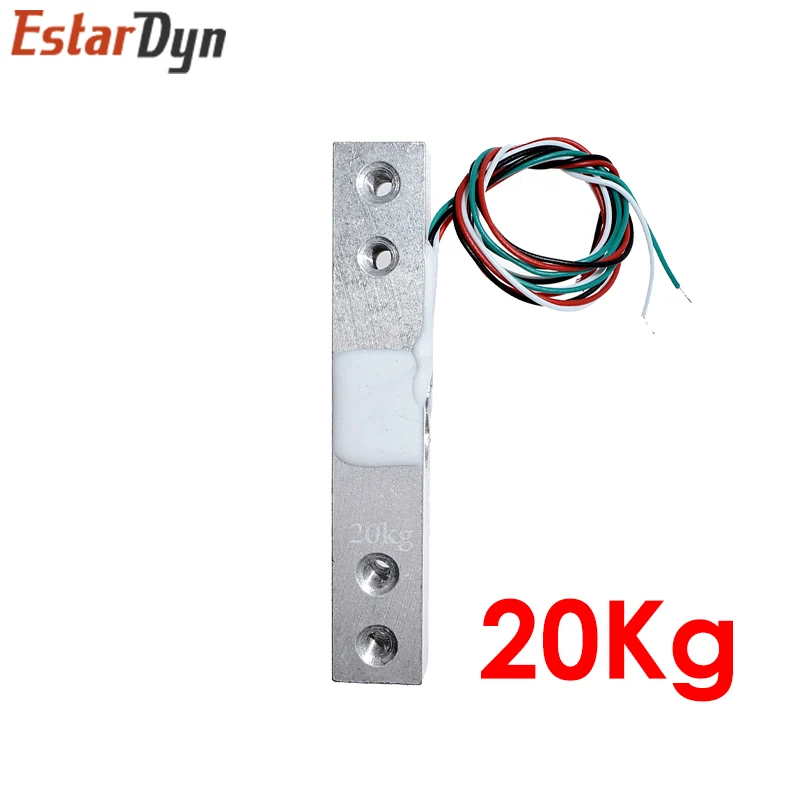

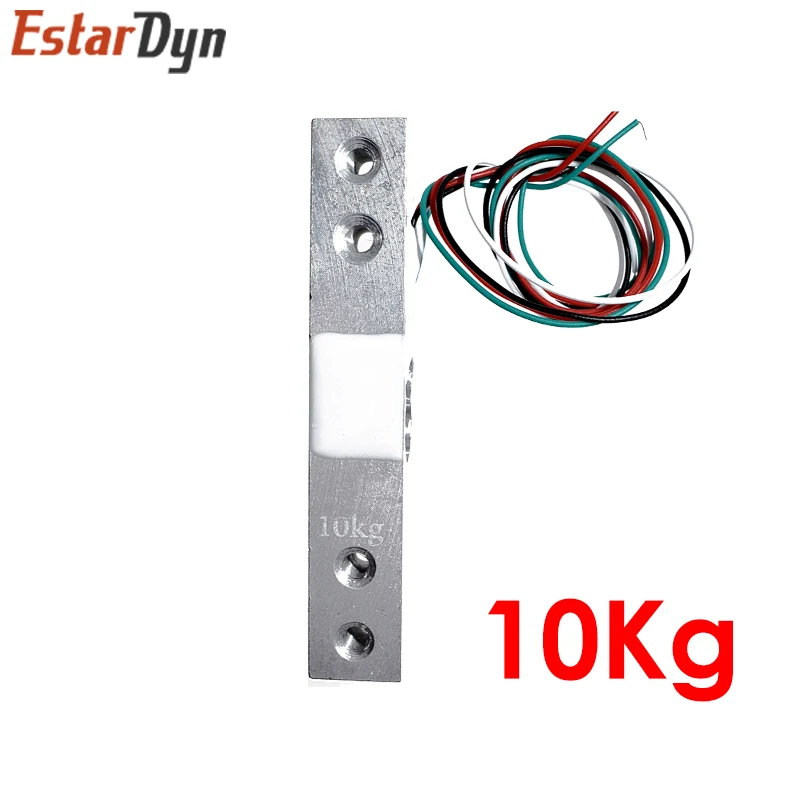

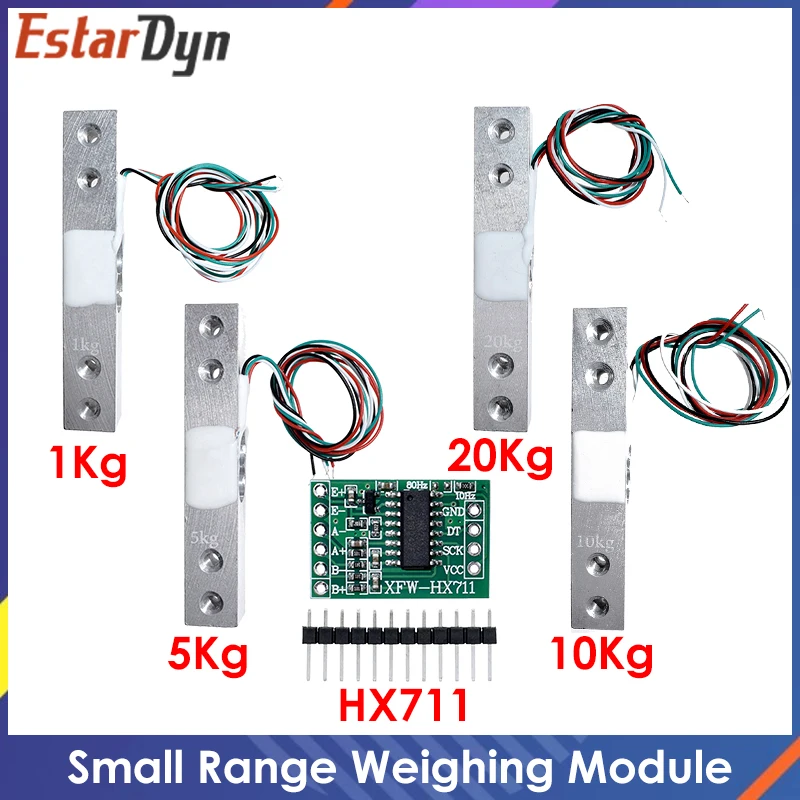

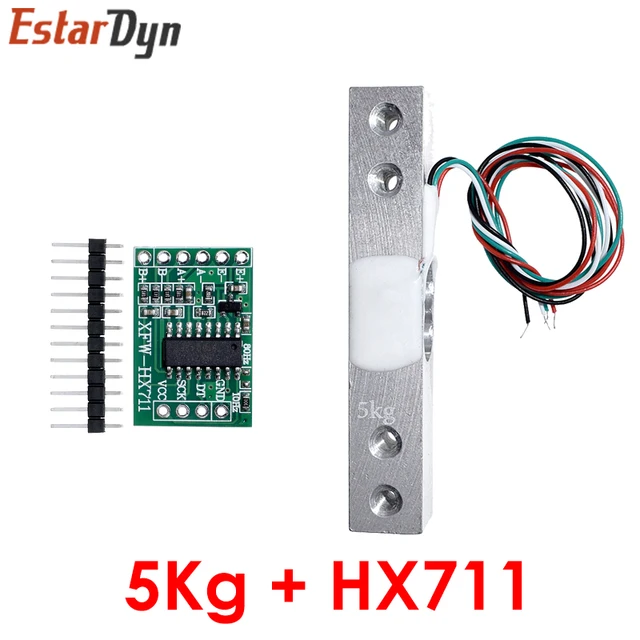

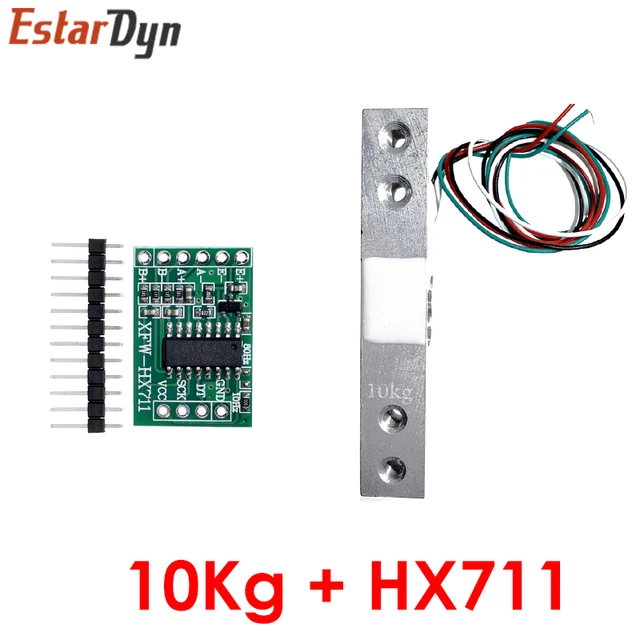

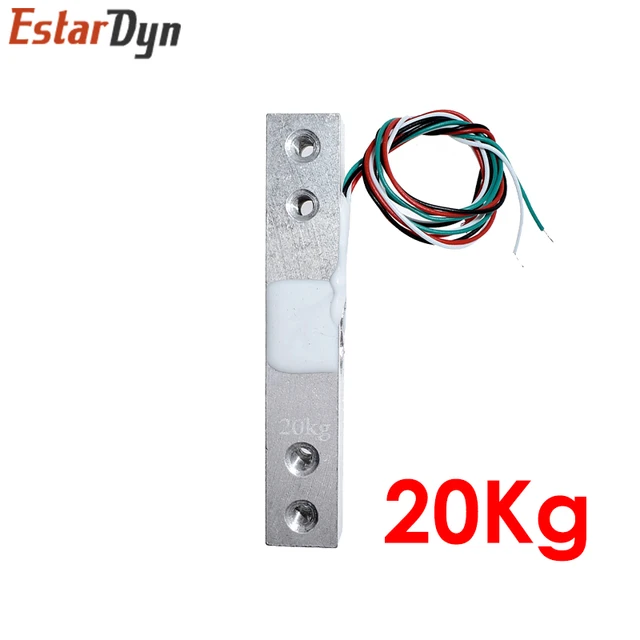

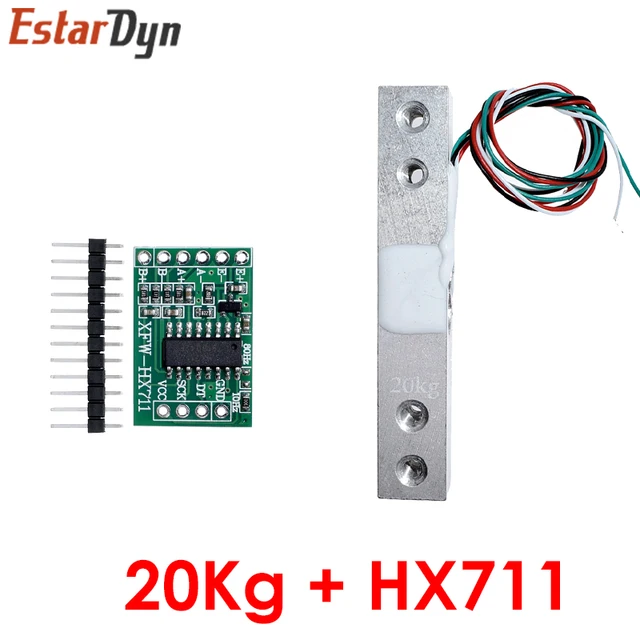

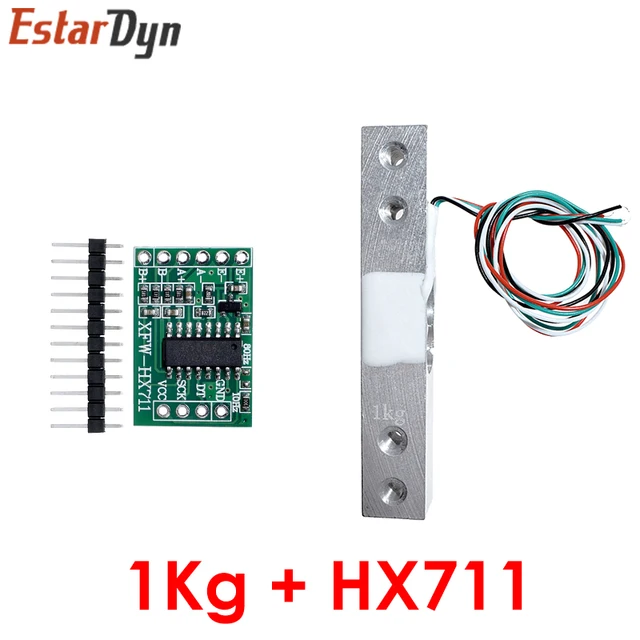

Load Cell 1KG 5KG 10KG 20KG HX711 AD Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure Sensor

Sensors>>>Electronic Components & Supplies

Brand Name Estardyn

Origin CN(Origin)

Usage Pressure Sensor

Material Metal

Type Biosensor

Output Digital Sensor

Theory Hall Sensor

Model Number Weight Sensor

is_customized Yes

Color

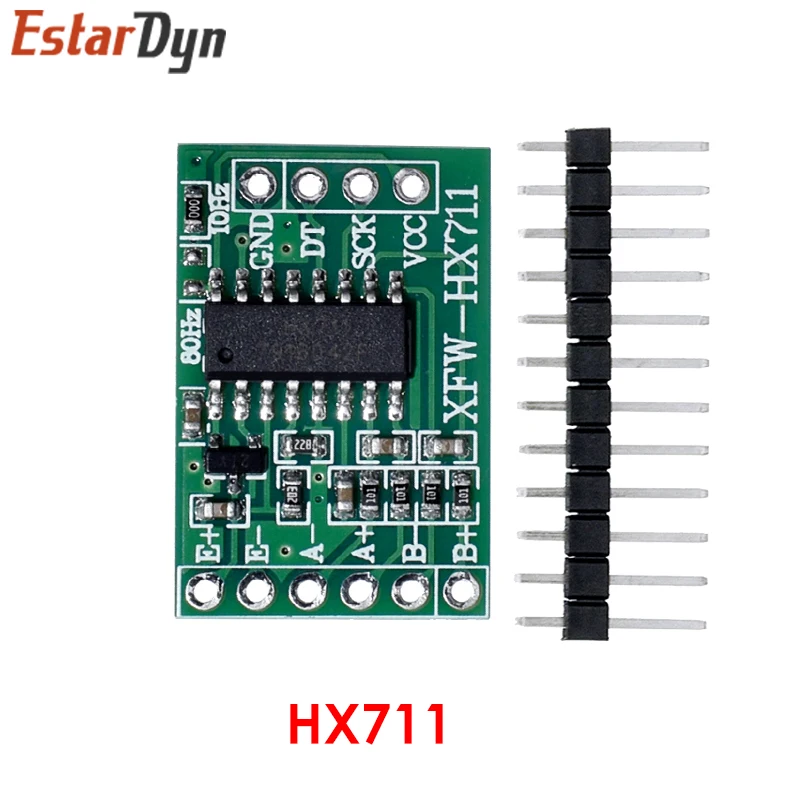

FeaturesTwo selectable differential input channelsOn-chip active low noise PGA with selectable gain of 3264 and 128On-chip power supply regulator for load-cell and ADC analog power supplyOn-chip oscillator requiring no external component with optional external crystalOn-chip power-on-resetSimple digital control and serial interface: pin-driven controlsno programming neededSelectable 10SPS or 80SPS output data rateSimultaneous 50 and 60Hz supply rejectionCurrent consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uAOperation supply voltage range: 2.6 ~ 5.5VOperating Temperature Range:-20 degree ~ +85 degreeConnection:Red to E+Black to E-Green to A+White to A-
