Diese 433Mhz wireless Wall Switch rf 86 wall panel transmitter Safety Switch and AC 110V 220V relay interruptor for Light Lamp

Switches>>>Lights & Lighting

Brand Name Diese

Origin CN(Origin)

Certification CCC

Certification ce

Certification ROHS

Current 10A

Features 433Mhz rf Wireless Remote Control Switch can be pasted

Material Plastic

Item Type Switches

Warranty 1 Year

Is Smart Device no

Model Number 2201D+WP07 Wireless RF Wall Switch Lighting Controller Switch Panel

Switch Type Push Button Switch

Voltage AC 90V-250V

Max Current 10A

Max Load 2200W

Specialfication 86 Panel Wall Switch

Remote Distance More than 50 meters in open area

Connection Method Wireless remote control

Battery 12V 27A (Not include)

Double-side Tape Include

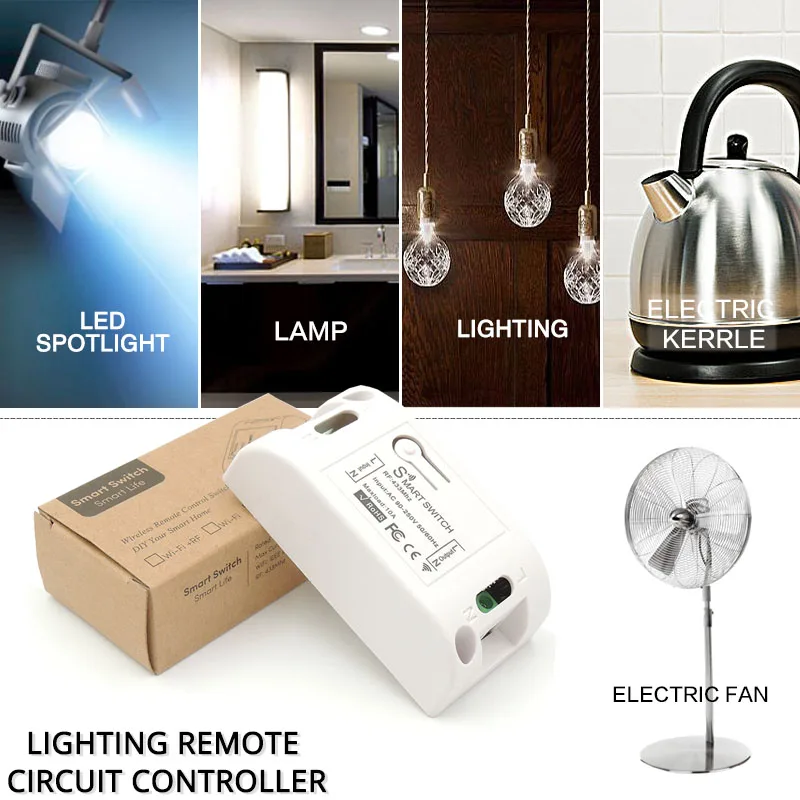

Application Light, Bulb, LED,Lamps, Fan, Door, Gate, Pump and so on

Application scenario Home, Farm, Factory, Office, Supermarkets and so on

Code Learning Code EV1527

Color

Ships From

China

SPAIN

Russian Federation







Diese 433Mhz wireless Wall Switch rf 86 wall panel transmitter Safety Switch and AC 110V 220V relay interruptor for Light Lamp



RF Output of Good Stability

Wide Availability Simple to Use Strong Signal Transmission

Perfect Craft & Detail Control Excellent Detail Design

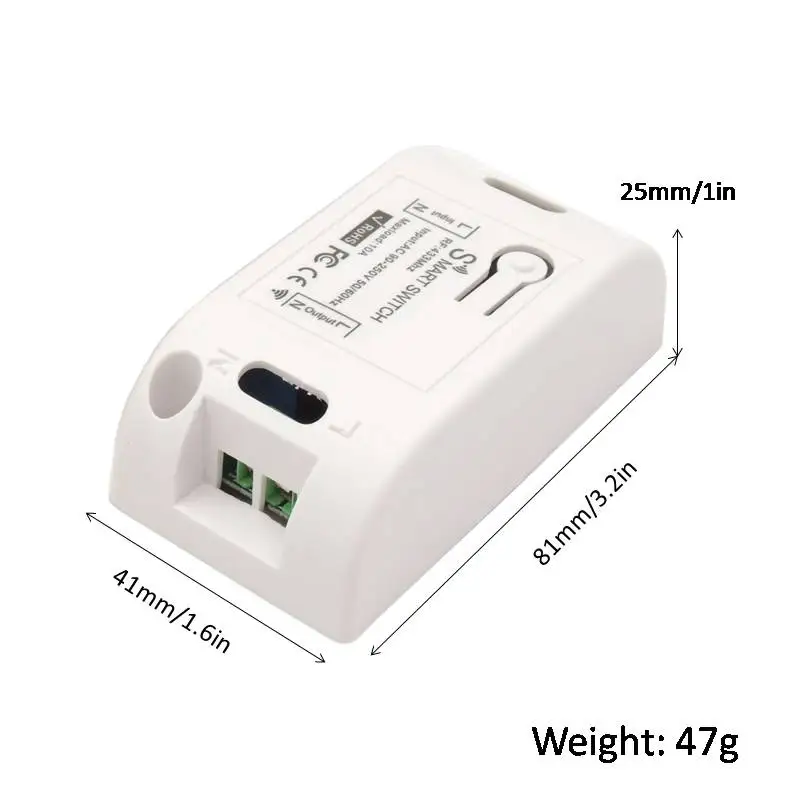

Product Detail Working voltage  :  AC 90V~250V Quiescent Current  :  <5MA Max current  :  10A Max load  :  2200W RF frequency  :  433MHz Working temperature  :  -30~+80 Receiving Sensitivity  :  >97dbm Amount of storage remote controls  :  25 pieces Support encoding  :  1527 Leaning code,2262 fixed code RF Operating mode  :  ASK superheterodyne wireless reception Receiving range  :  Open space is more than 50 meters Wall switch size: 86standard size Switch battery :  1  27A 12V battery (Not include)

Package include

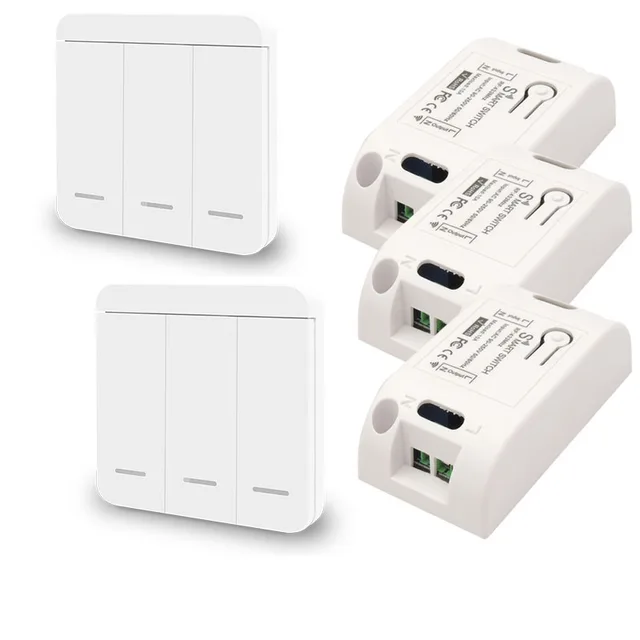

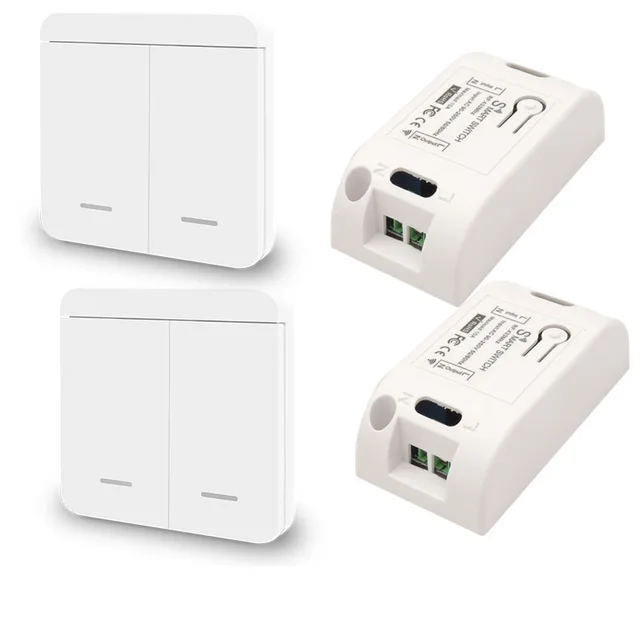

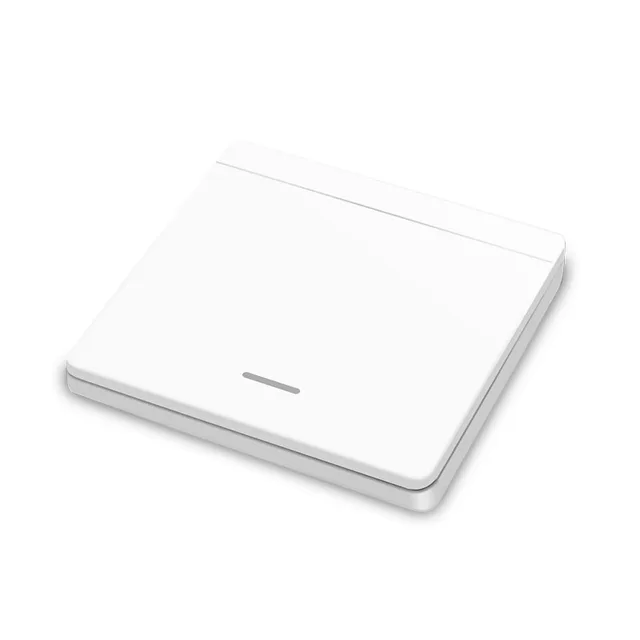

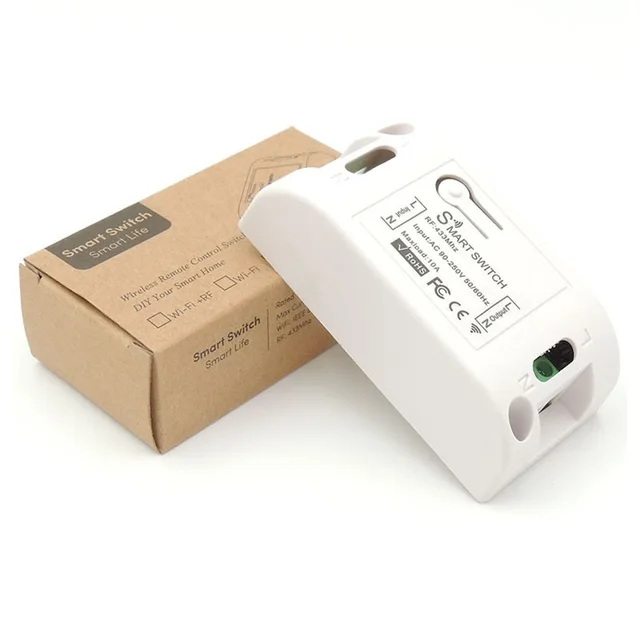

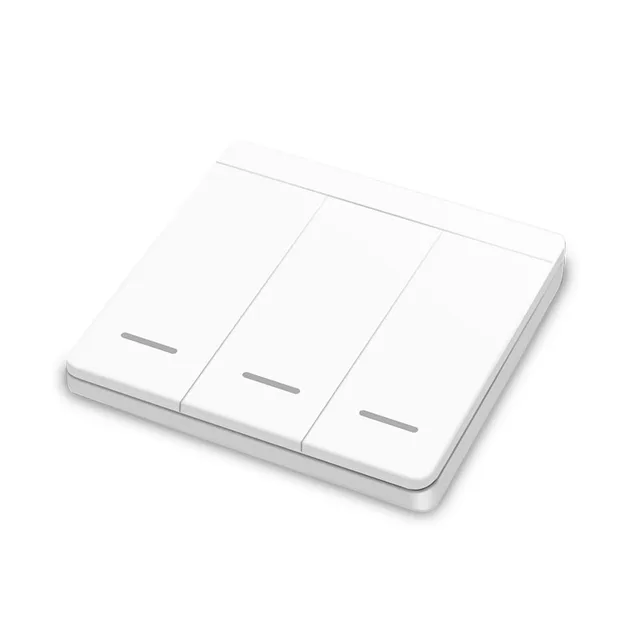

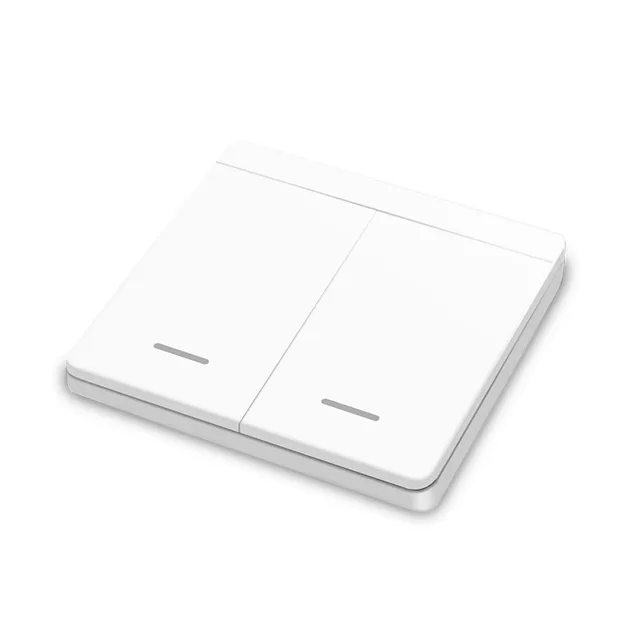

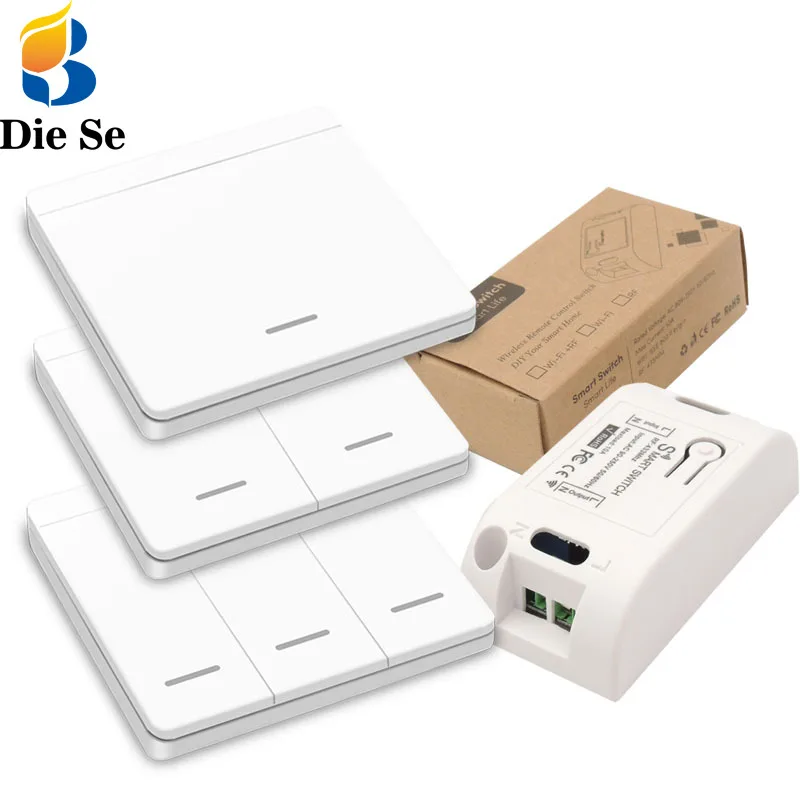

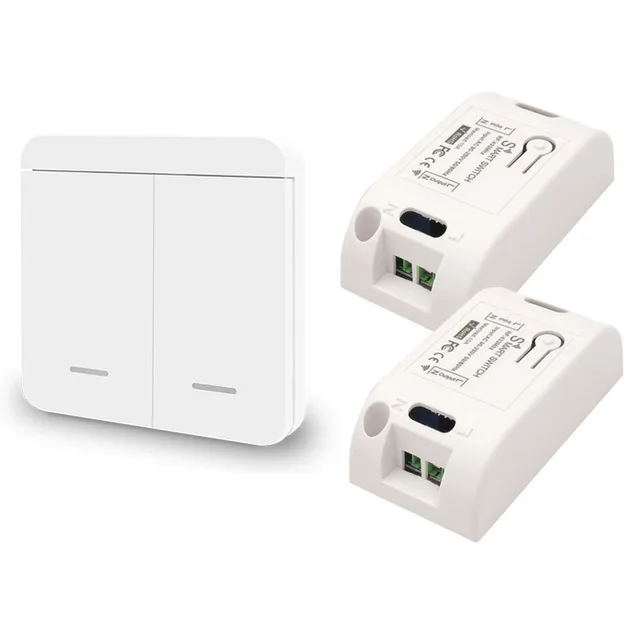

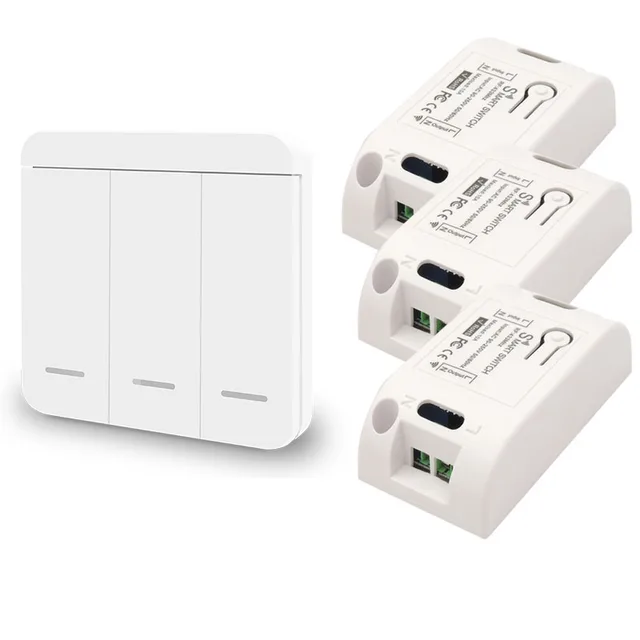

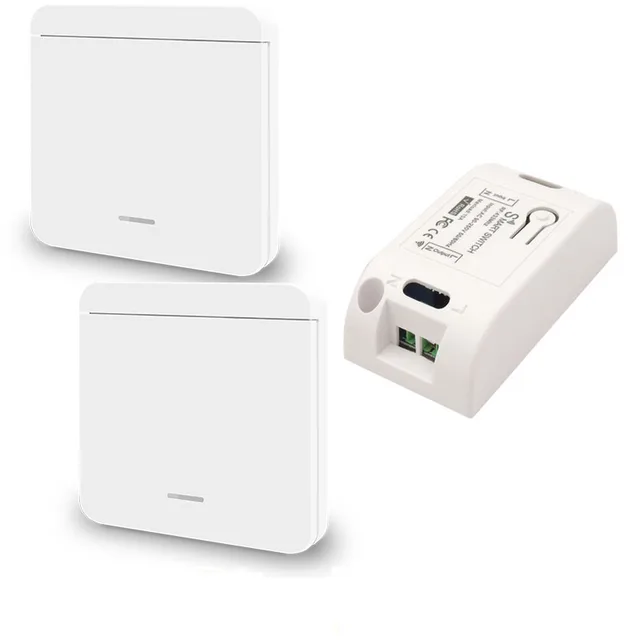

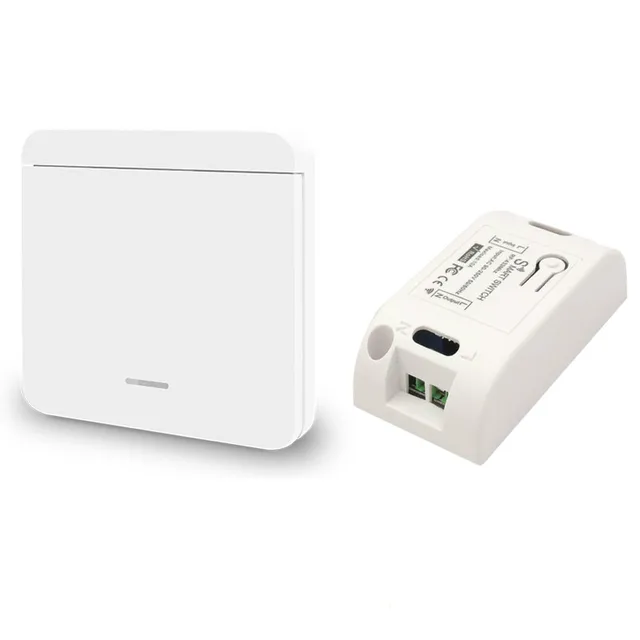

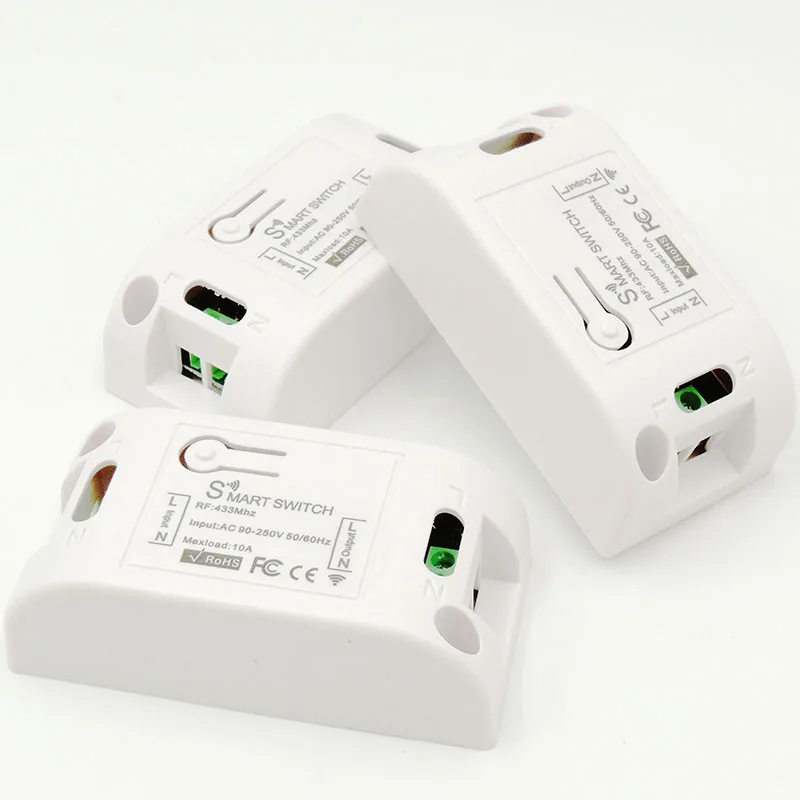

Receiver module ( include Shell ) Wall switch (Not include battery ) double-sided tape The Quantity depends on the option you choose

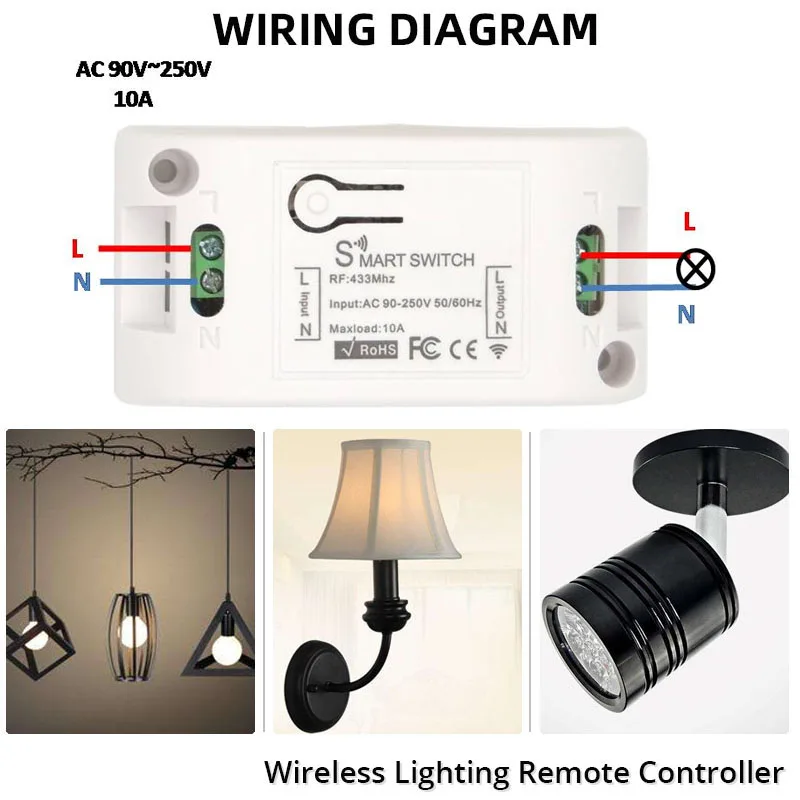

Wiring Diagram

Operating Mode

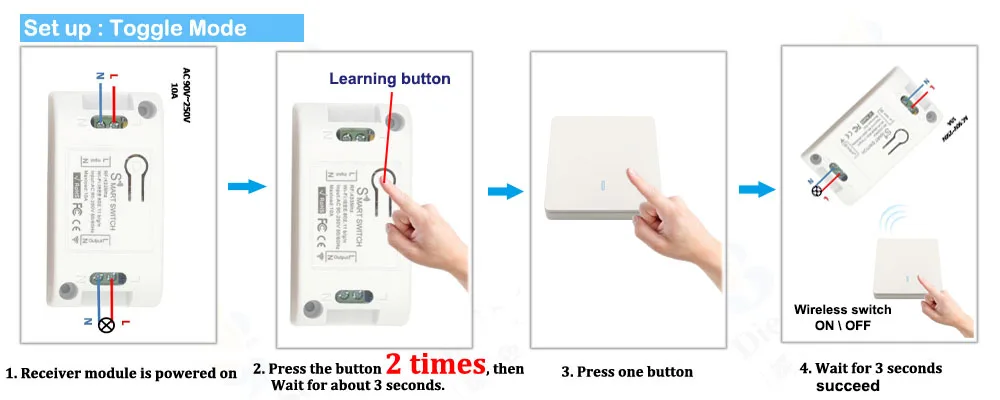

Set up



1. Press the learning button(on the Receiver)twice. Wait for 3 seconds;

2. Press one button on the wall switch. Wait for 3 seconds. Succeed.

Reset Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

    Q & A Q : C anone receiver be controled by diffrent wall switch? A : Yes, each receiver can add about 25wall switch. Q : Canonewall Switch control 2 receivers individually ? A : Yes, wall switch with 2 buttons can control 2 receivers ,wall switch with 3 buttons can control 3 receivers. Q : Can 1 button on wall switchcontrol 2 receivers at the same time? A : Yes , You can program it by yourself. For example, matched Button "1" with receiver "1",and then matched Button "1" with receiver "2" too. This Button "1" can control receiver "1" and receiver "2" at the same time. On this product detailed page, there is a demonstration video for your reference. *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
