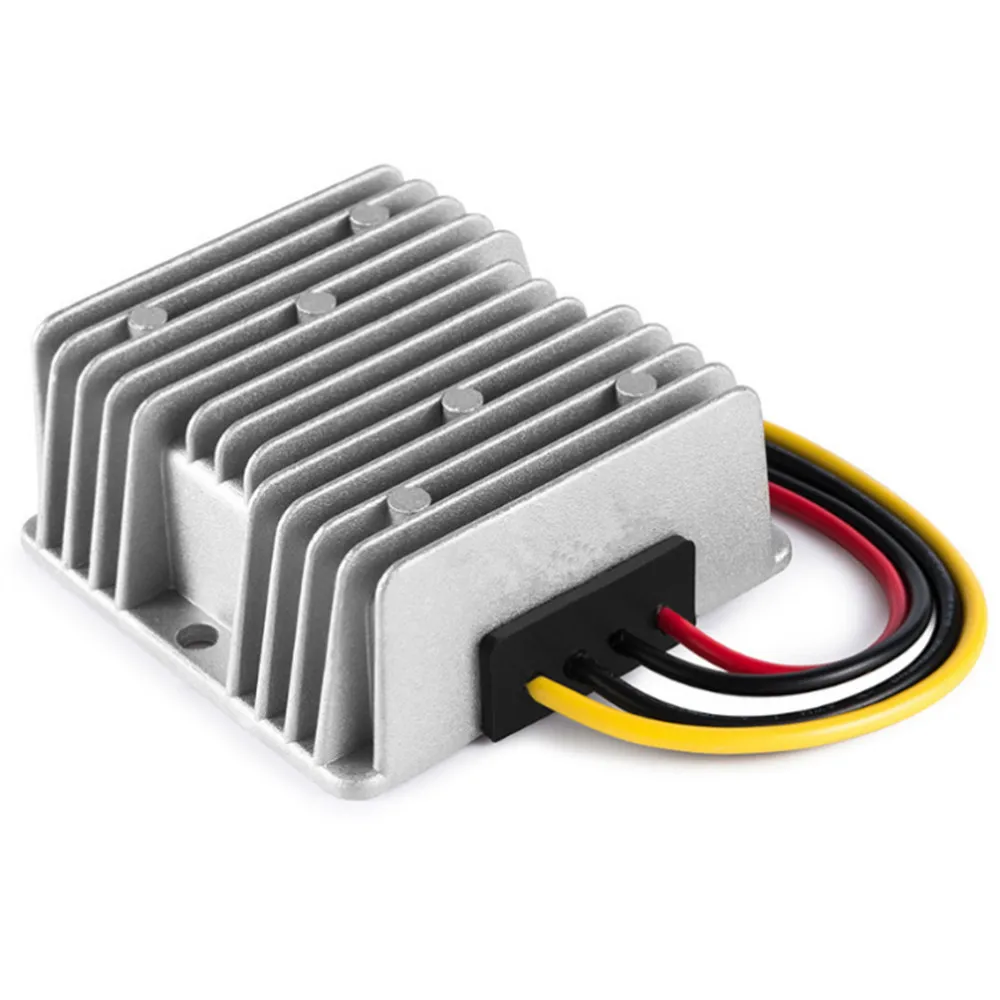

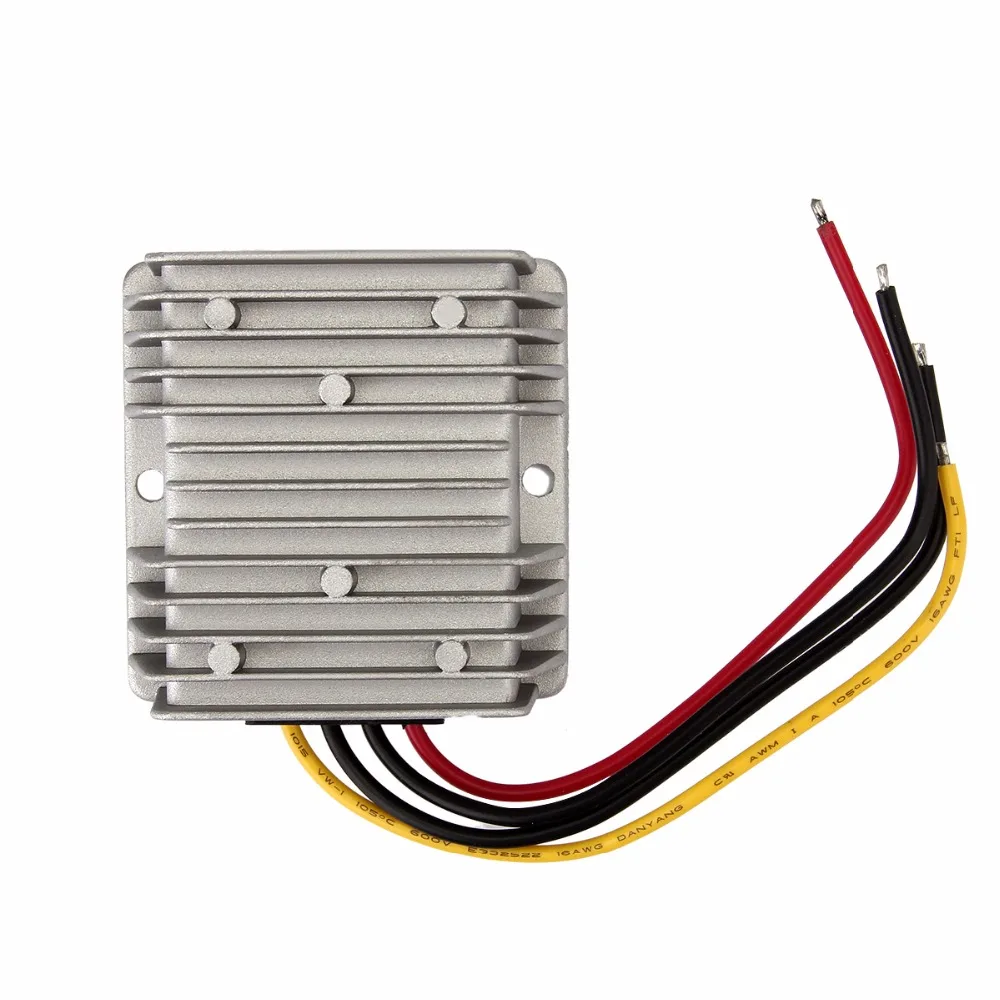

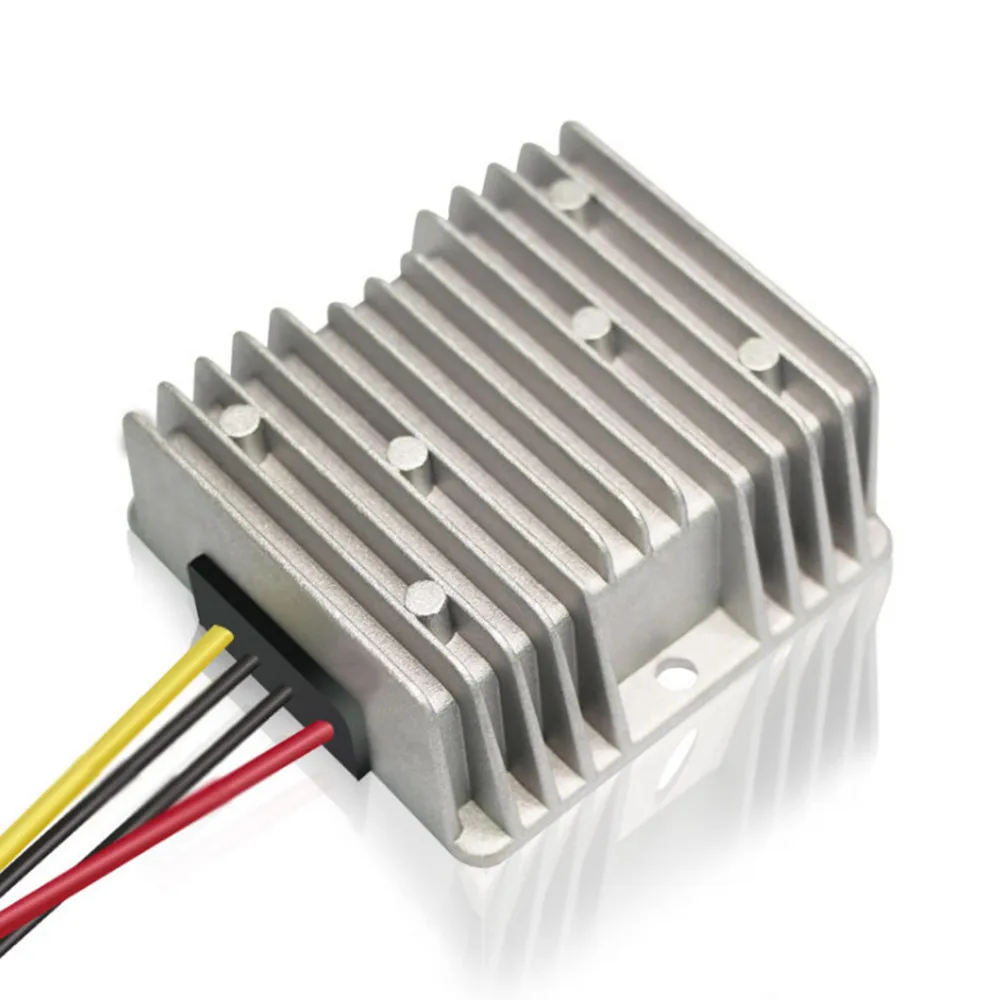

24V to 12V 10A 15A 20A 120W 180W 240W DC DC Converter Buck Transformer Step Down Voltage Module Power Supply for LED Car Solar

Lighting Transformers>>>Lights & Lighting

Brand Name Free_on

Origin CN(Origin)

Plug Type None

Output Voltage 12V

Certification ce

Certification FCC

Certification ROHS

Material Aluminum

Features DC 18V-32V to DC 12V 20A 240W Converter

Output Signal DC

Item Type Lighting Transformers

Warranty 1 Year

Weight 250g

Model Number PWA-0016,PWA-0017,PWA-0018

Input Signal DC

Input Voltage 18V-32V

Max Output Current 10A/15A/20A

Waterproof Rating IP68

Size 74*72*30mm

Operating Temperature -40-+80 Degree

Efficiency >90%

Protection Short-circuit,High-voltage,Low-voltage,Opposite-connection

Color

To 12V 10A 120W

To 12V 15A 180W

To 12V 20A 240W

24V to 12V 10A 15A 20A 120W 180W 240W DC DC Converter Buck Transformer Step Down Voltage Module Power Supply for LED Car Solar

48093

Hot Selling



Features:

*All epoxy sealed containers with waterproof die-cast aluminum housing;*Light compact, convenient to use and transport;*Non-isolated; High efficiency: > 96%;*Operating temperature: -40 ° ~ +80° (max: +80°);*With overload / over-current / over / low voltage protection, stable performance; Auto recovery.Specification:Input Voltage: 24V nominal

Input Range:DC 18V-32VOutput Voltage: DC 12V ±1%Max Output Current: 10A/15A/20A

Ripple:<100mV

No-load Current<0.02A

Line Regulation:±0.02%

LoadRegulation:±0.02%

Efficiency: >90%

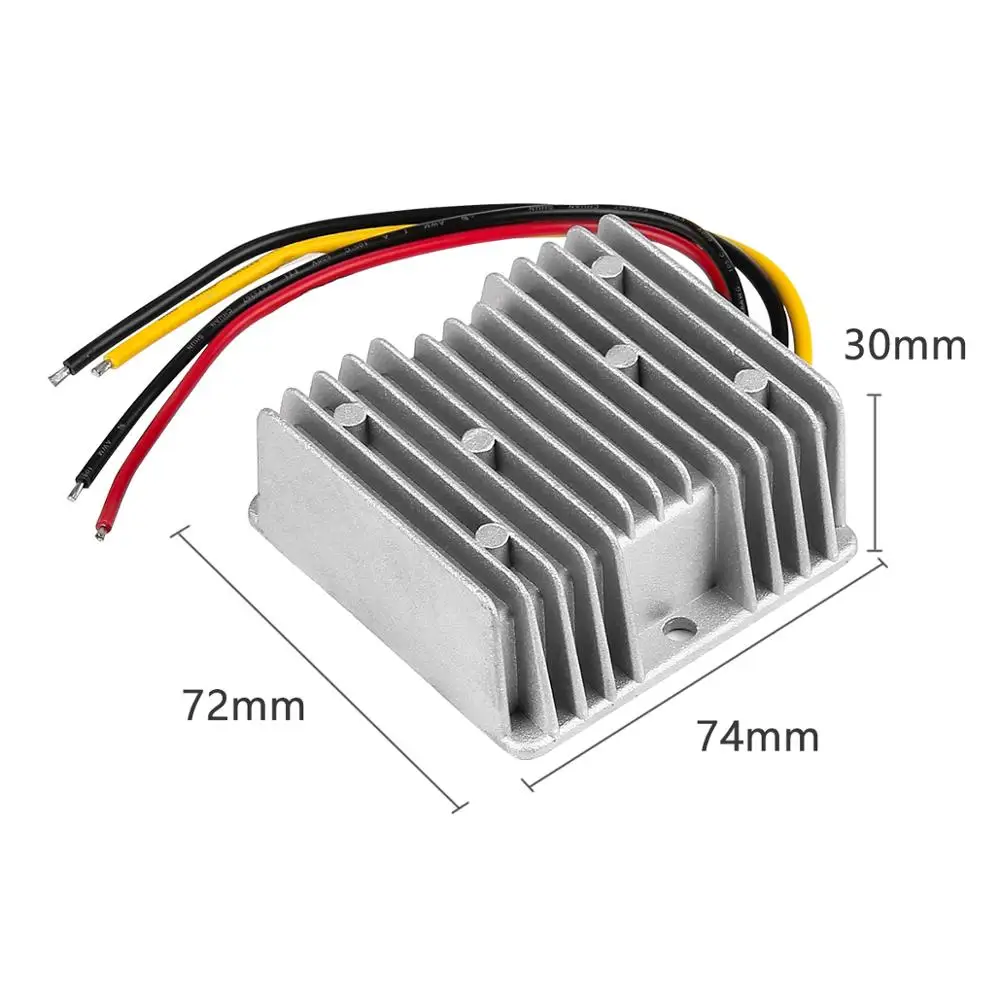

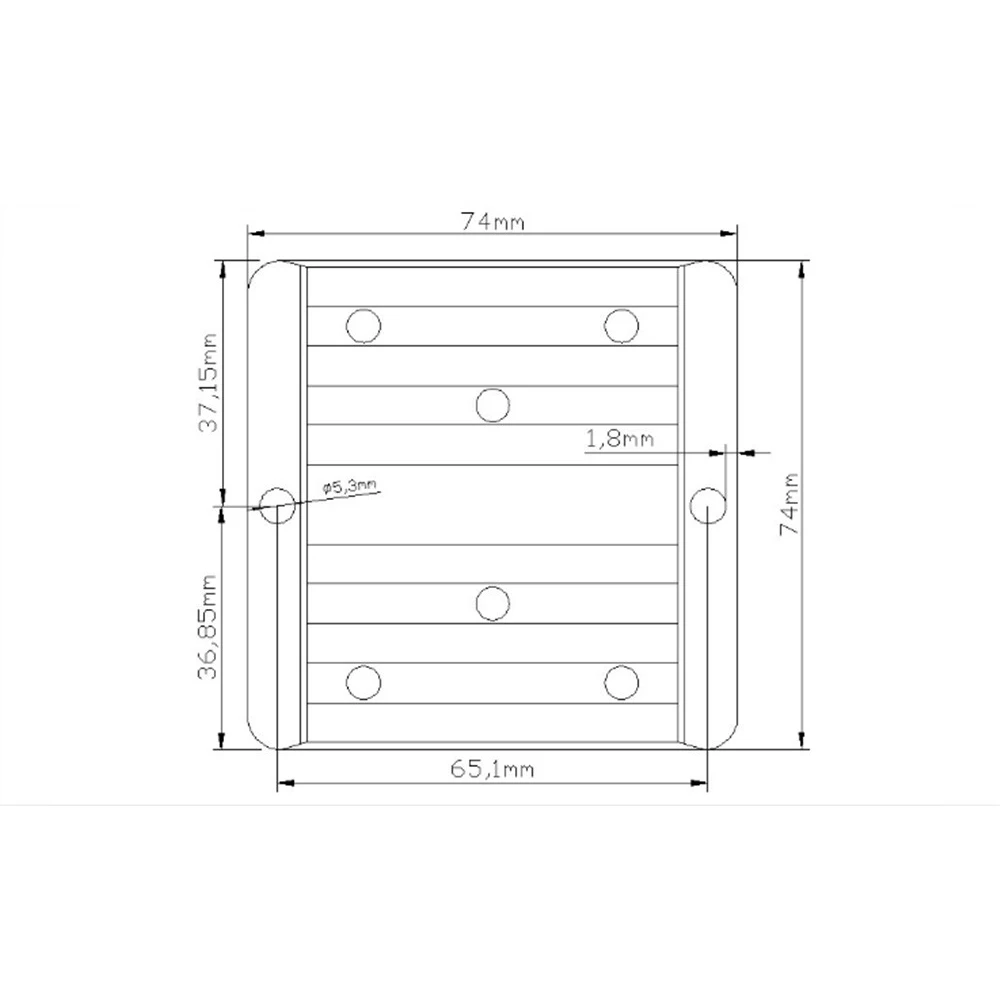

Size: 74mm x72mm x 30mmWaterproof:IP68

Package Include:

1*DC-DC Converter
